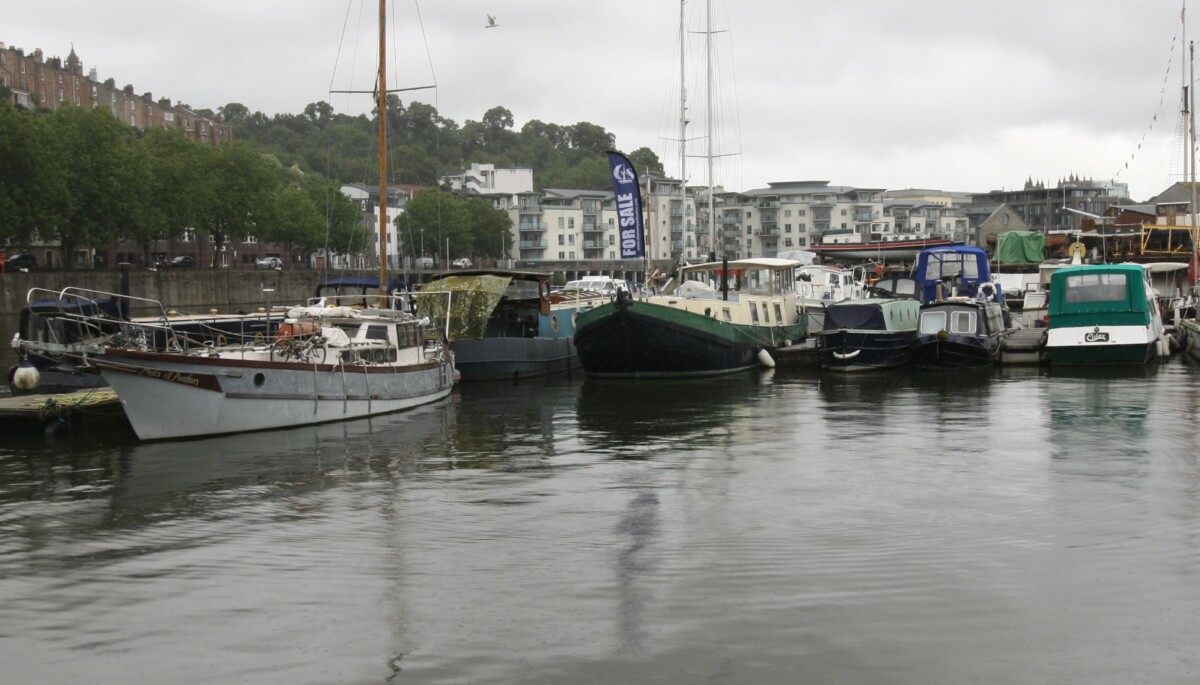

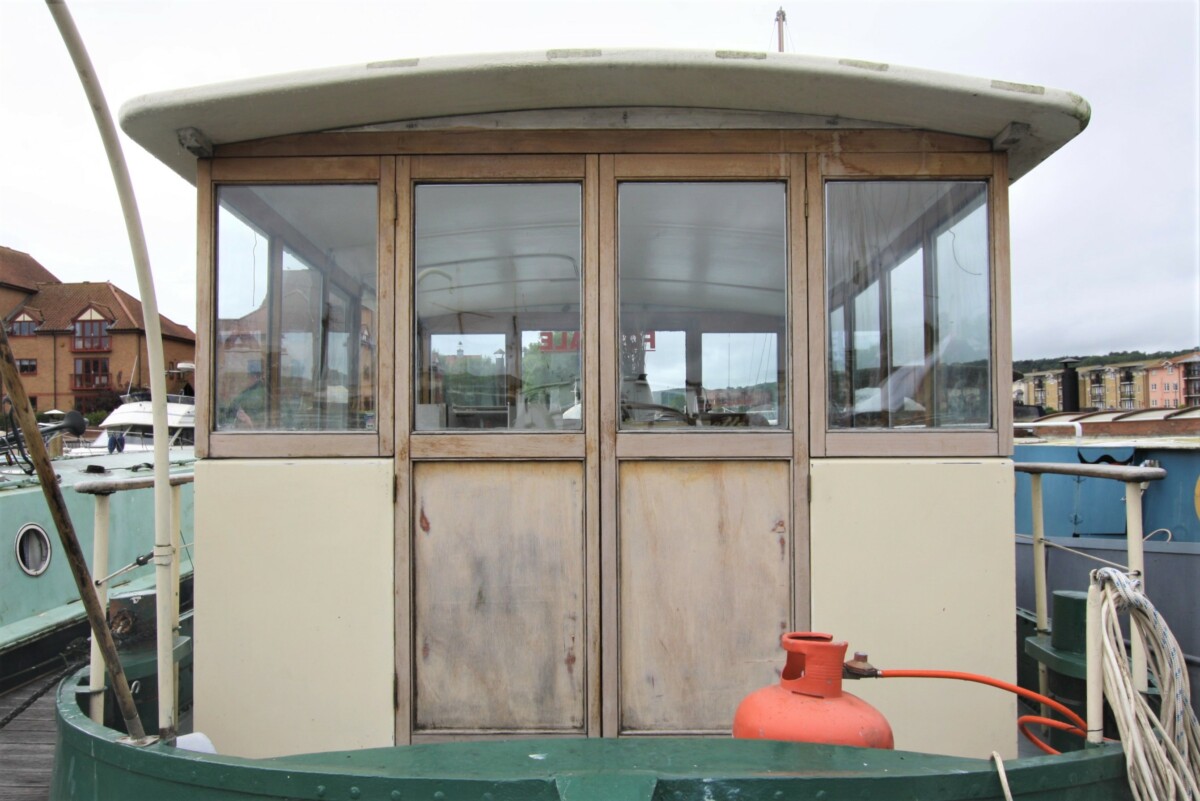

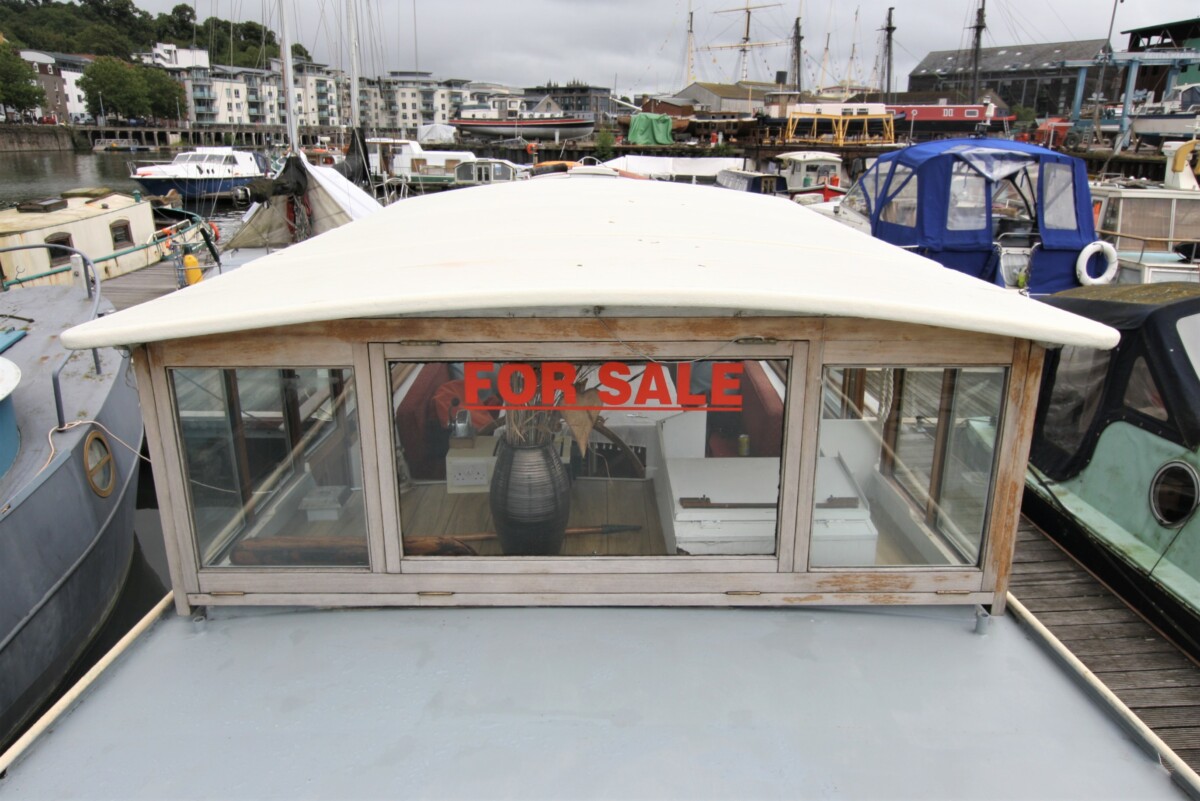

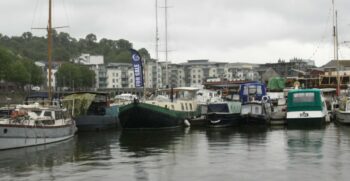

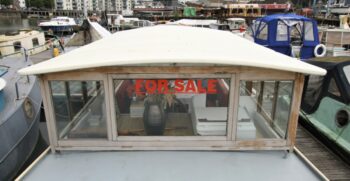

Dutch Barge (Rietaak Model) Originally built for shipping the end product of Reed & Willow. This shallow drafted Barge has been converted & now provides a very comfortable liveaboard or Cruising home. Her large wheelhouse roof is sectional & lowers to give a lower air draught. Rear double doors to the stern. Large open plan saloon / galley. Wet room to the master bedroom. “Josette” is offered for sale complete with a Residential Marina mooring subject to application to the Marina operators. Full marina facilities including electric hook up, parking, showers & WC as well as laundry facilities. Excellent access to Bus & railway links nationwide from Bristol Temple meads station only 15 minutes walk away. M5 & M4 corridor within 15 minutes potentially.

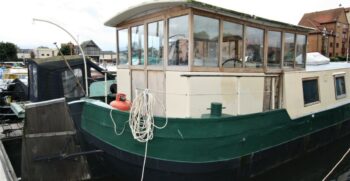

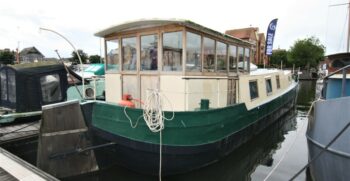

15m Dutch Barge – ”Josette”
Rietaak Dutch Barge – Built 1893

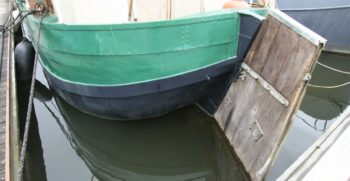

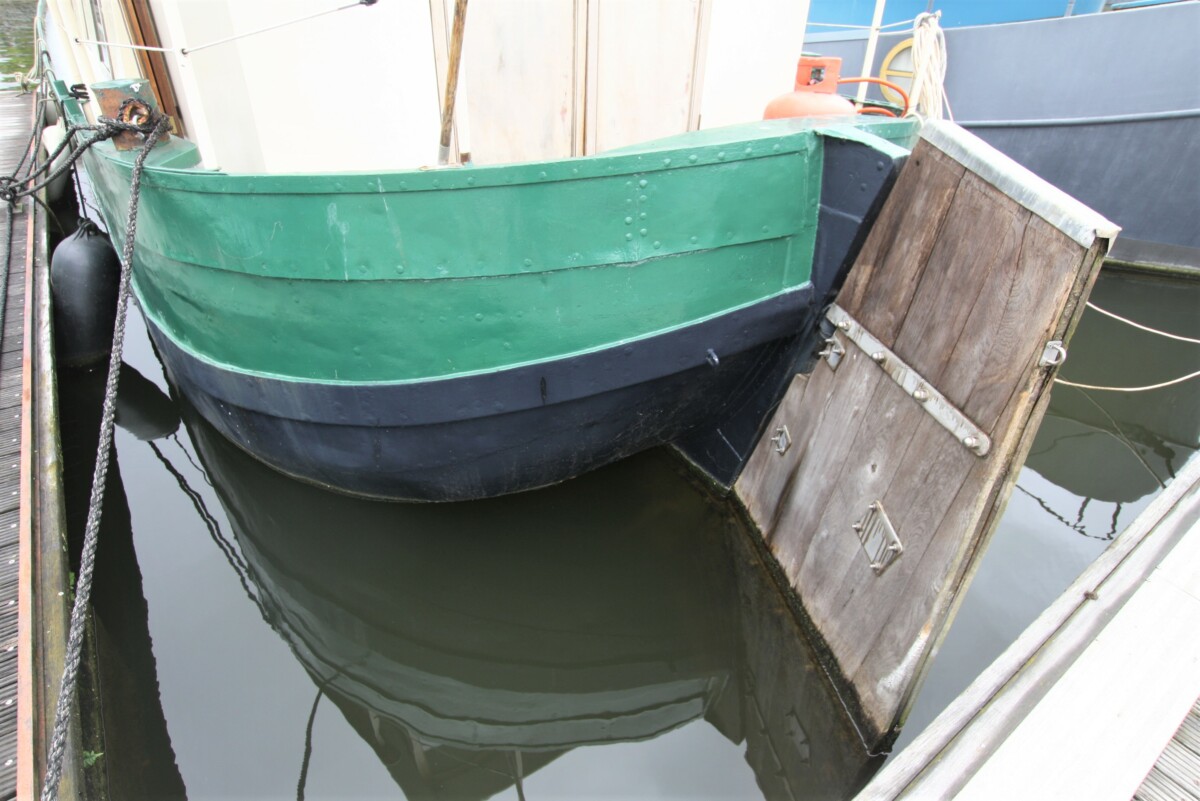

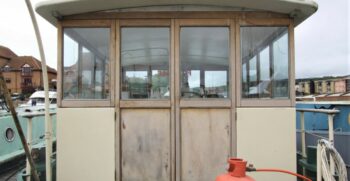

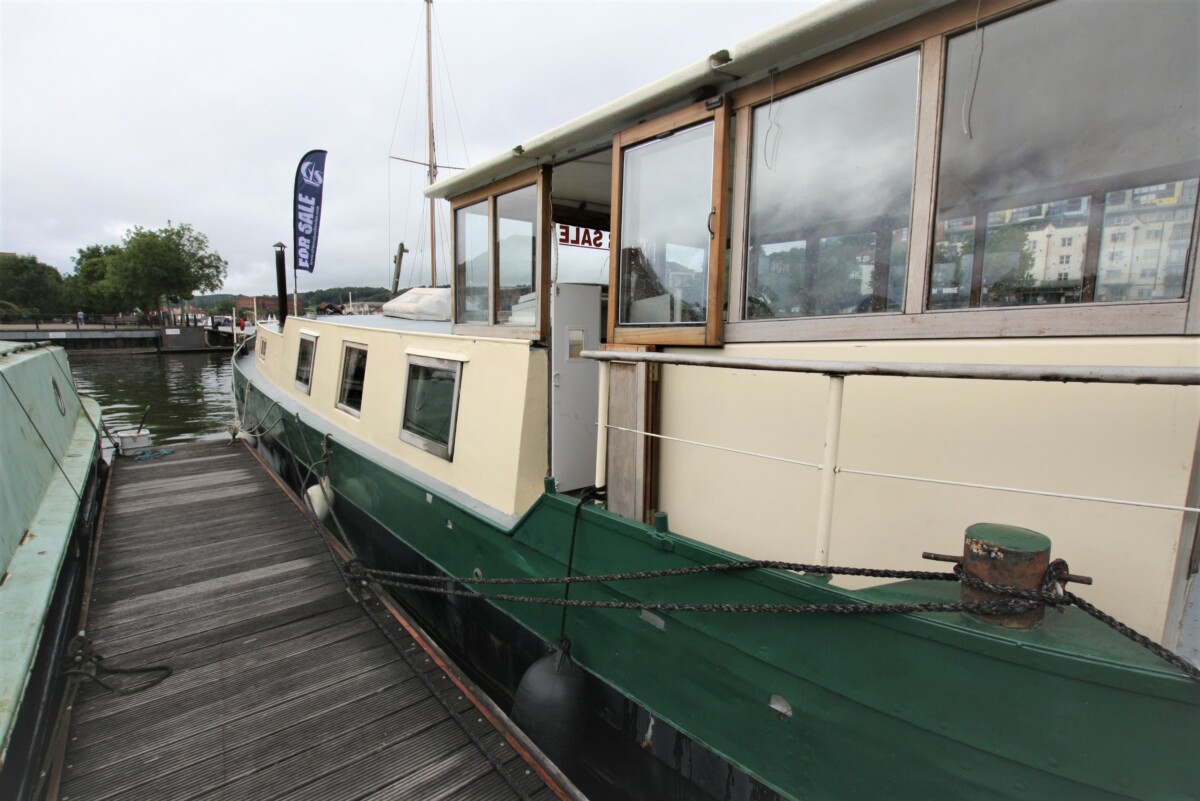

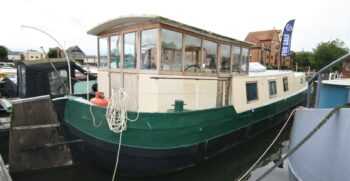

Riveted Iron round bilge/flat bottom hull, Steel superstructure & wooden removable /sectional glazed wheelhouse. Aft engine room & stern hung Teak rudder operated by chain & Universal joints. It is believed that Over plating has been carried out below the waterline.
Please note that all dimensions / measurements are approximate & no guarantee can be given.
Length: 49’3″ / 15m Length at Waterline: 44’4″
Beam: 13’2″ / 4m
Draft: 2′ / 0.6m

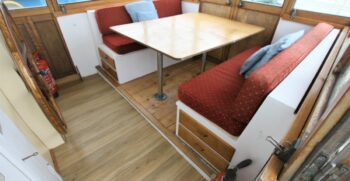

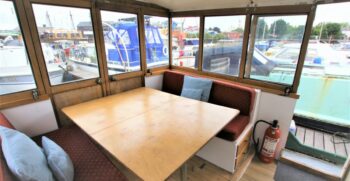

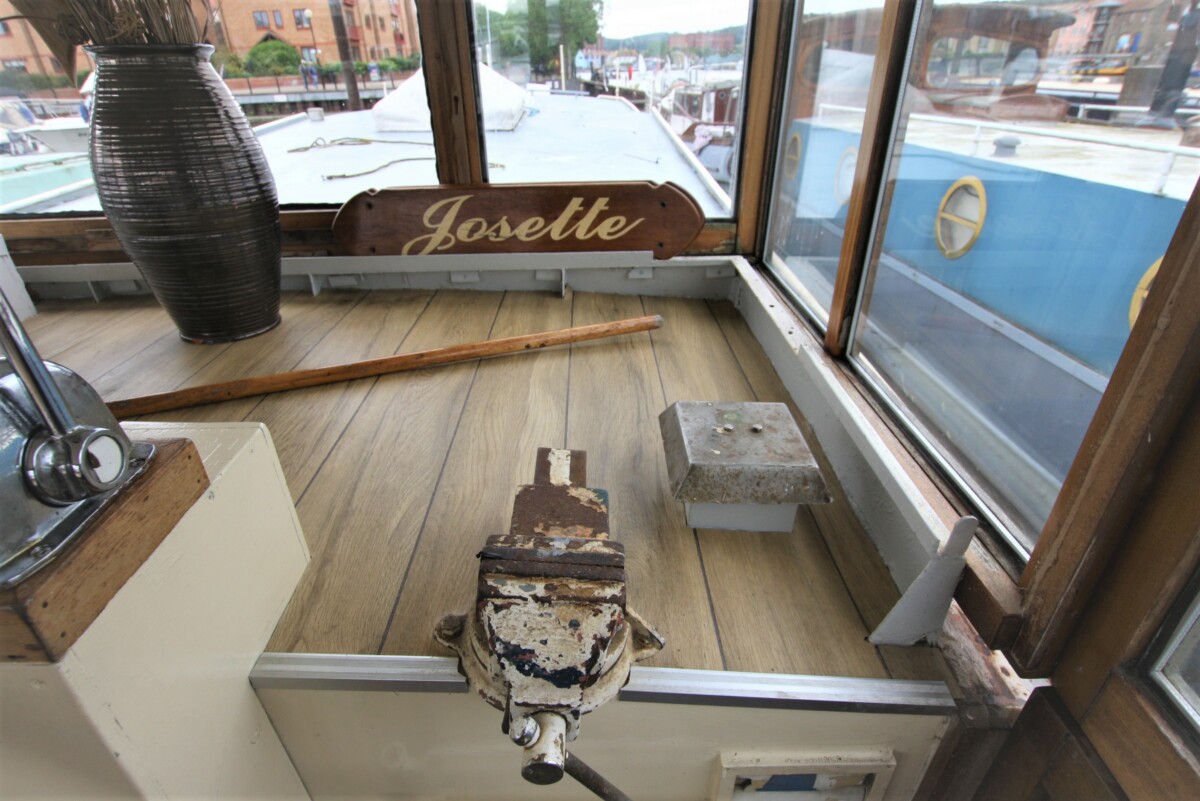

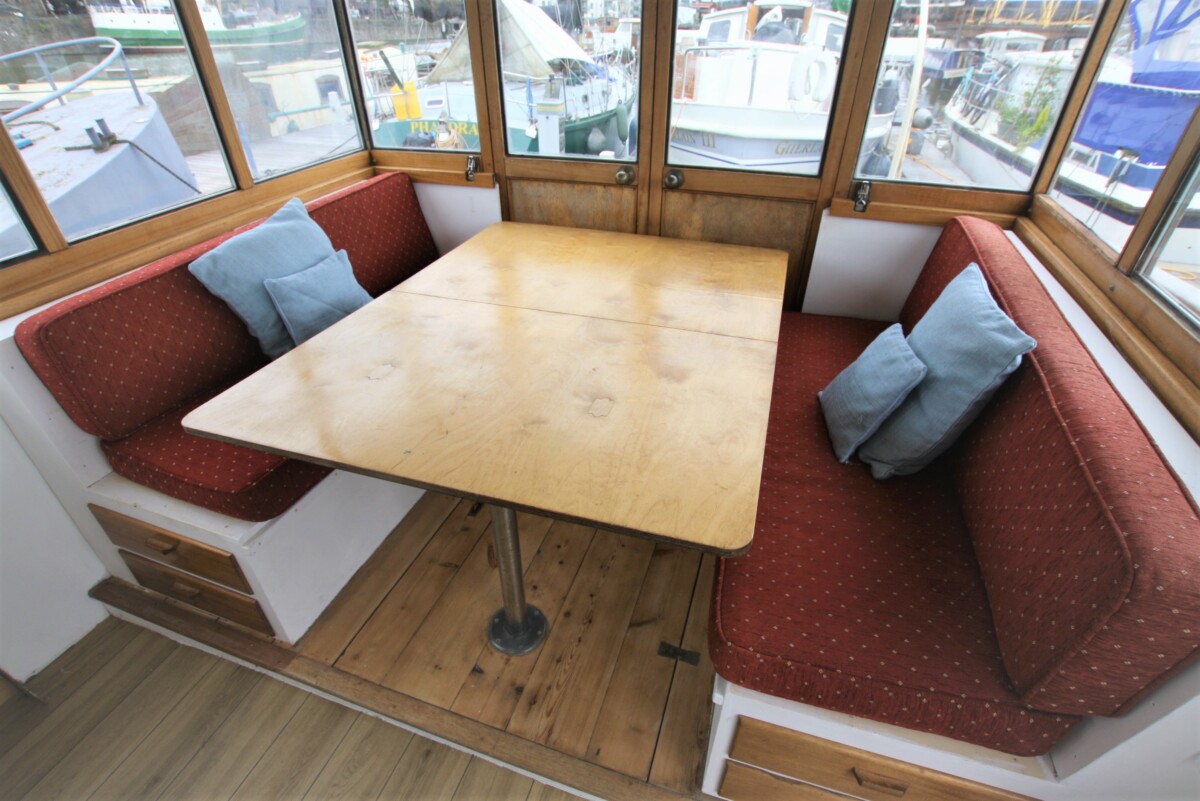

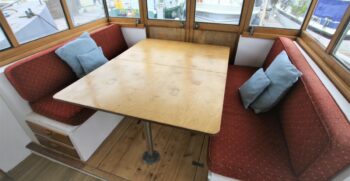

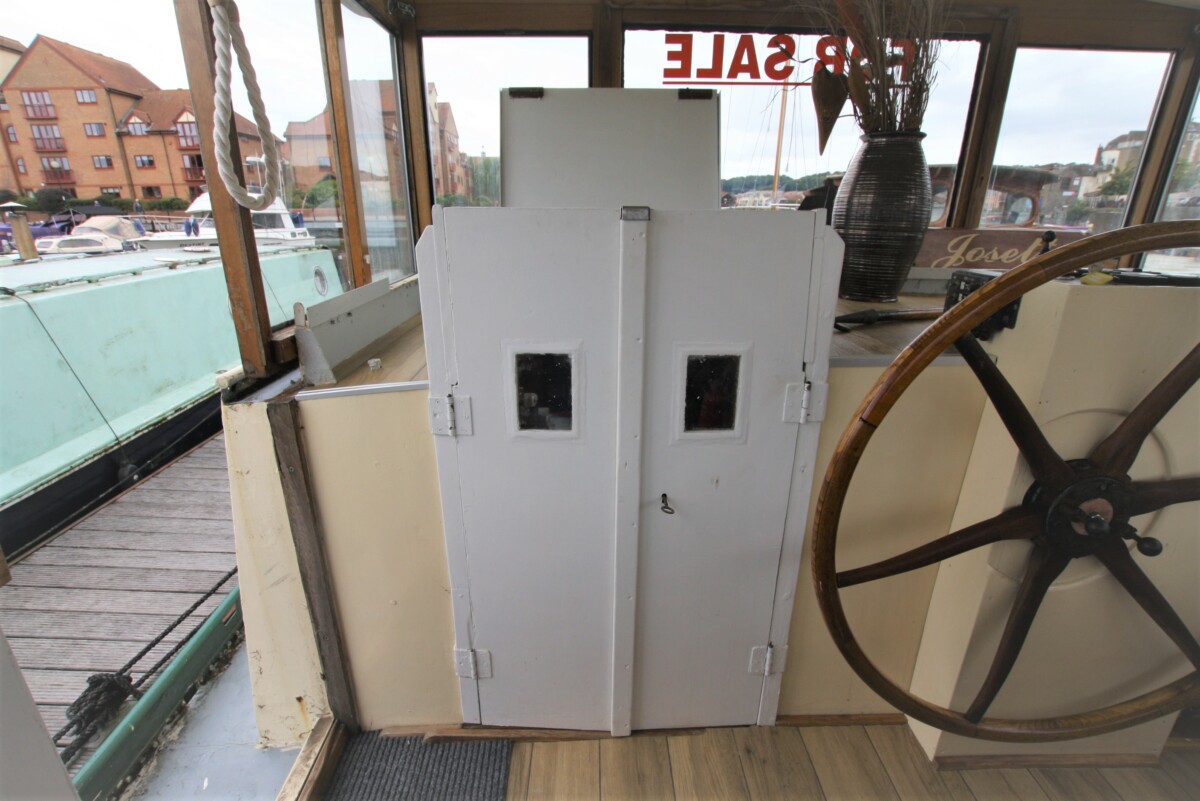

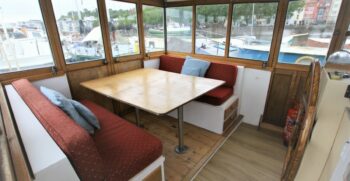

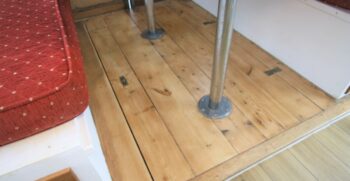

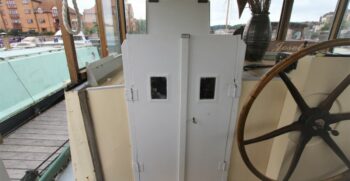

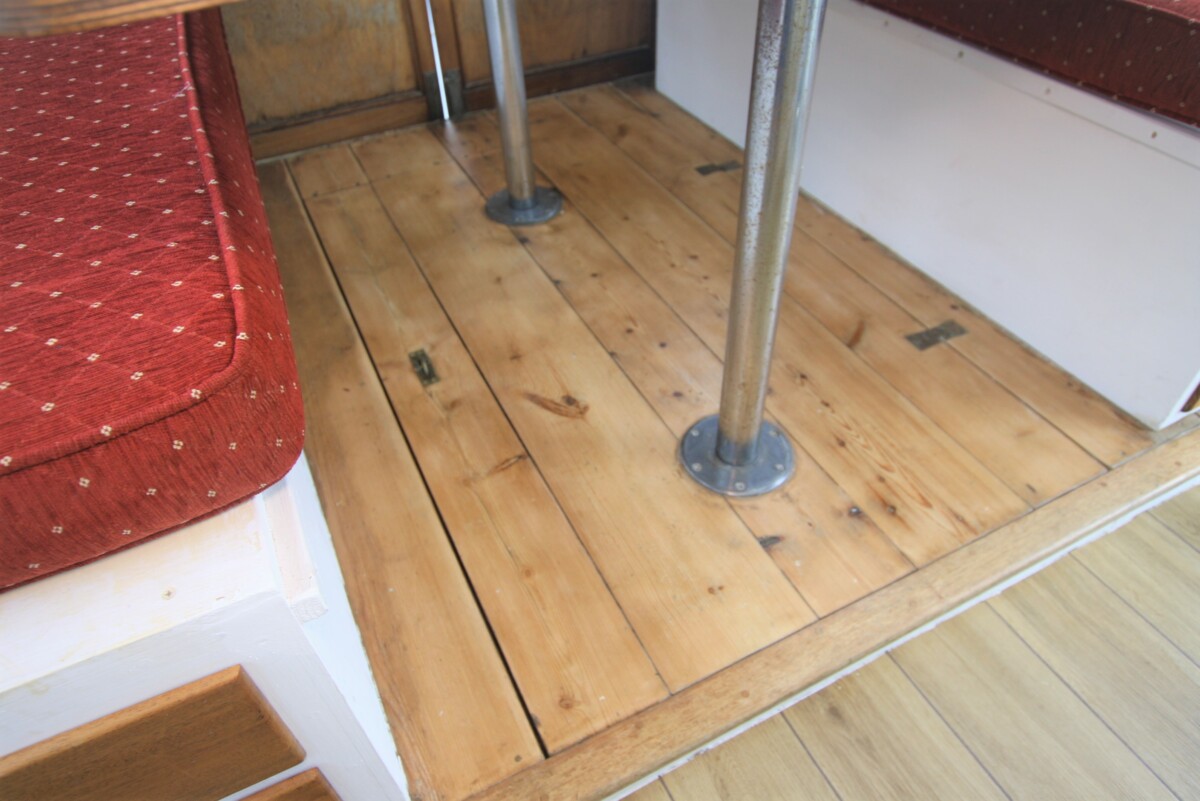

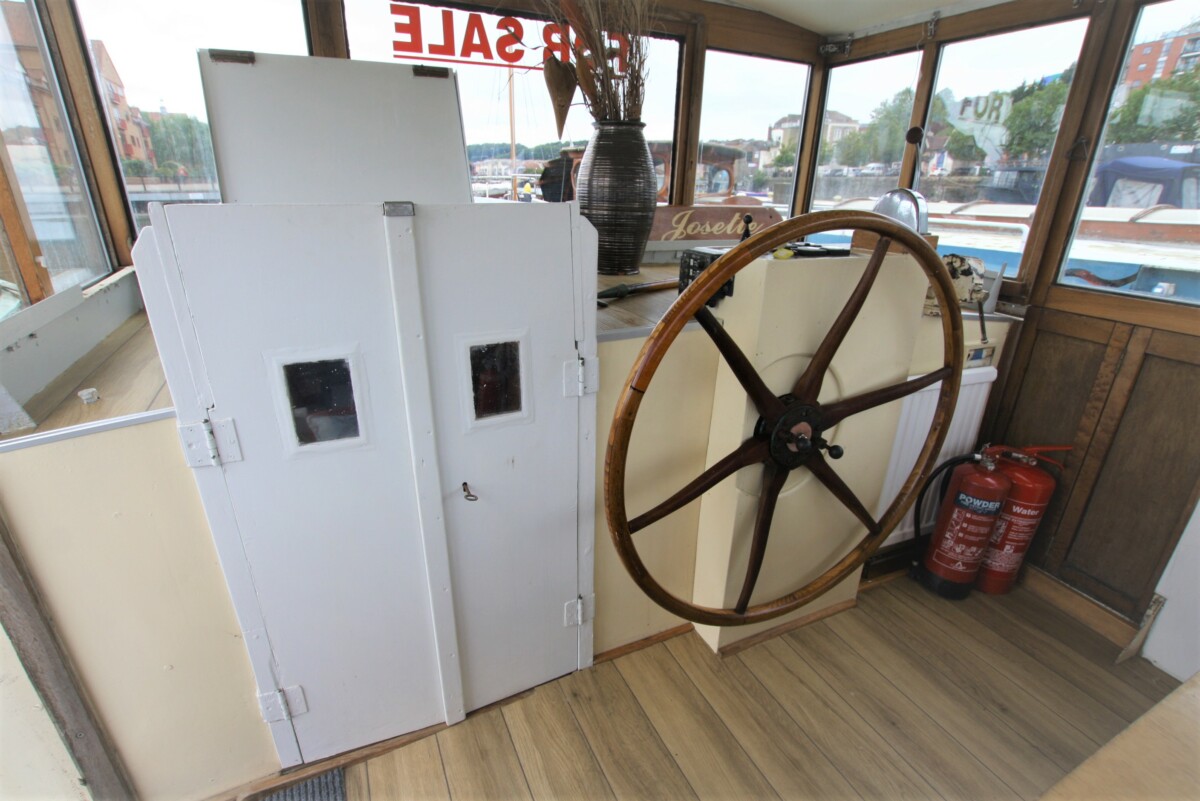

Wheelhouse: 3.32 x 2.33 /dining table: 1.55 x 1.375 & seating is approx 1.380 x 440 & 360 degree panoramic views.
Galley Headroom: 1.79 / 2.63 long x 3.03 wide
Saloon Headroom: 1.81 / 2.76 long x 3.03 wide.
Shower & Heads:1.81 / 1.65 long x 0.89 wide.
Overall length of open plan lounge / galley: 5.43 x 3.03 wide.
Master bedroom: 1.79 headroom / 2.35 long x 3.09 wide.
Master bedroom: 2.35 long x 3.09 wide.
Single Volvo Penta MD47B / 6 cylinder approx 125hp Inboard Diesel engine. Naturally aspirated & shaft drive. Believed to have been Re-engined during the 1970s.

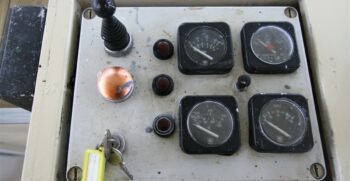

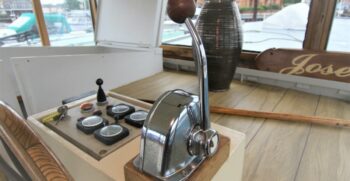

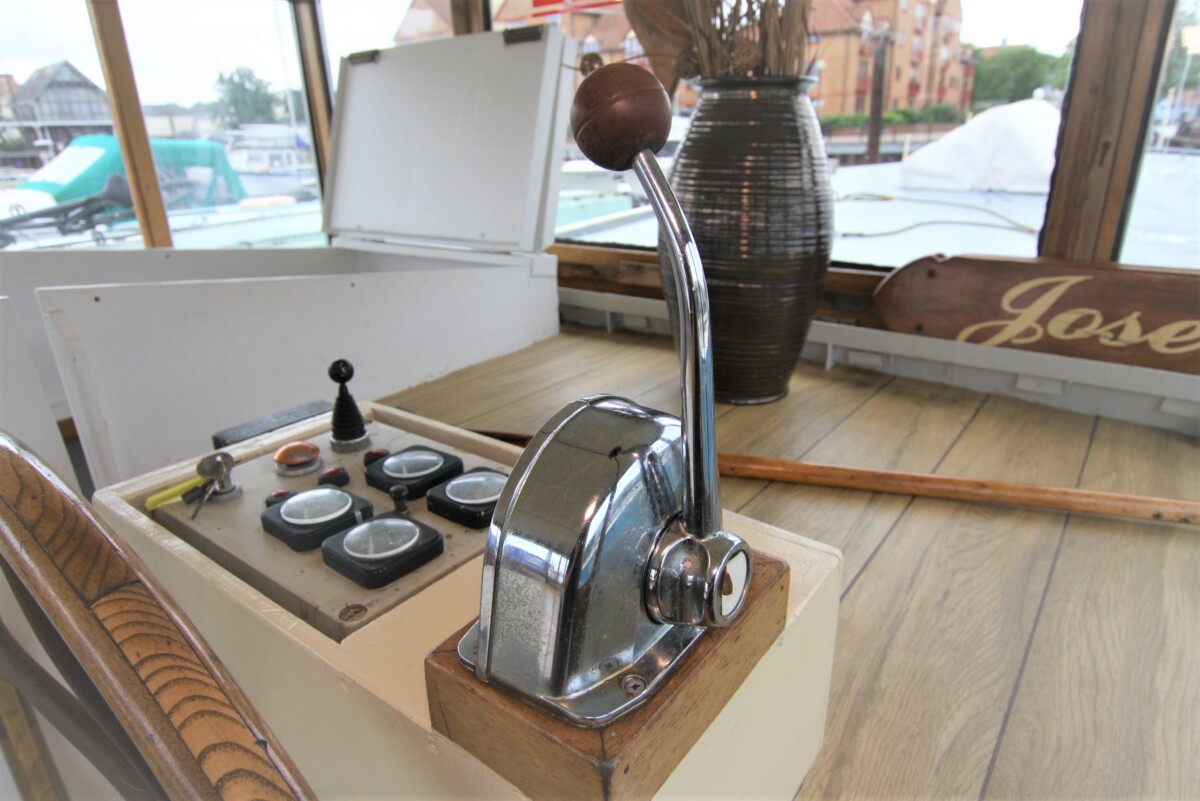

Engine Oil pressure gauge / Engine Temperature gauge / Volt meter / Engine shut off / Instrument light switch. At helm station.
Engine hours as of 28th July 2023 / 03249
Paragon T33 Hydraulic 2:1 reduction gearbox. 22″ x 15″ 3 blade Bronze propeller.
Engine cooling is raw water cooled & with Vetus type water strainer with gate valve/ seacock.
Portside steel fuel tank supplies diesel to heating boiler fitted within the saloon. approx dimensions & capacity 53 gallons / 242l
Starboard steel fuel tank supplies the engine & approx dimensions & capacity 97 gallons / 444l
Stainless steel Freshwater tank with approx dimensions & capacity 73 gallons / 334l
Located within engine room & to the forward bulkhead.

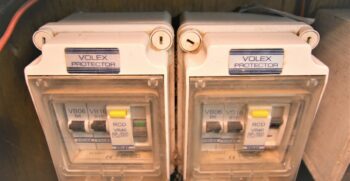

1x Wylex R.C.D Unit

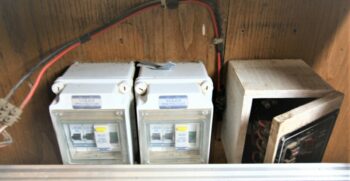

Dual RCD outlets behind companion way steps to saloon. These protect the 240v lighting & socket outlets throughout. Please note this has not been tested by CYS & we would advise this system to be tested by a qualified electrician.
6 x 12 v Batteries (3 to port & 3 to Starboard) with wooden lids & securing straps.
12v isolator with change over positions for 12v / mains/ Inverter.

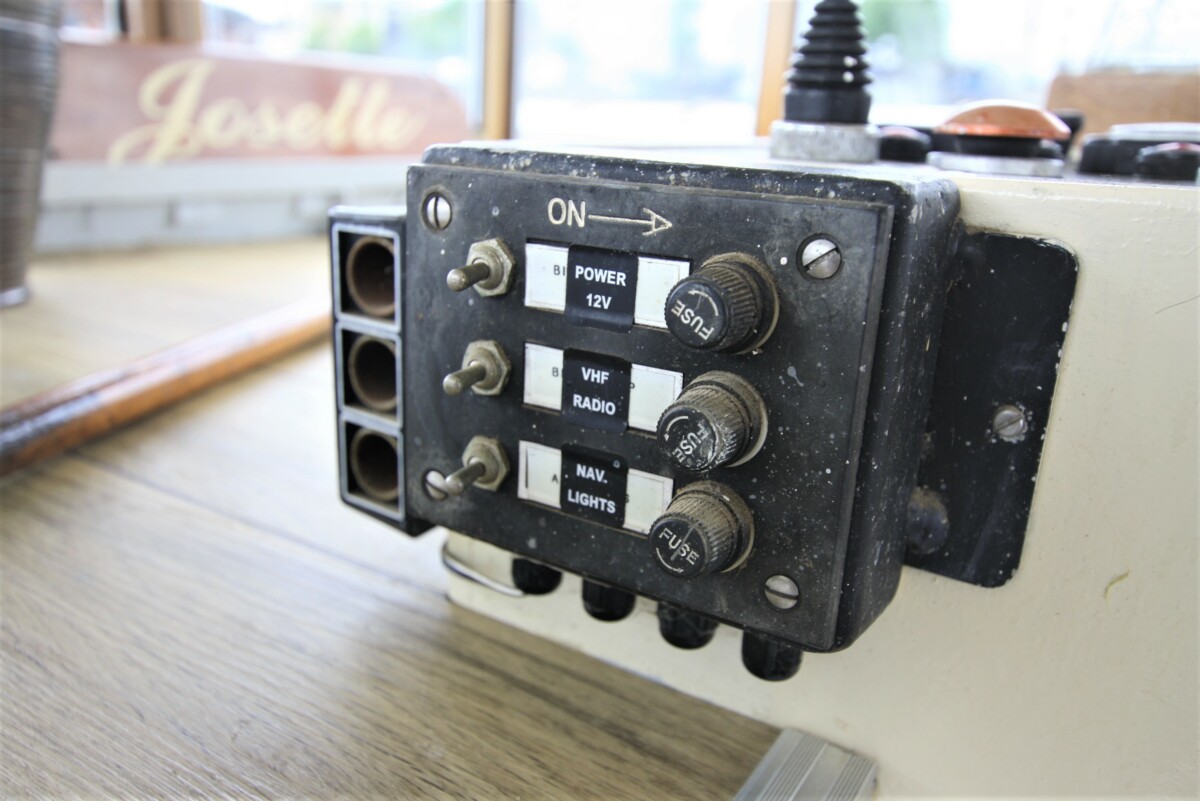

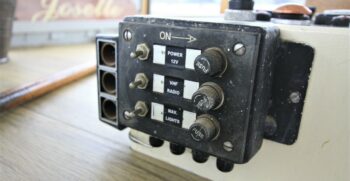

3 gang fused switch panel to helm comprising: 1 x 12v power on switch / 1 x vhf radio: Note radio not supplied or fitted / 1 x navigation lights & 3 x cigarette style outlet sockets.

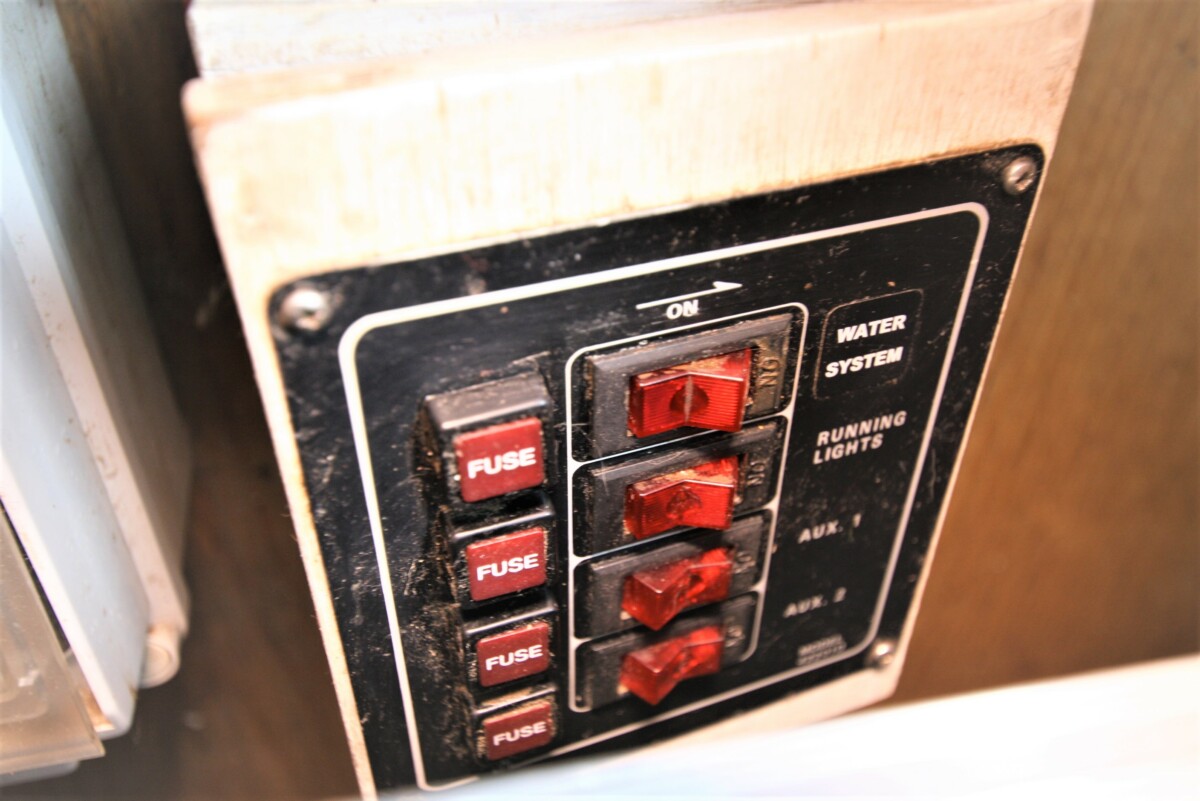

4 gang fused switch panel located behind companion way steps to saloon. Comprising: 1 x Pressurised water system switch/ Running lights /Aux 1 /Aux 2

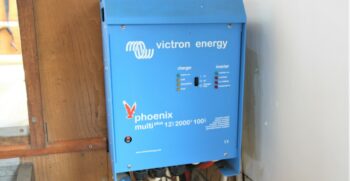

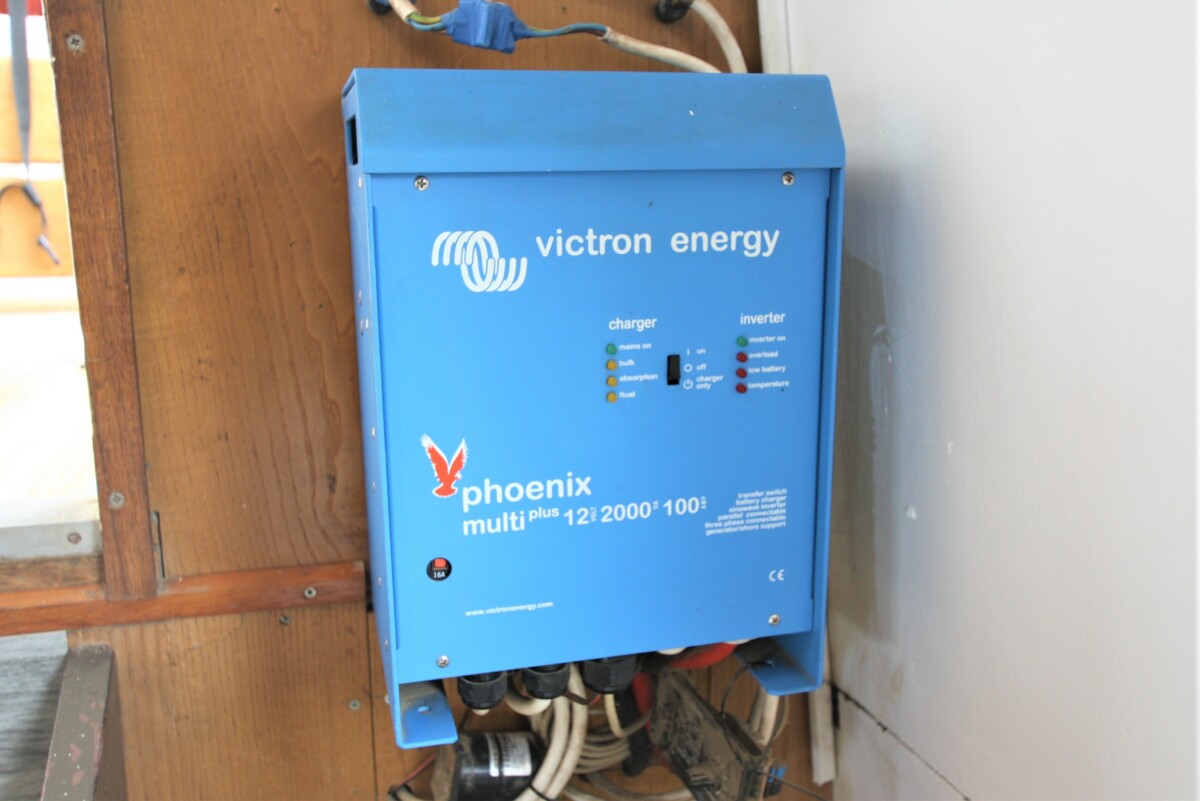

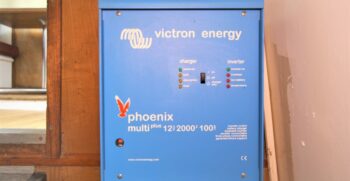

Victron Pheonix Multi plus 12v Charger / Inverter.

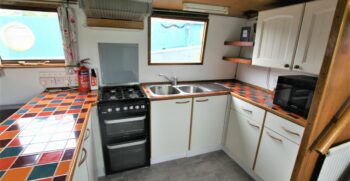

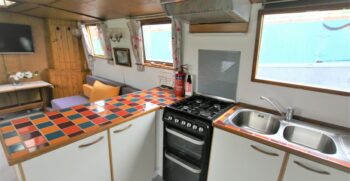

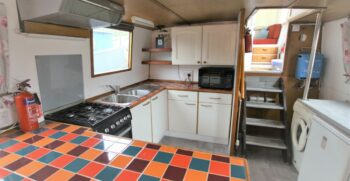

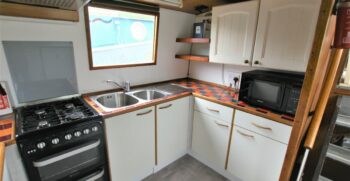

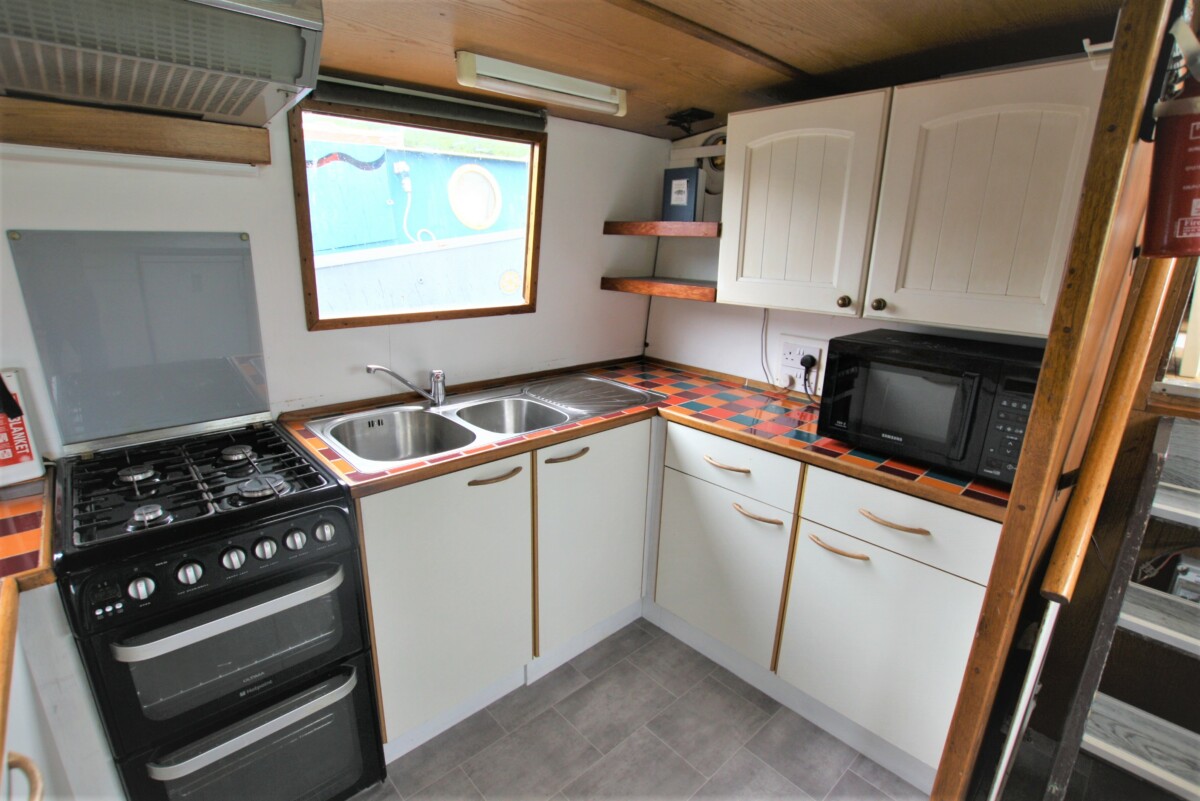

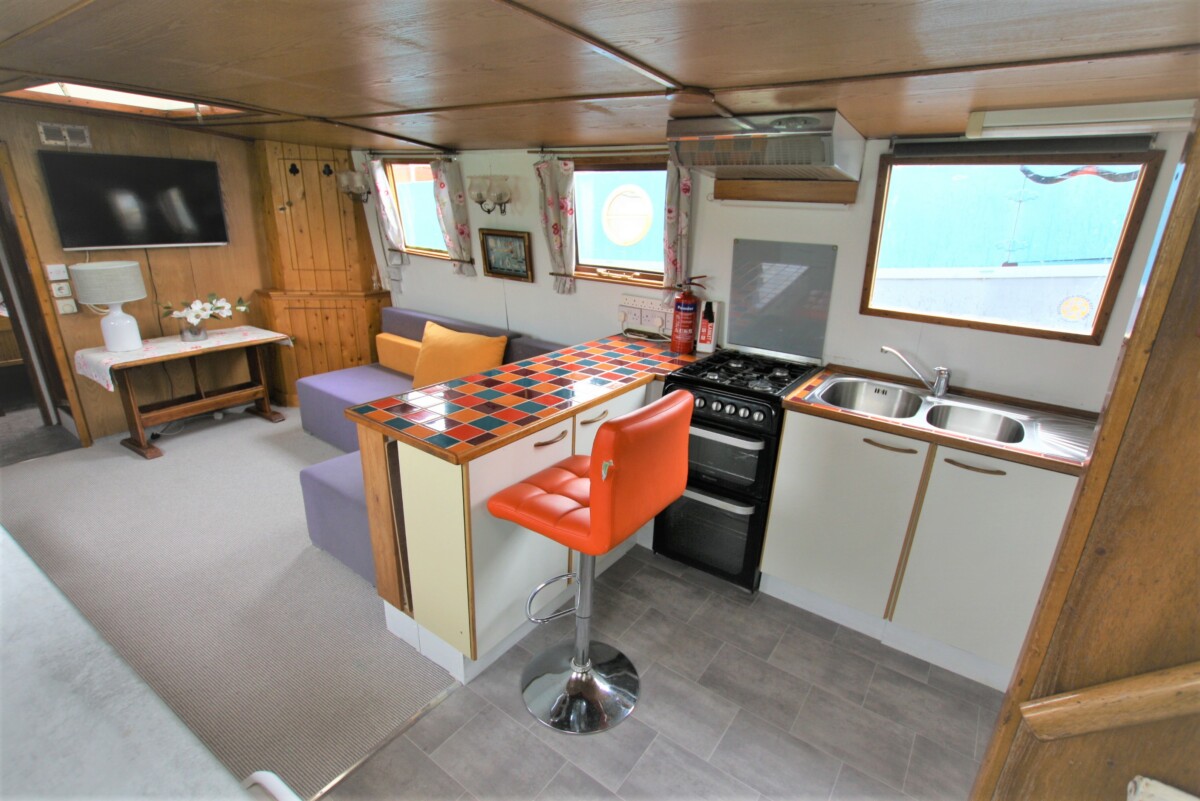

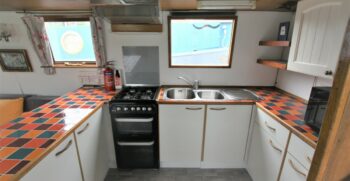

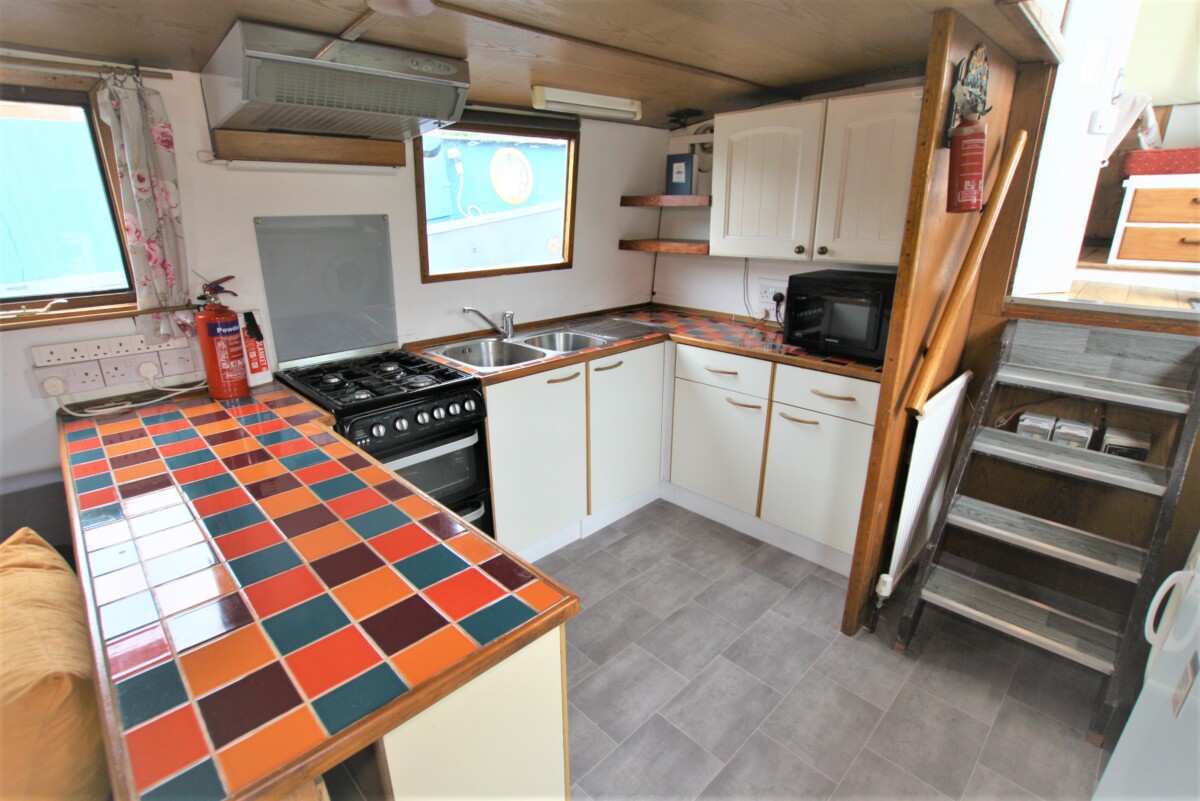

Accessed from portside of wheelhouse. Light switch to port with glass fluted wall mounted 240v light fitting. U-shaped galley with plenty of natural light, white painted ply panelled walls. Natural wood panelled deck head.

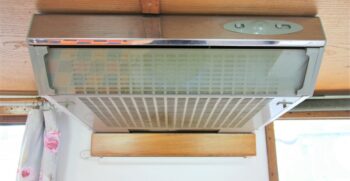

Cooker hood over Hob / 240v (Not tested) mains strip light over sink unit.

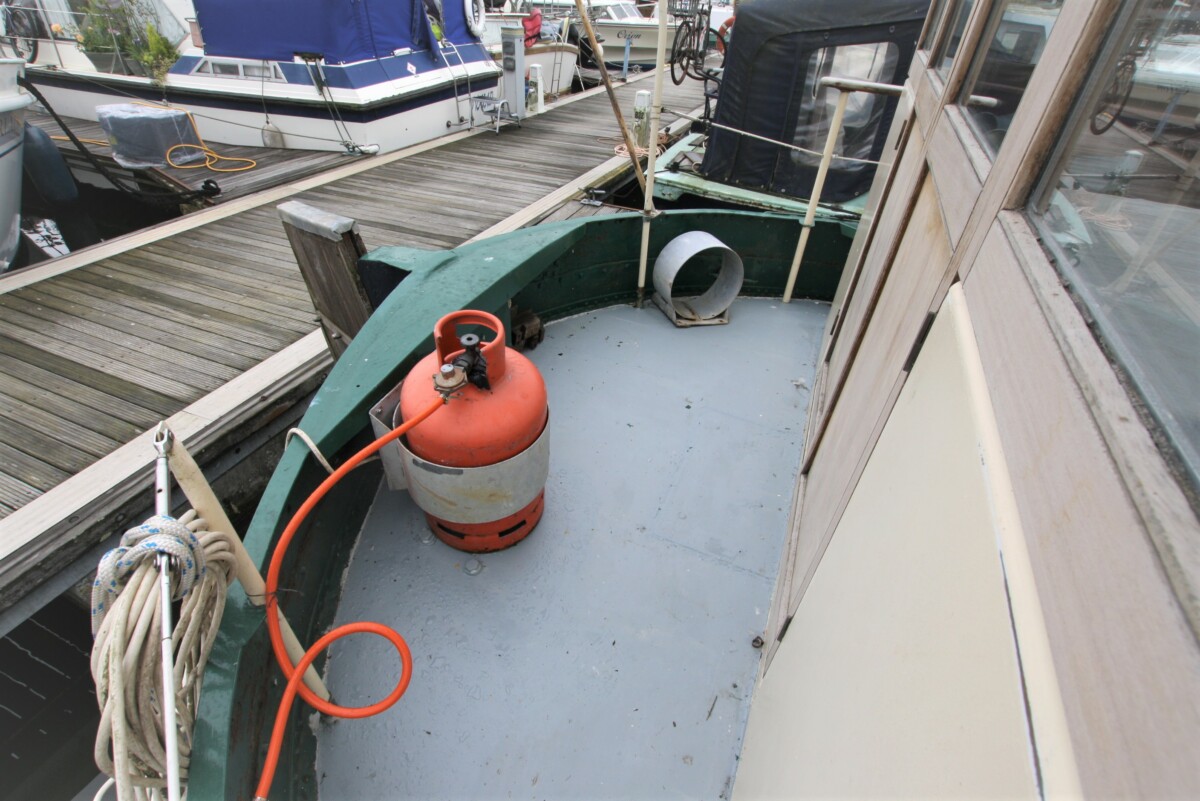

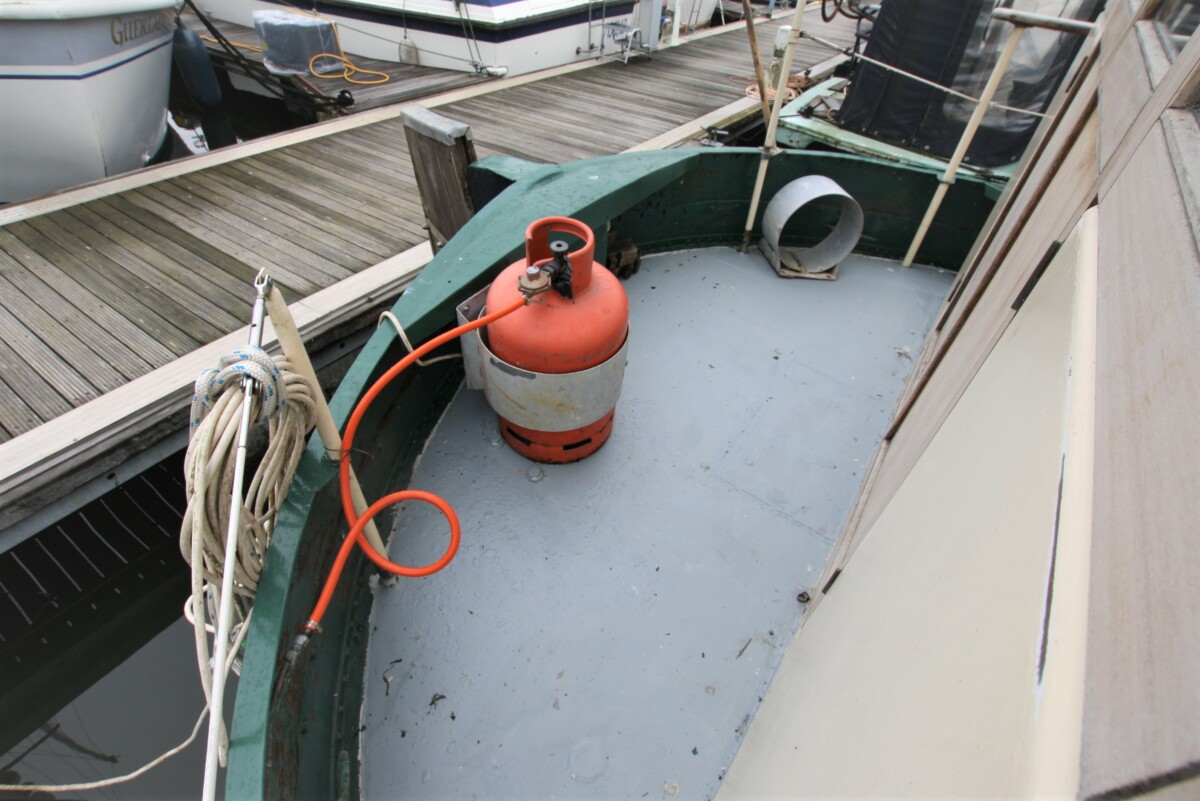

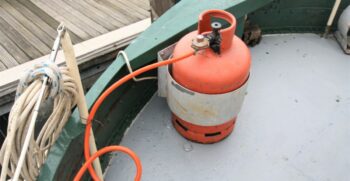

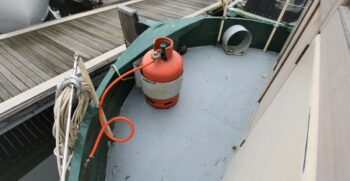

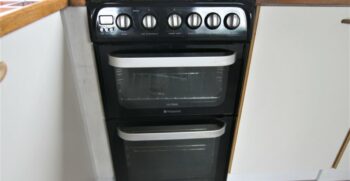

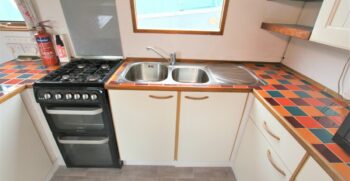

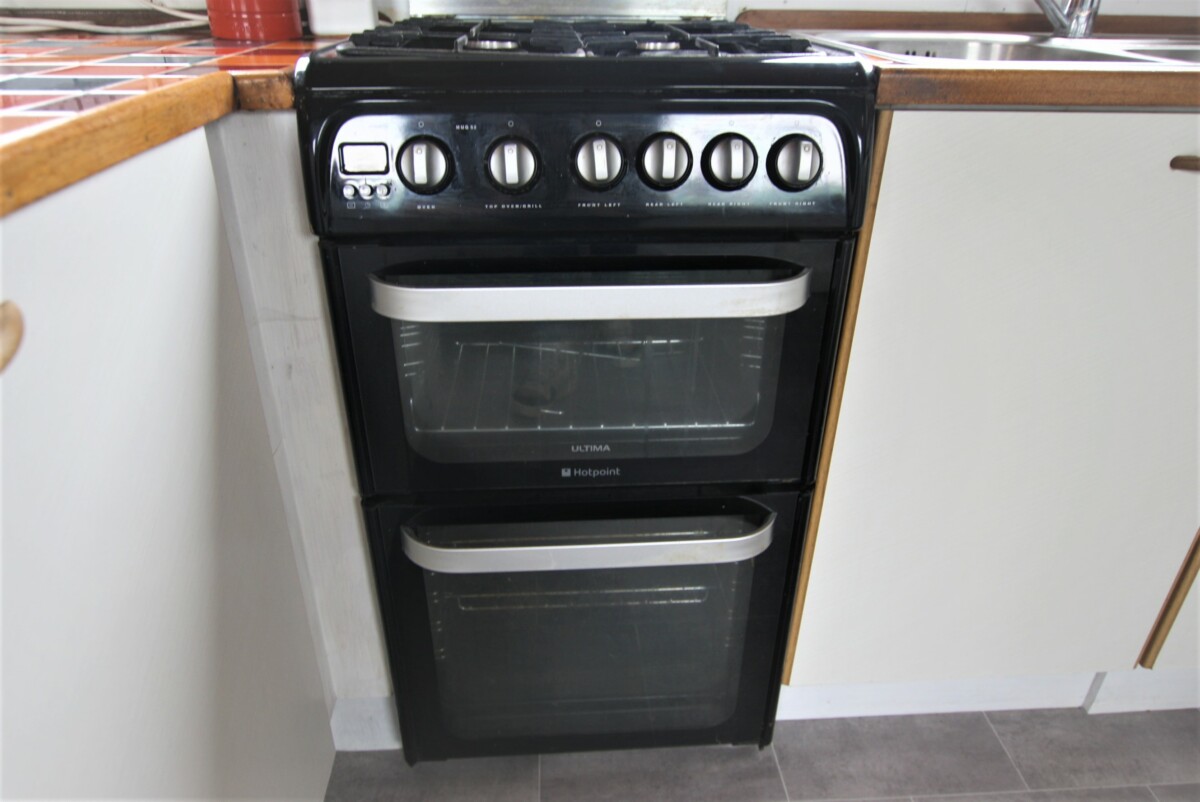

Hotpoint Ultima Twin Oven /Grill & 4 burner hob. Operable from 1 x 13kg Propane gas cylinder secured to stern.

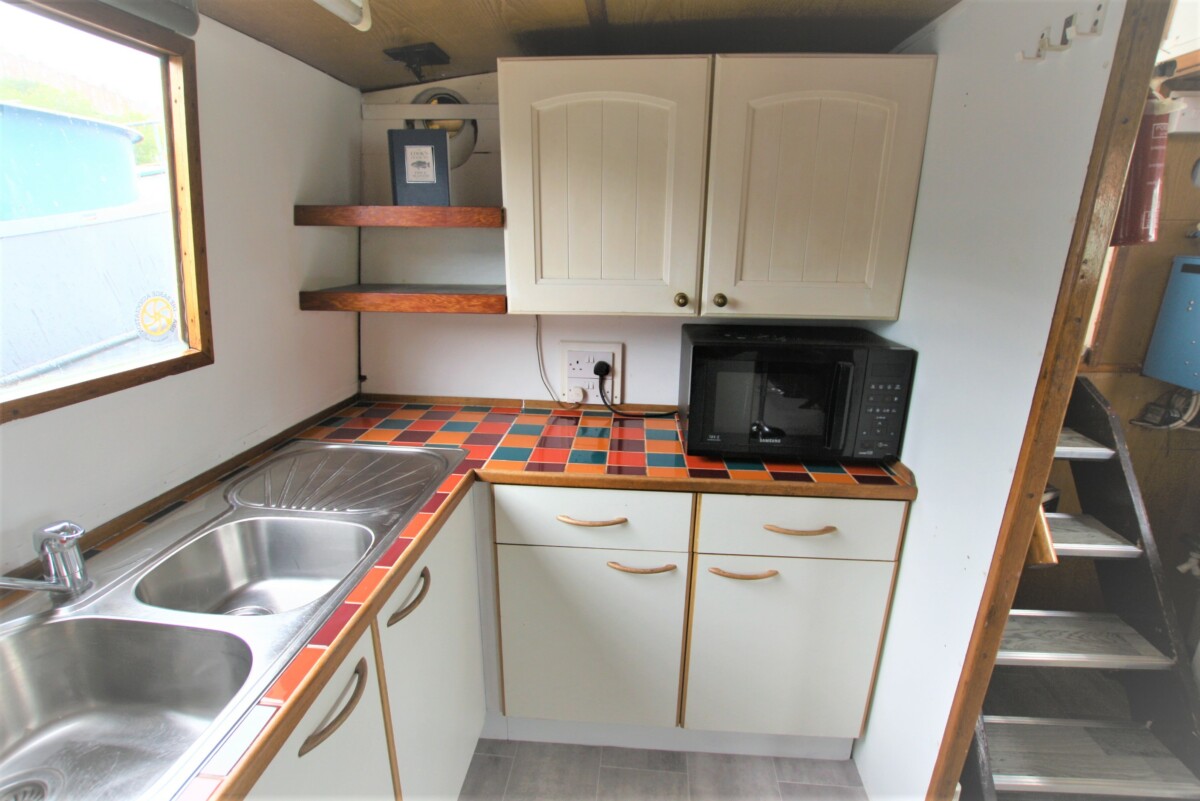

1000mm base unit with multi coloured ceramic tiled worktop / storage beneath. Two 240v double outlets.
1000mm base unit with Multi coloured ceramic work top/ two drawers & storage beneath & twin 450mm overhead storage units. adjacent shelving.
Two 240v double socket outlets.
Samsung 800 Micro wave.

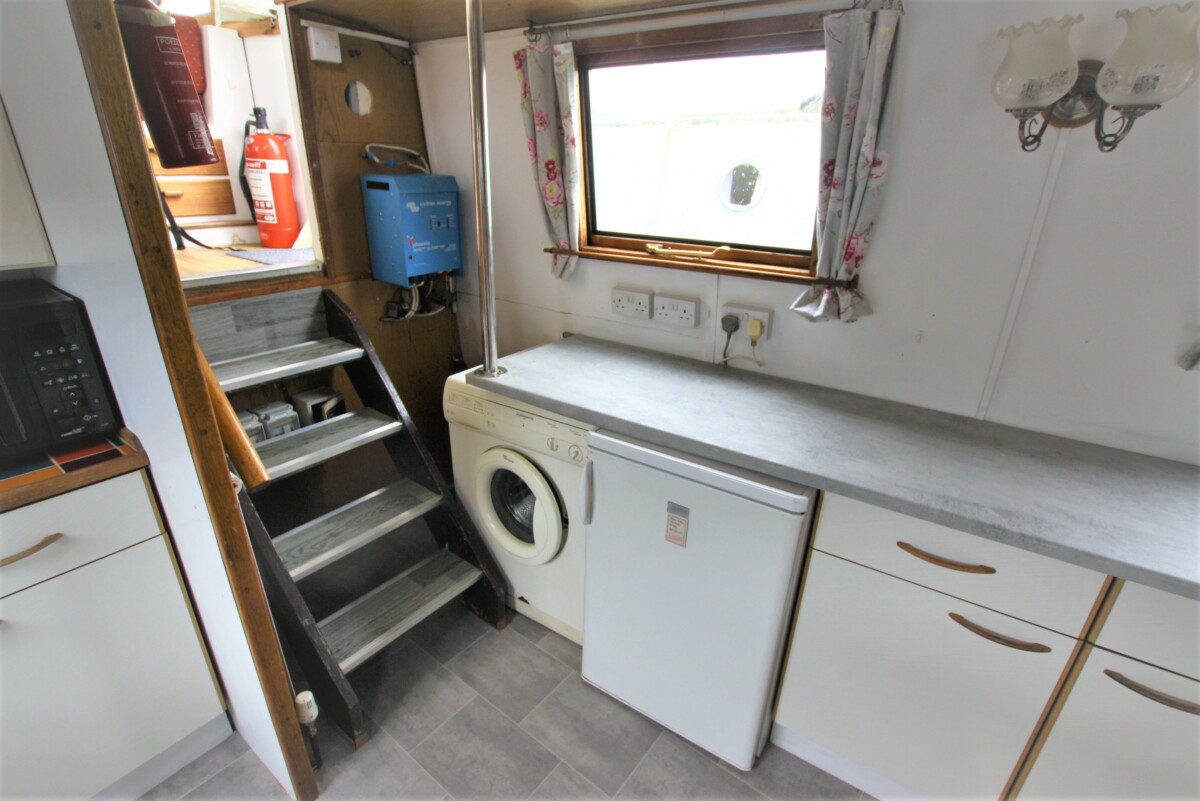

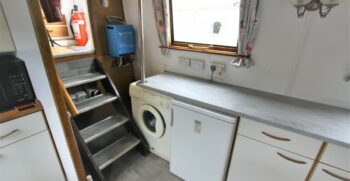

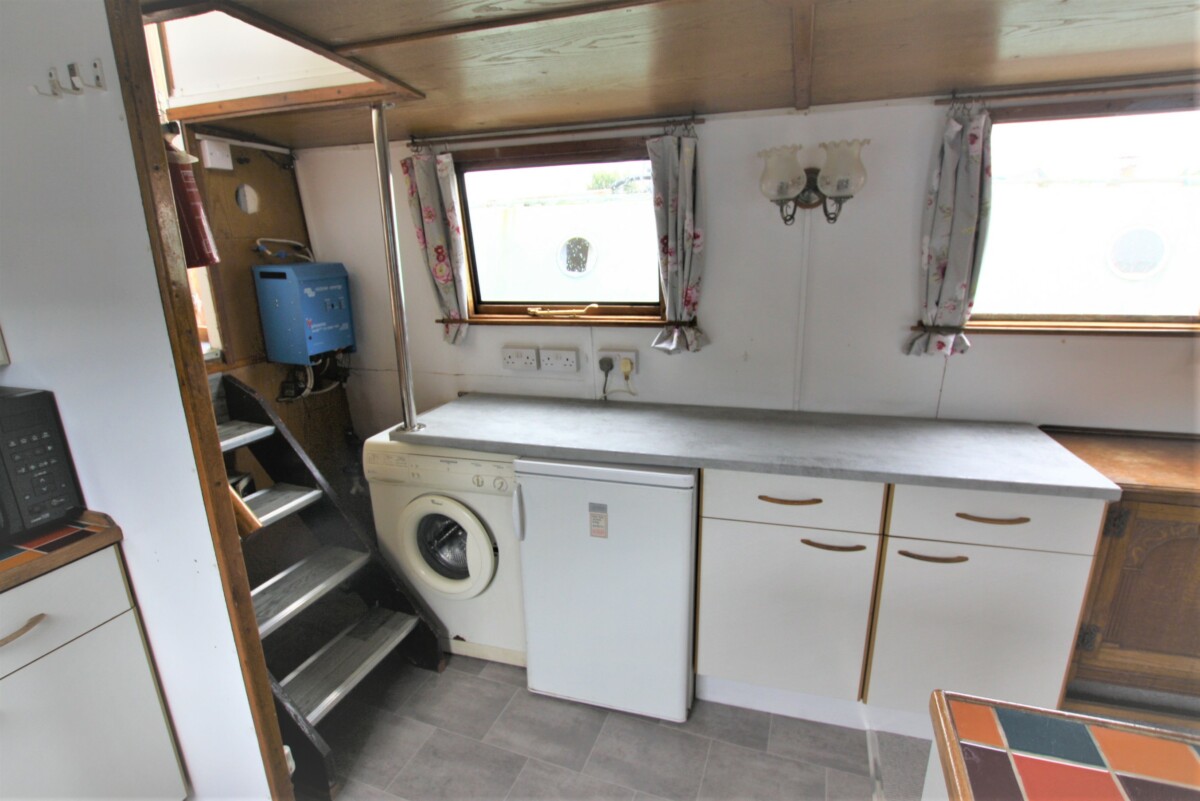

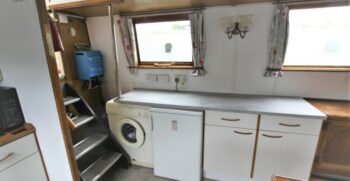

1000mm base unit / drawers & grey worktop incorporating Fridge & washing machine. 3 x 240v double sockets.

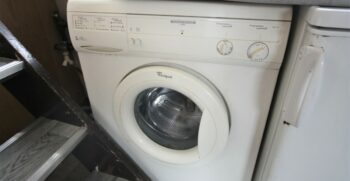

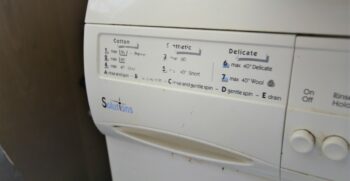

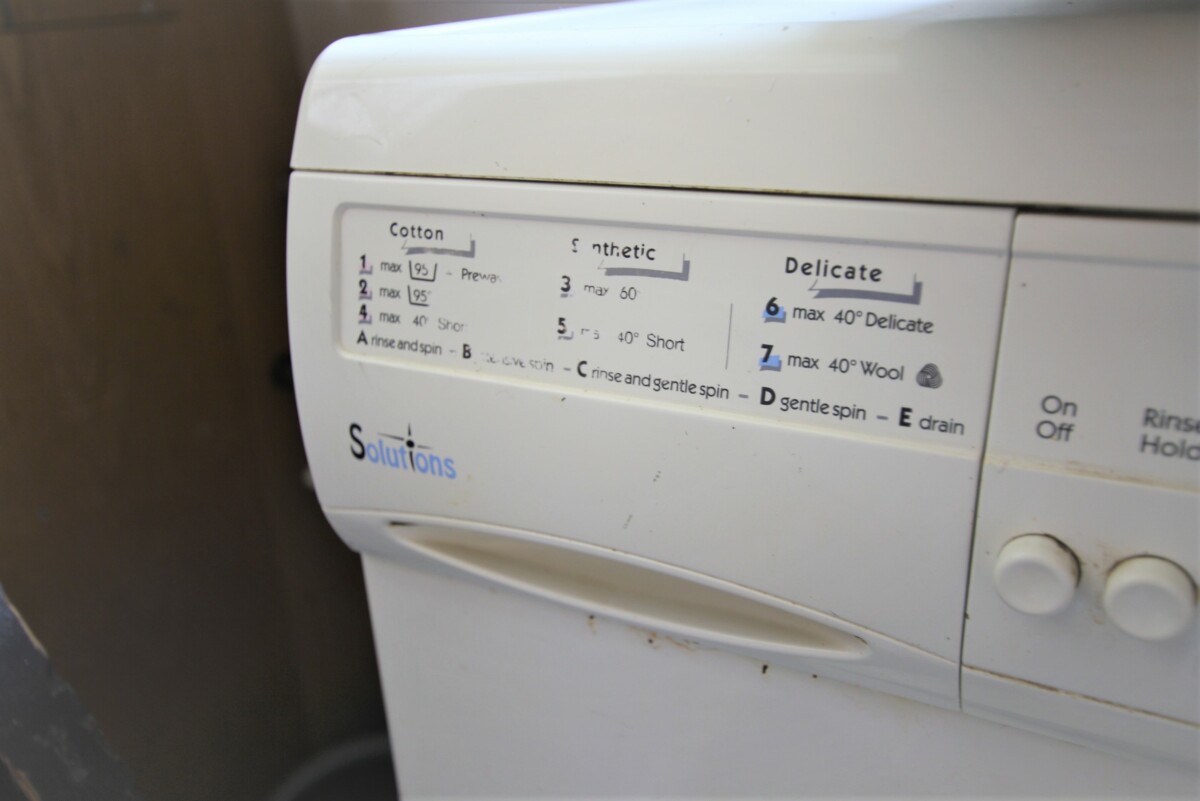

Whirlpool Solutions / 1000 spin washing machine. 240v

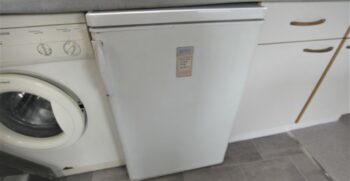

Stand alone Fridge / freezer compartment within. 240v
Please note that all “White goods” have not been tested by CYS & there operation cannot be guaranteed.
Double stainless steel sink bowl with R/H drainer, 1000 base unit with storage beneath.
Vinyl flooring laid.

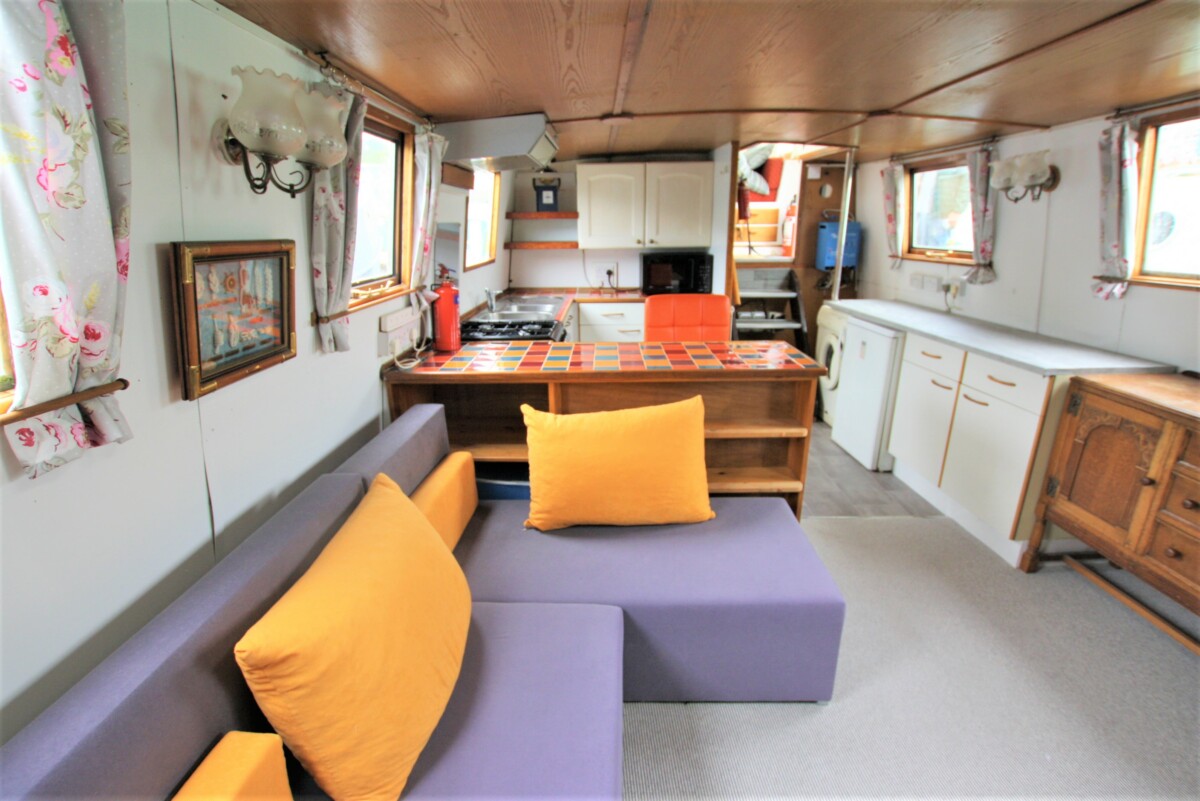

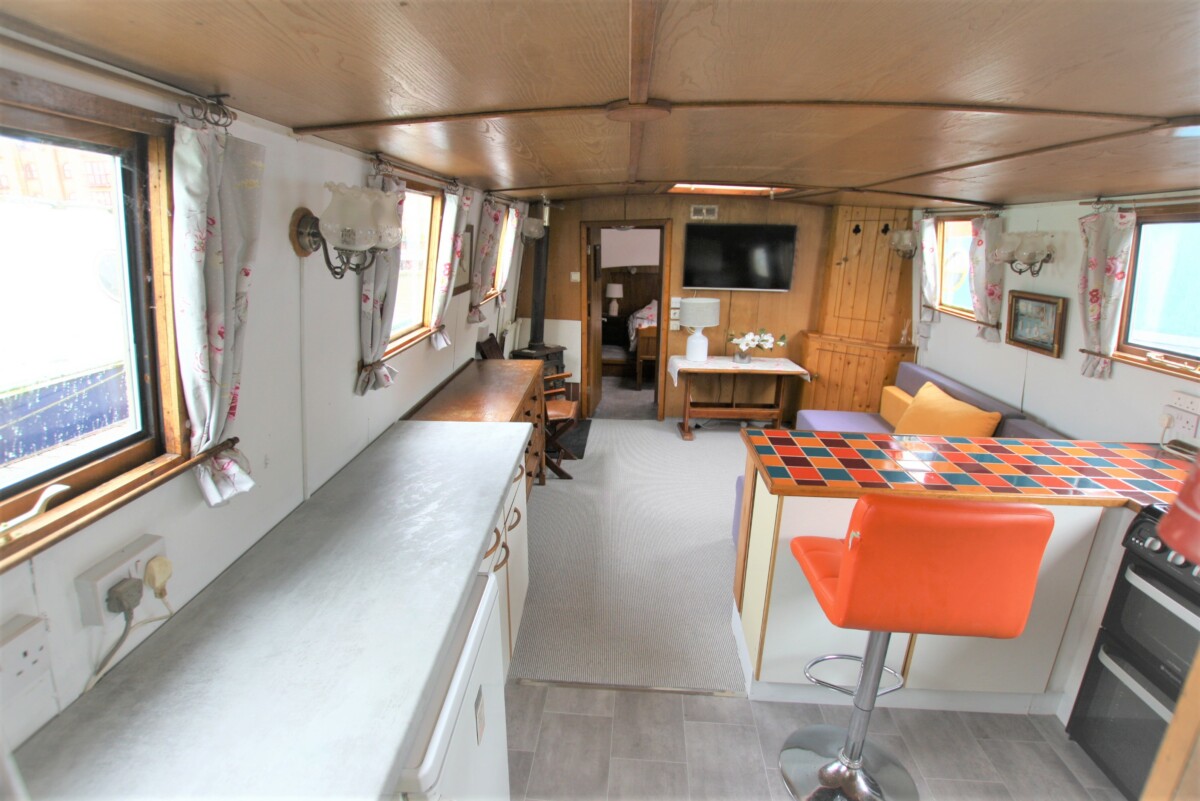

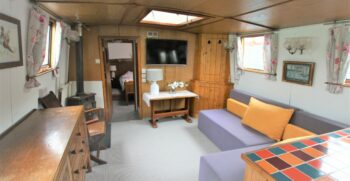

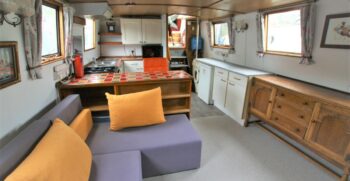

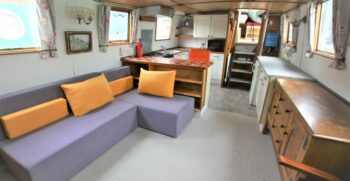

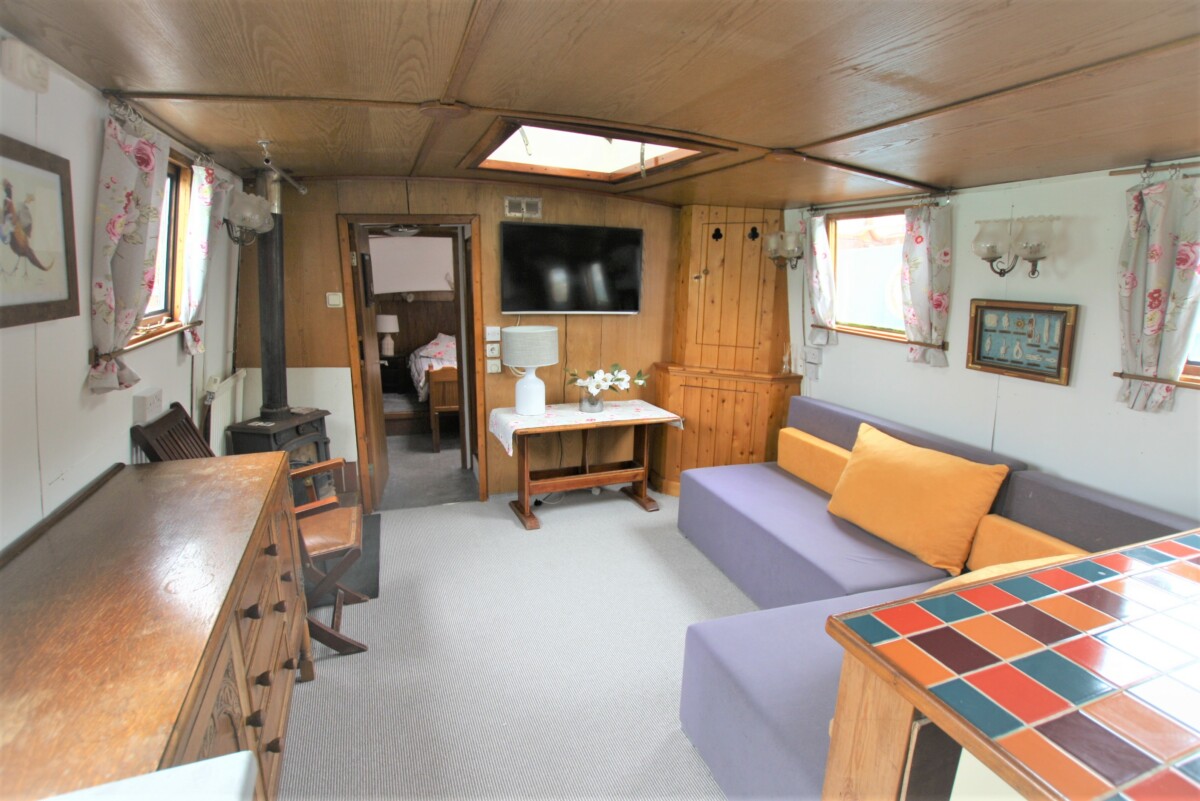

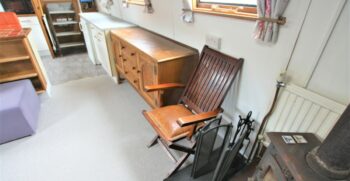

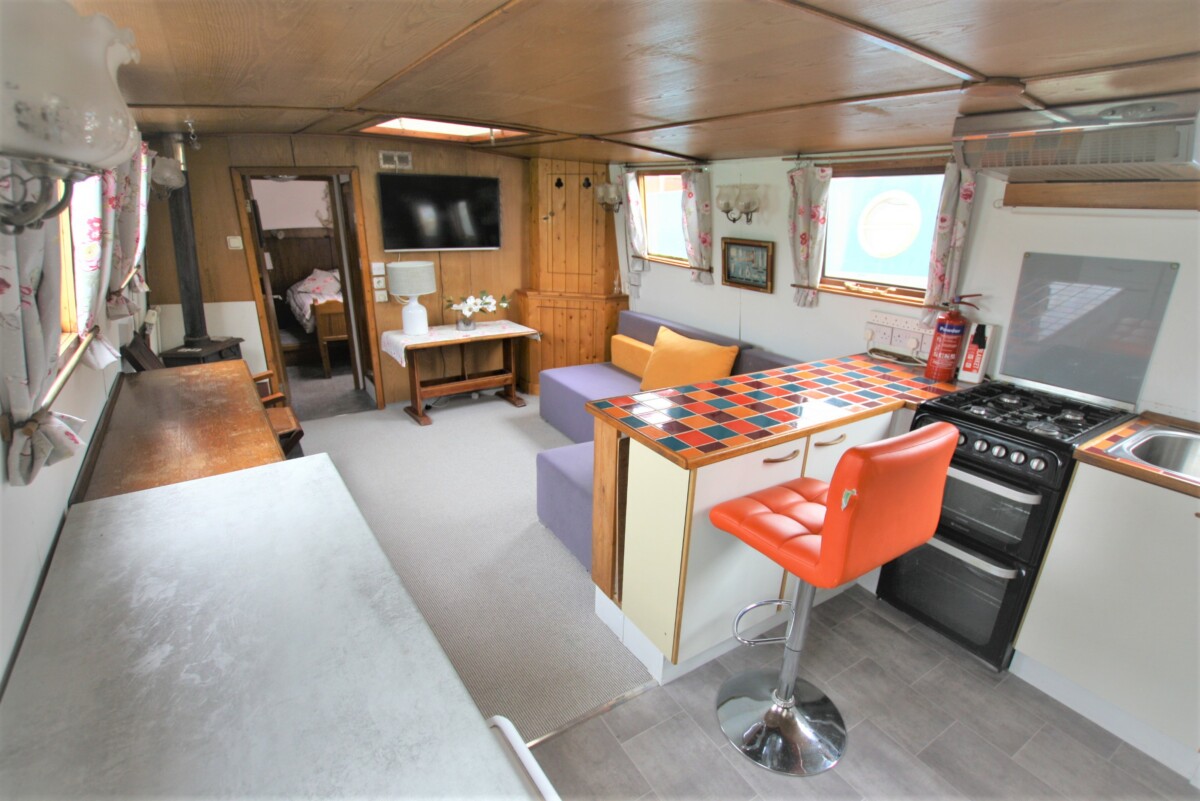

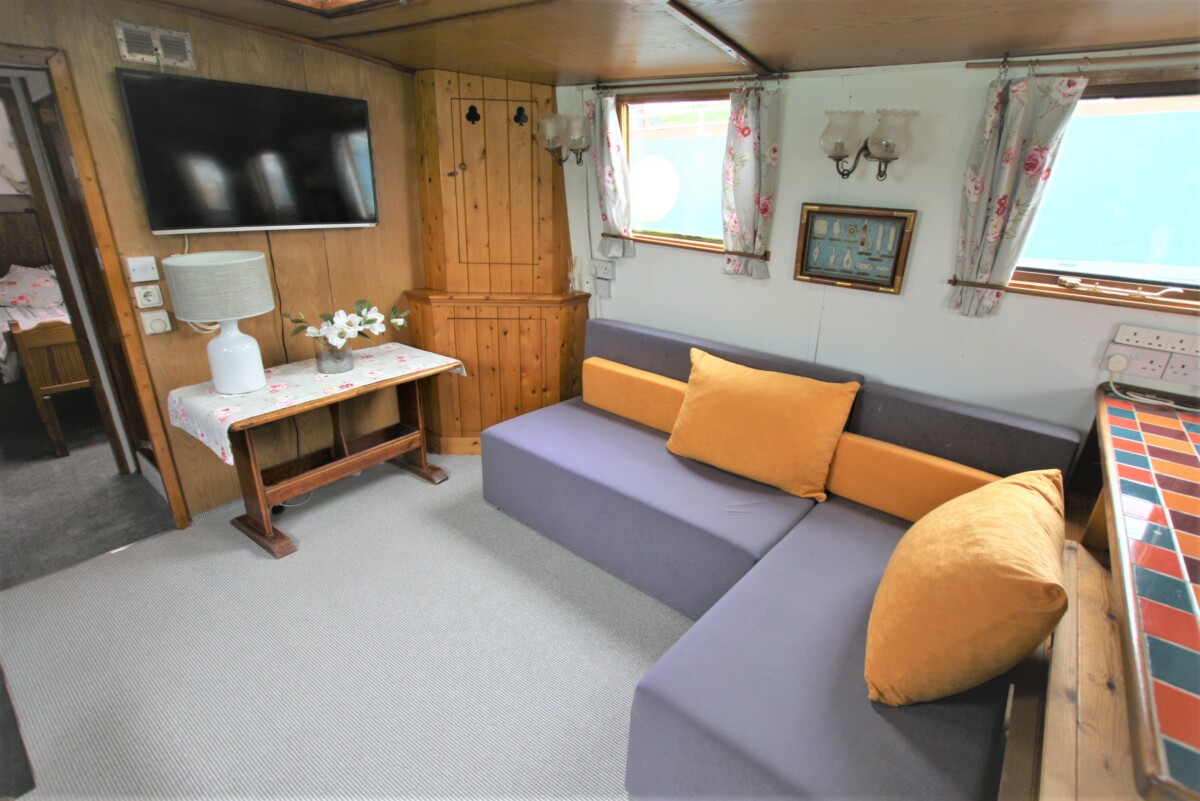

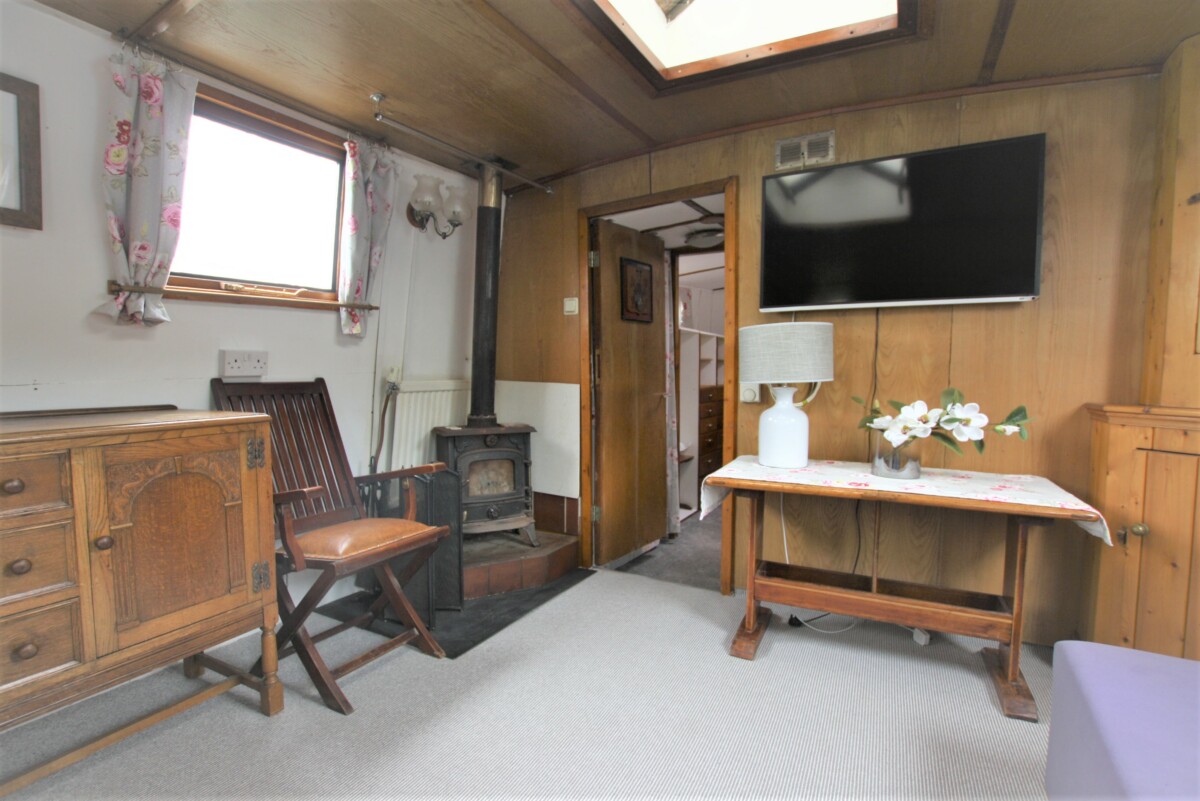

Open to galley with access forward to wet room & Master bedroom. Oodles of natural light & new carpet throughout further helping to encourage this spacious room.
Loose fitted furniture (Optionally supplied & not necessarily part of her inventory)

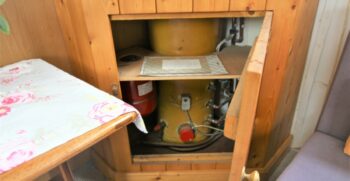

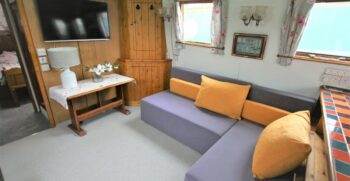

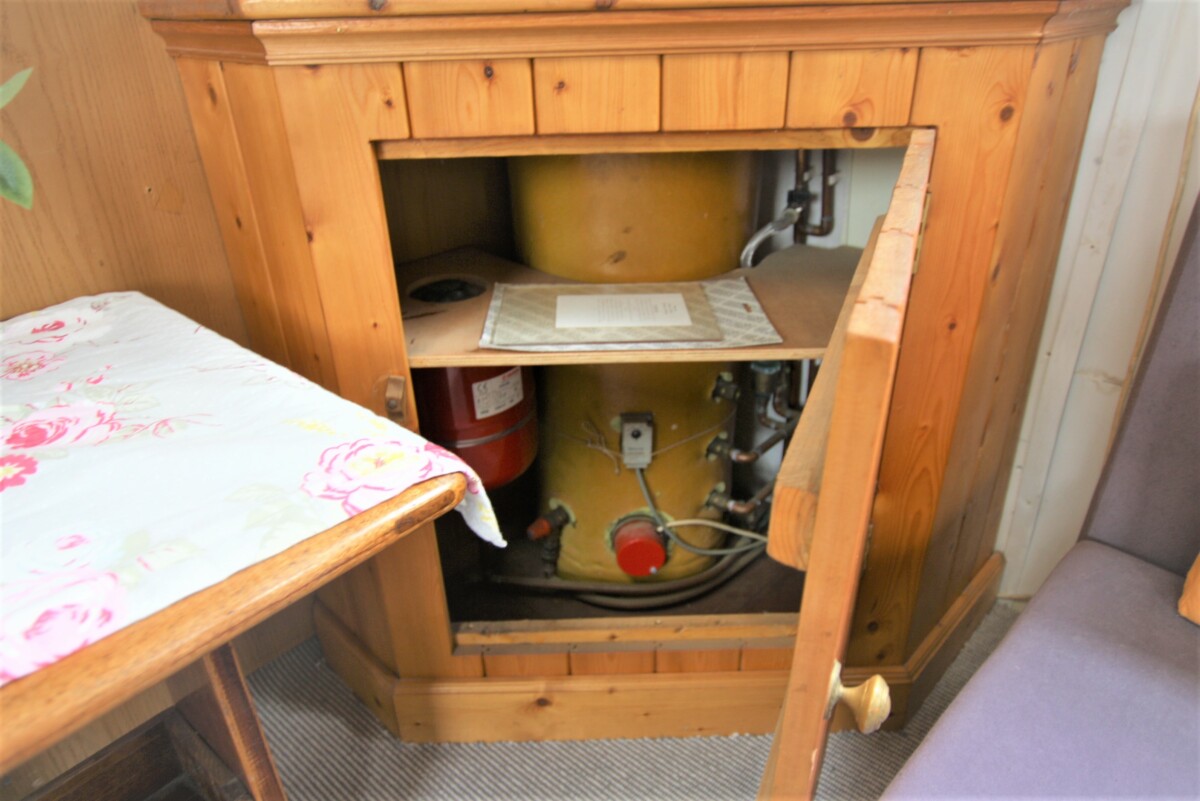

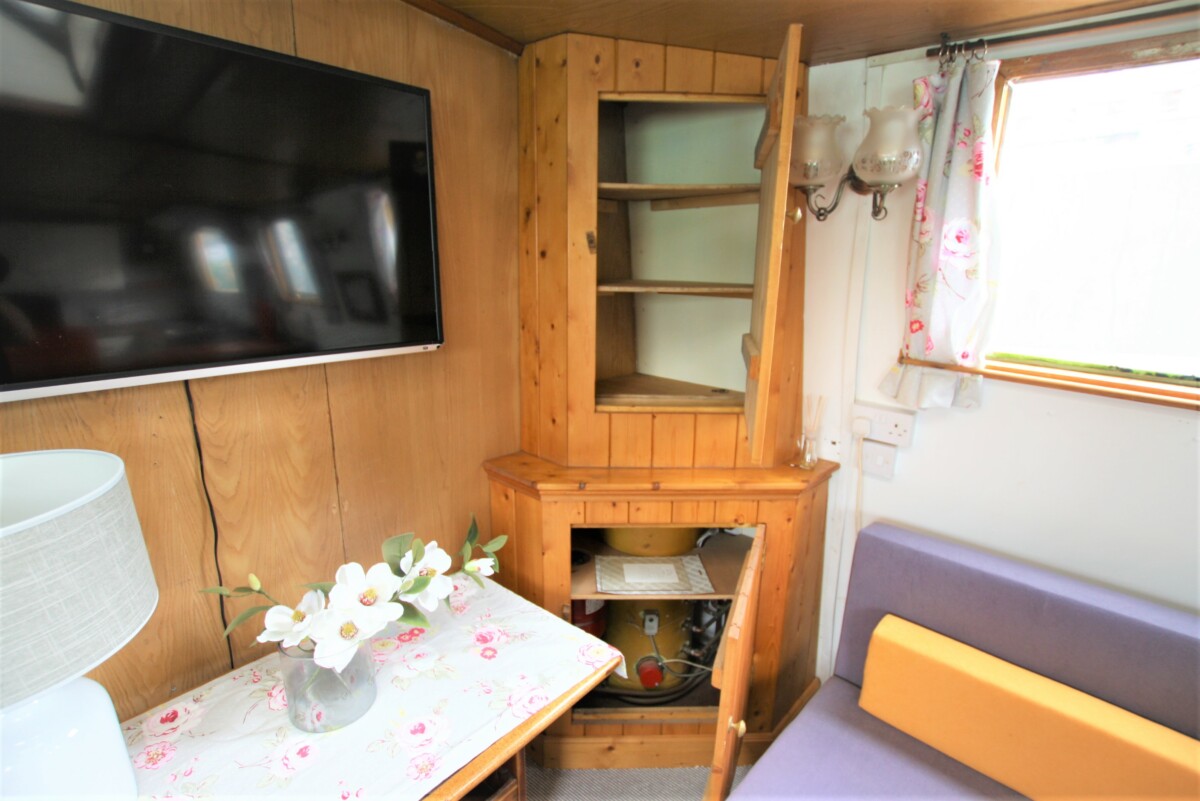

Built in T&G corner unit to forward starboard side of saloon. This unit houses the calorifier/ immersion heater & accumulator tank. 3 x Glazed fluted twin wall lights 240v & further double 240v outlets.
Wall mounted 38″ Flat screen t.v (Not necessarily part of inventory & not tested)
Room stat fixed to port side of saloon.
White painted ply panelled walls & natural wood coloured ply deck head.
Light switch to portside bulkhead on exiting the saloon to Master bedroom.

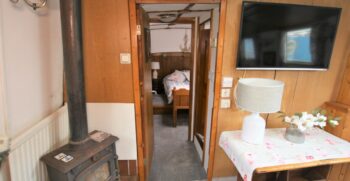

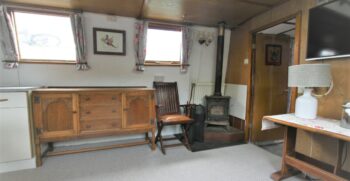

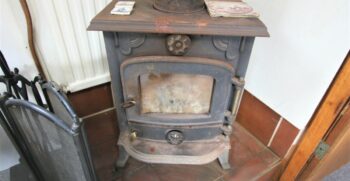

Multi fuel stove mounted on raised hearth to portside /forward saloon corner with single wall flue outlet. Unit has not been operated by CYS & further inspection/advice as to its installation would be advi

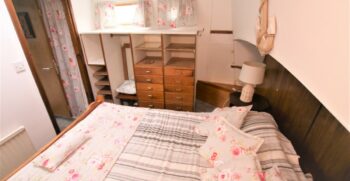

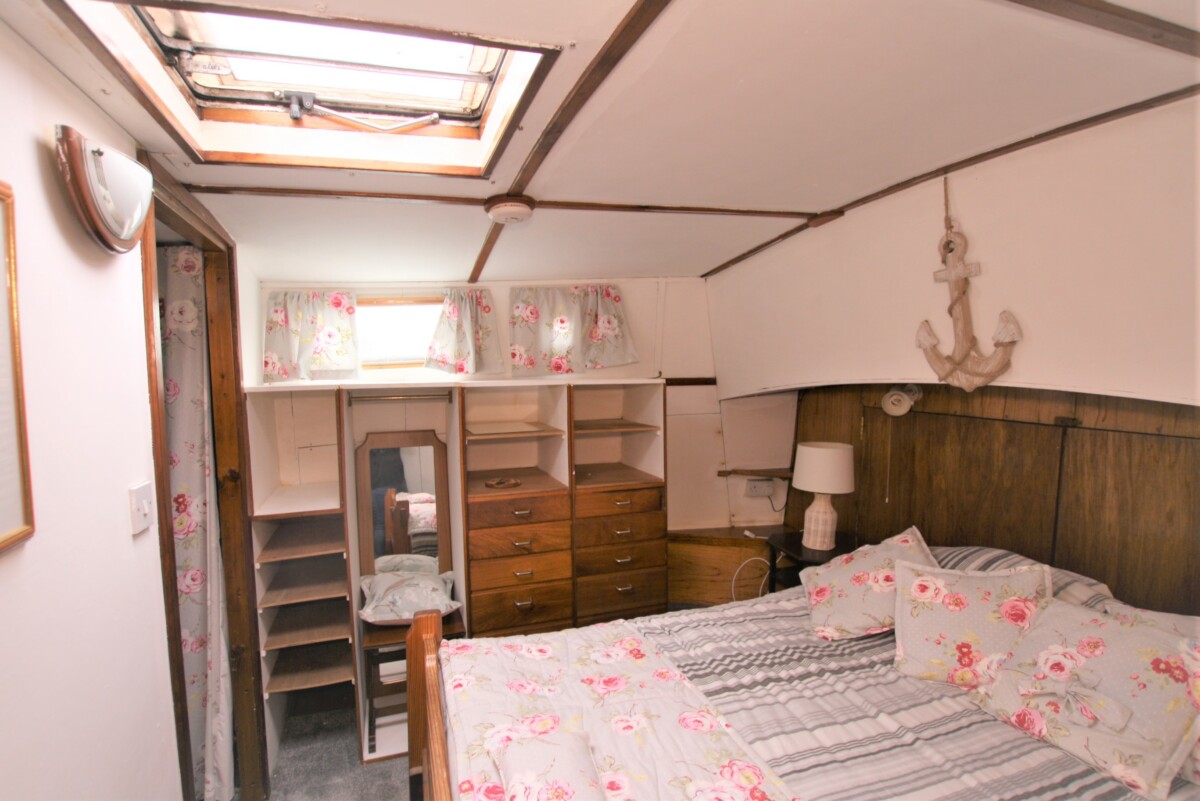

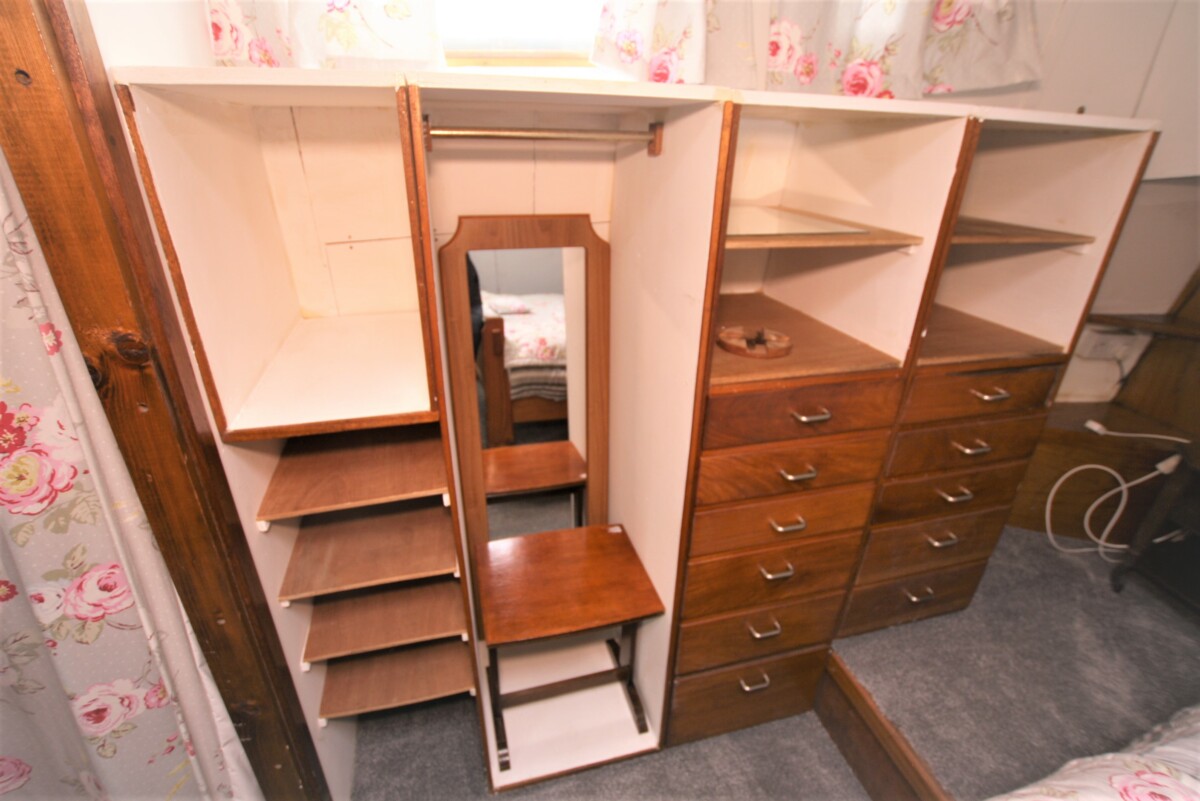

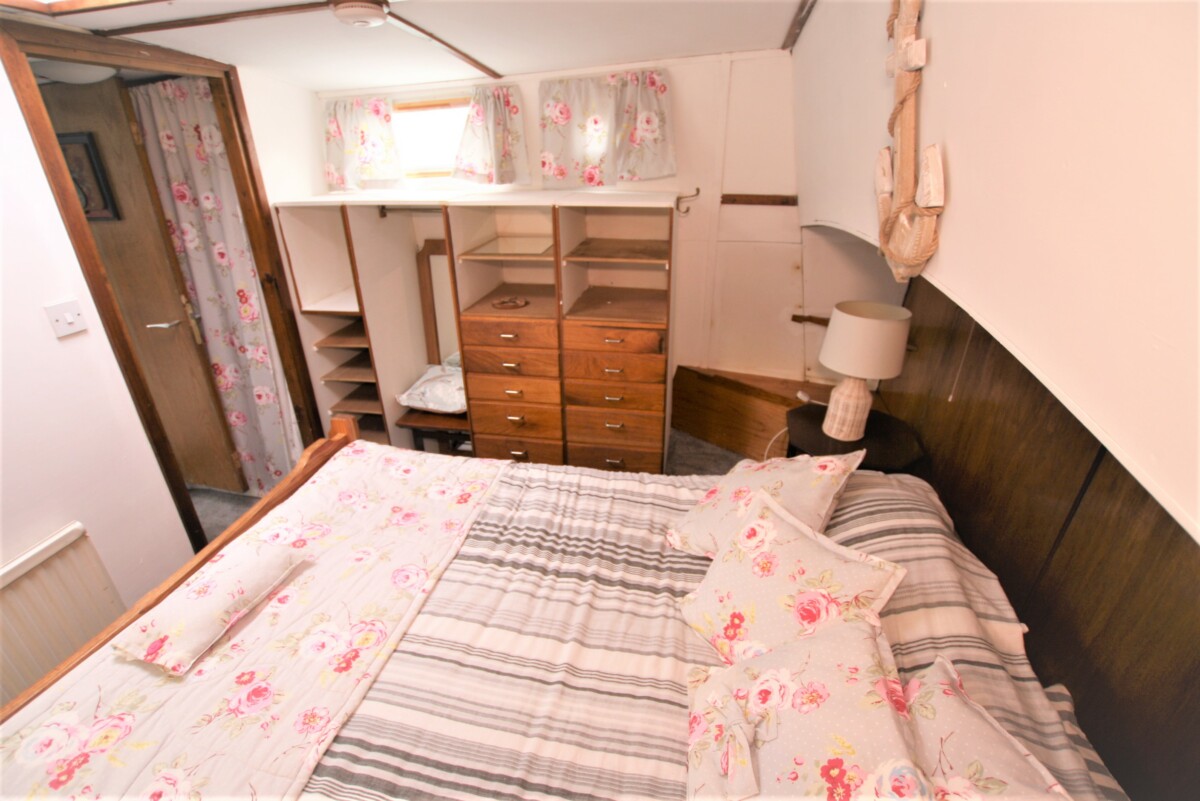

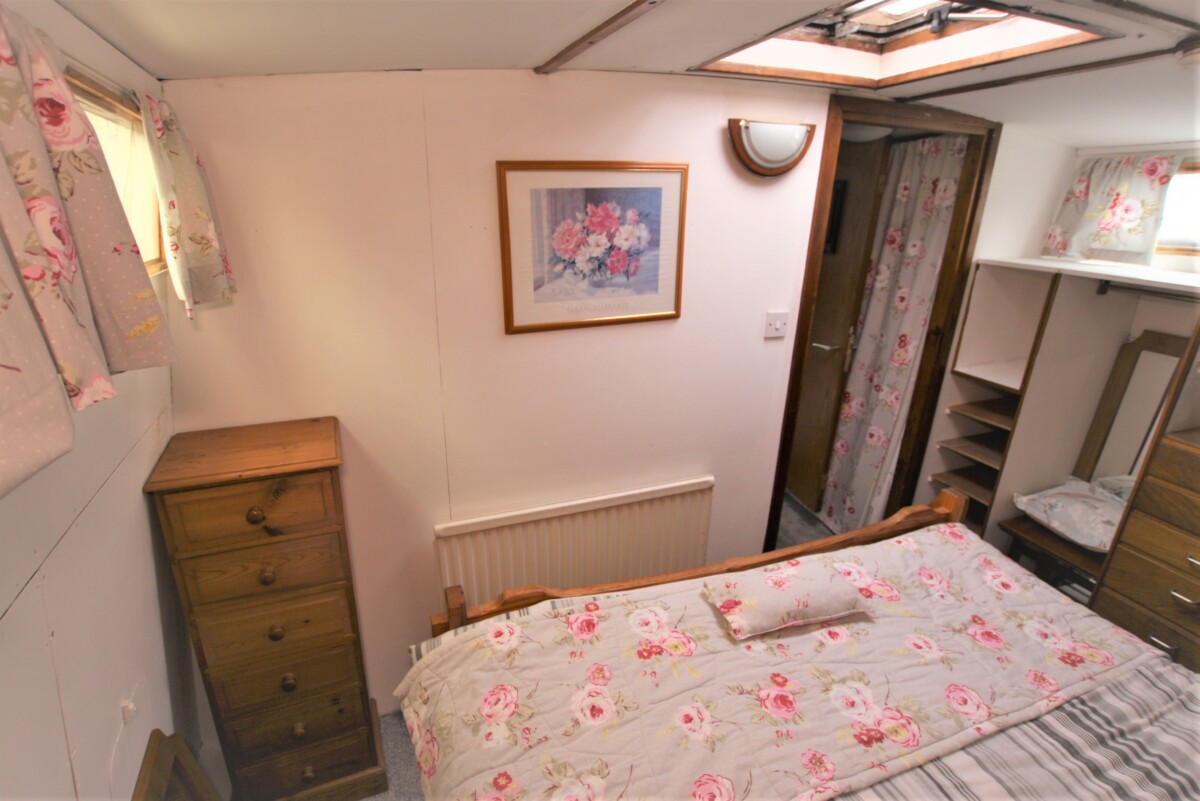

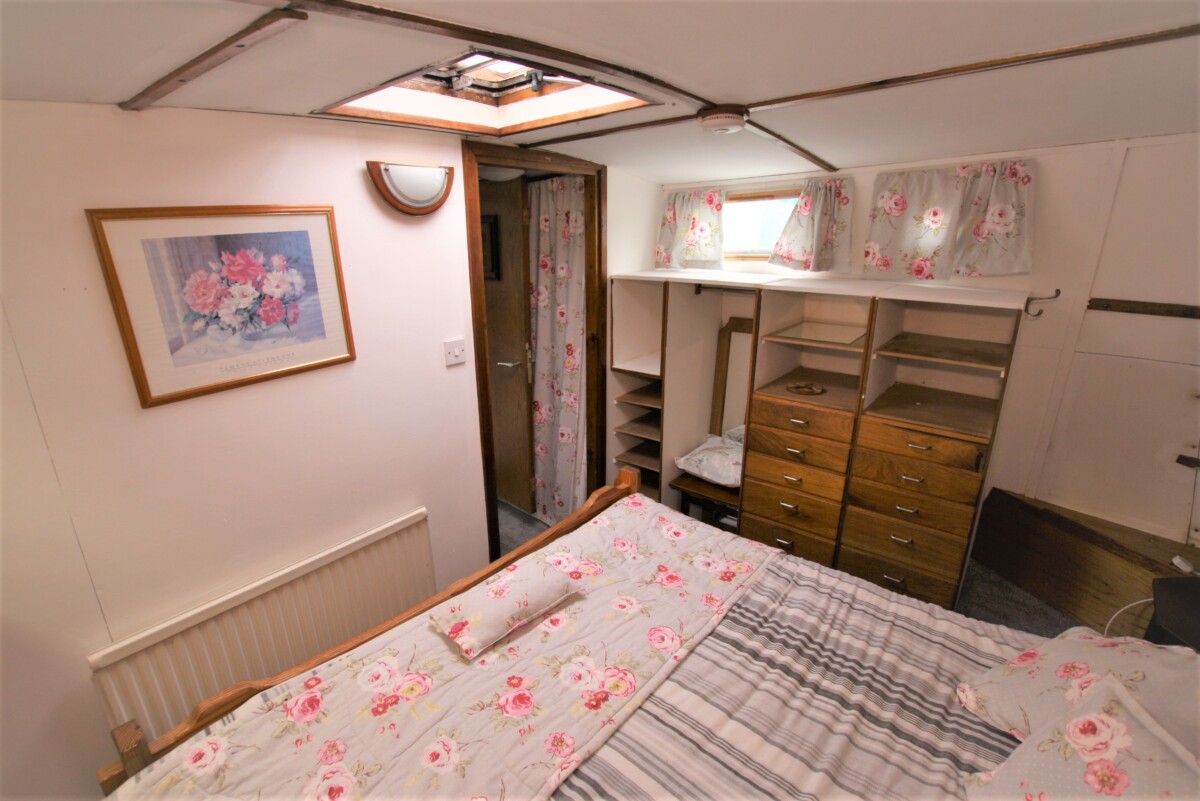

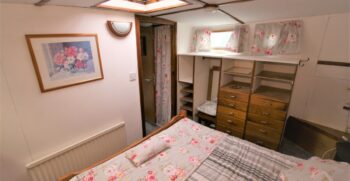

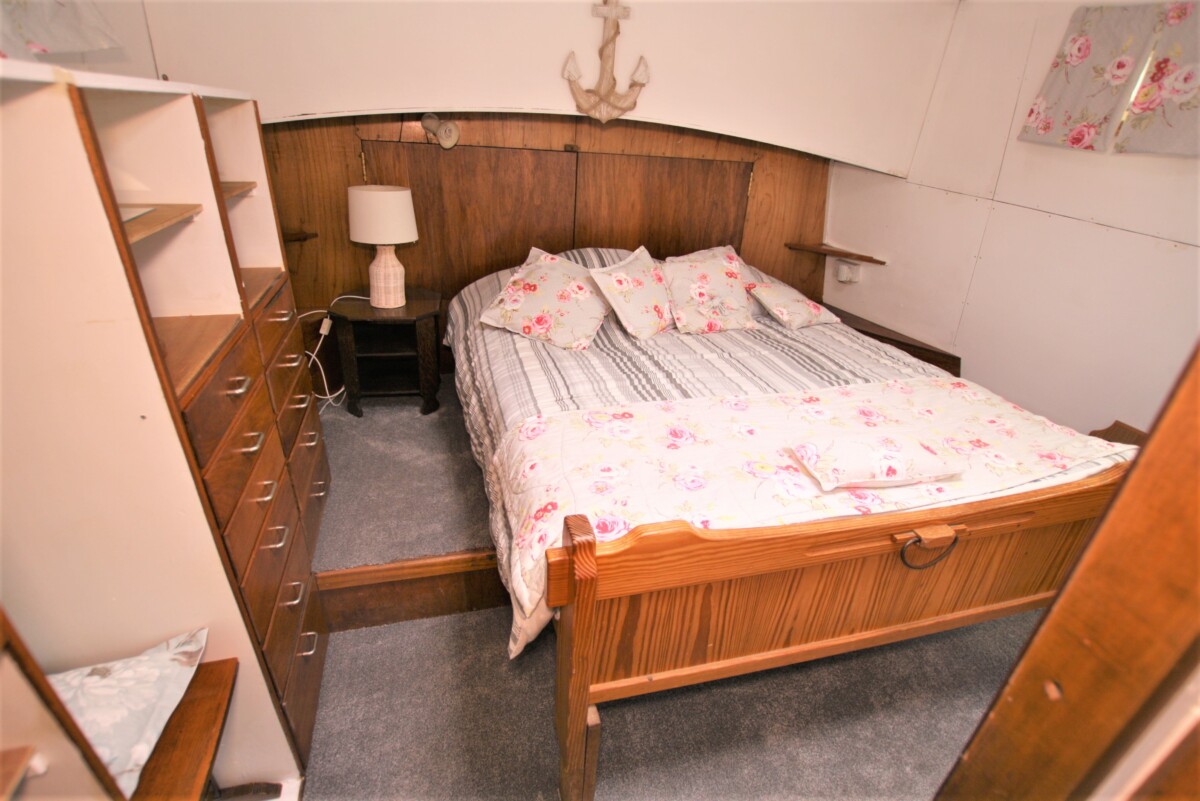

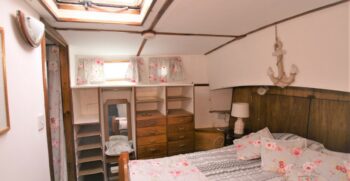

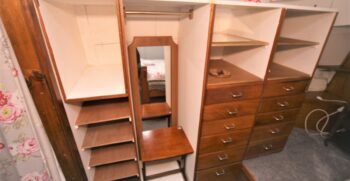

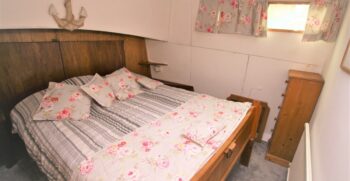

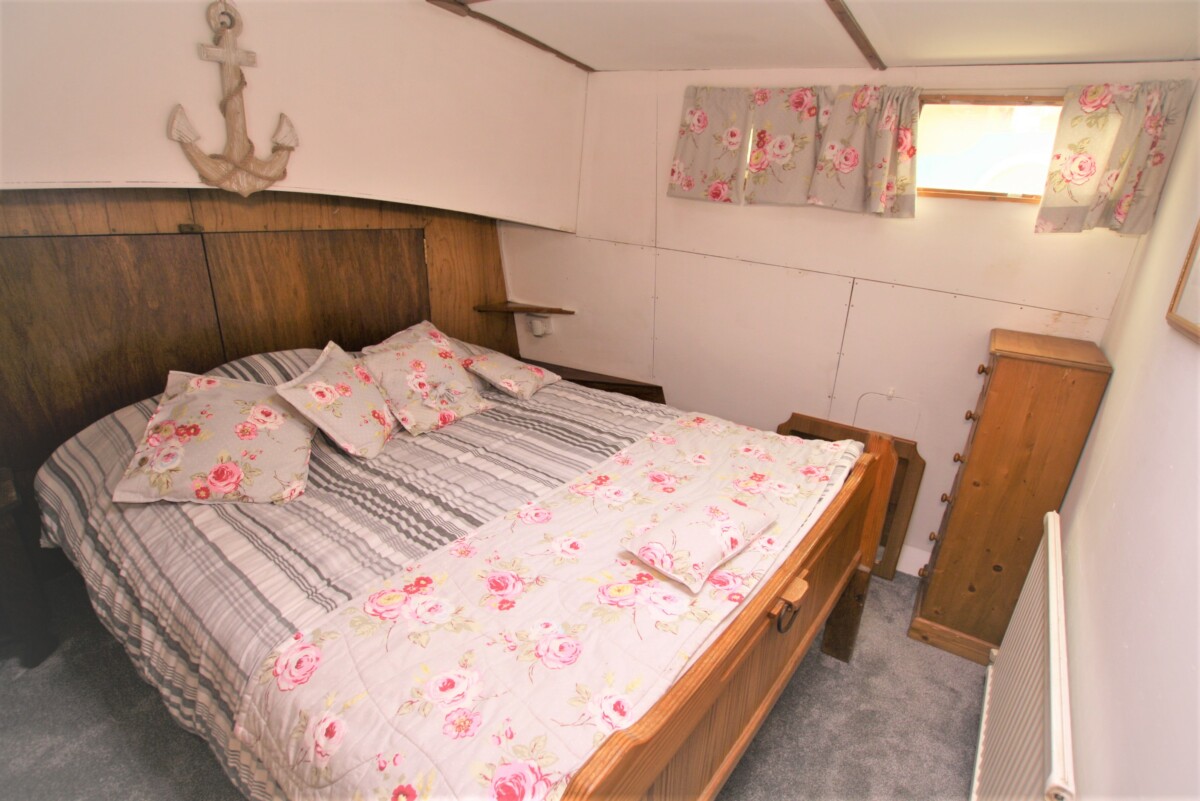

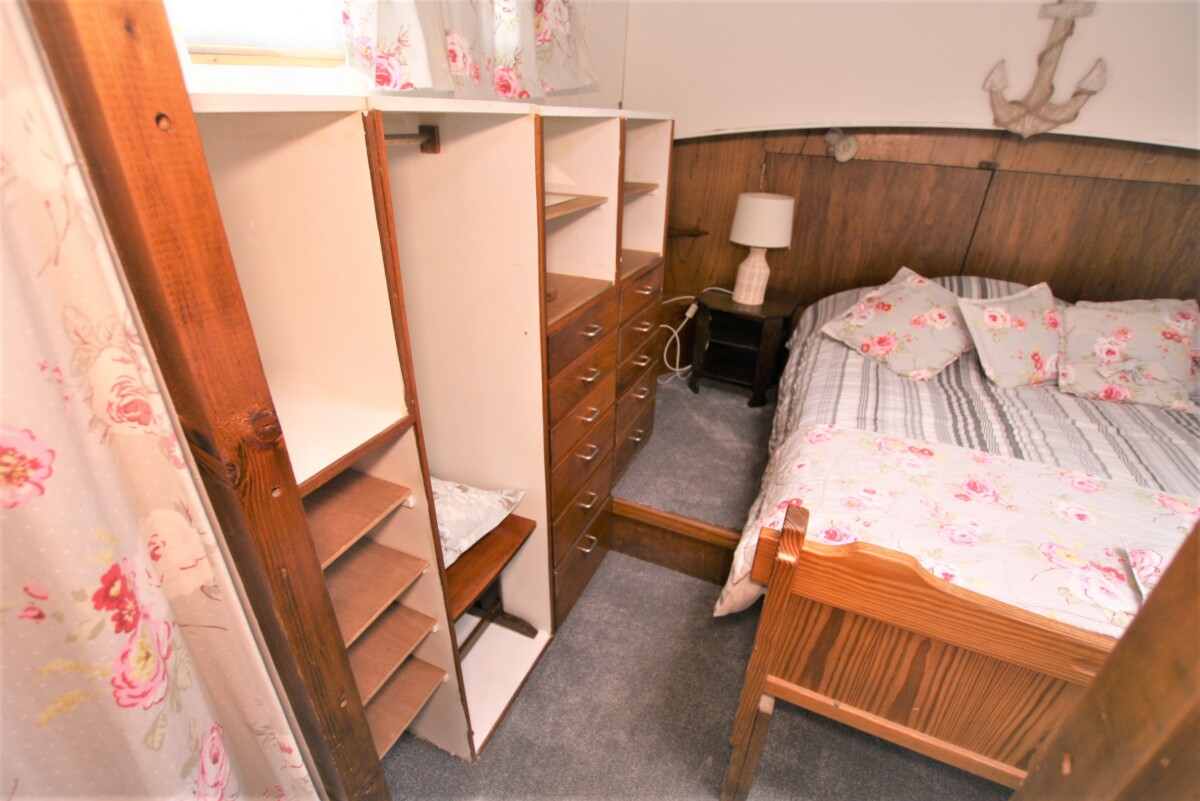

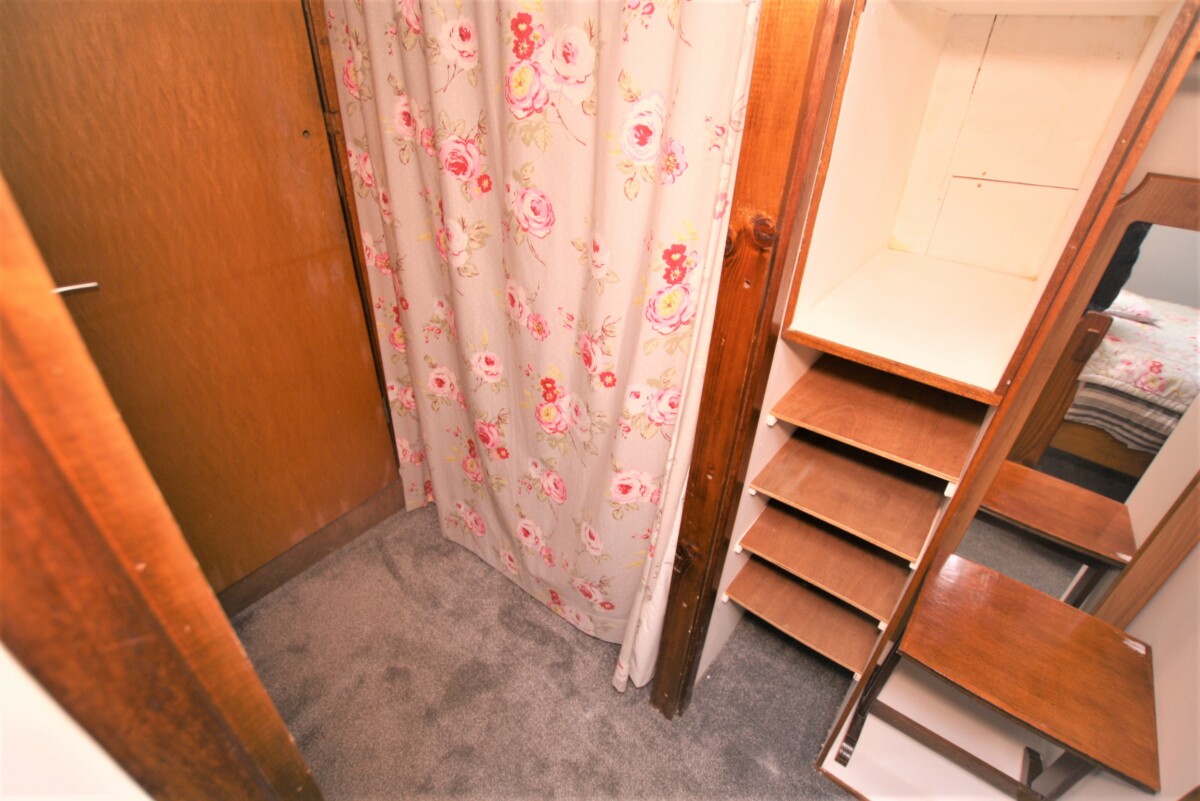

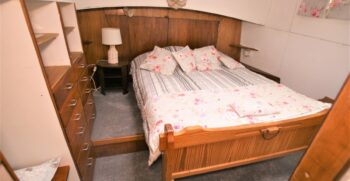

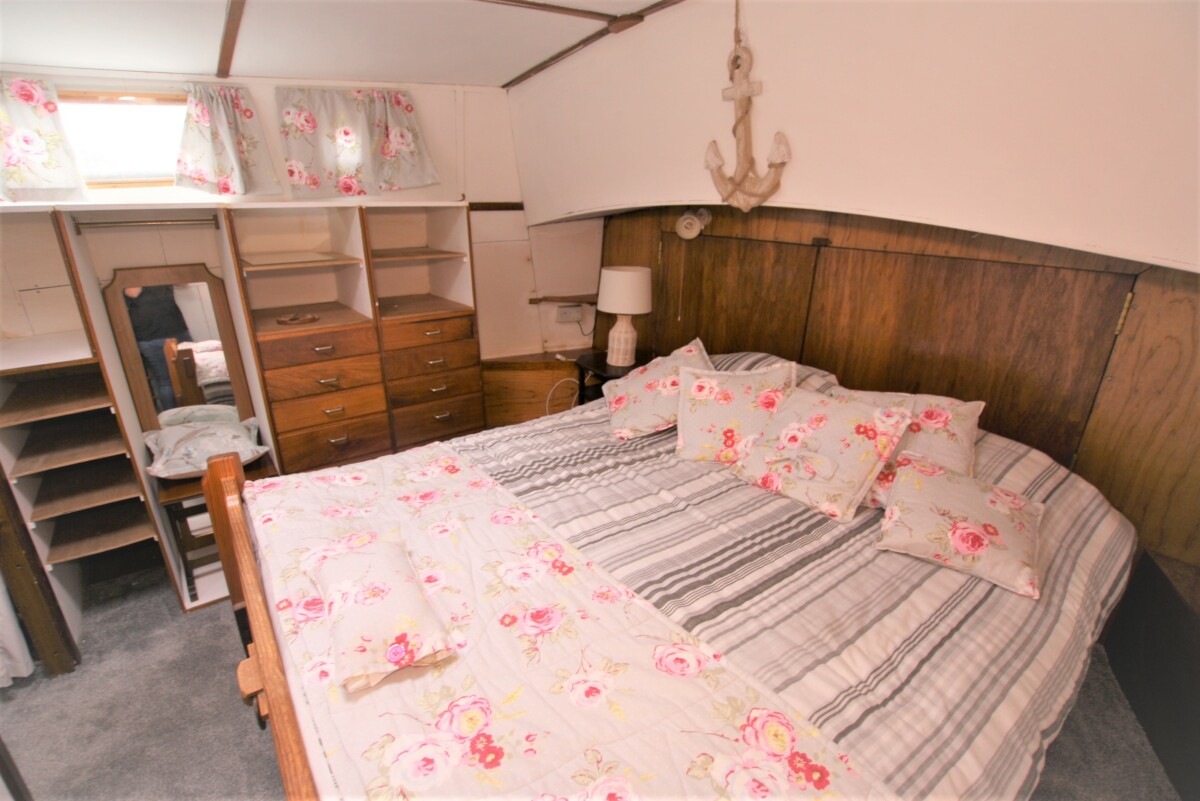

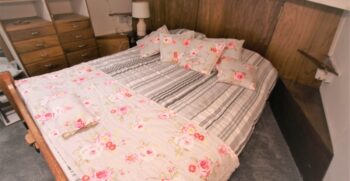

Newly carpeted throughout & with a loose fitted Island style double. Loose fitted furniture for storage. Access to anchor / chain locker to forward bulkhead.
White painted ply walls & white vinyl coated deck head.
2 x Double 240v sockets.
1 x 12v reading lamp.
1 x 240v glazed wall lamp & light switch to right hand side of cabin door.
Escape hatch & ventilation.

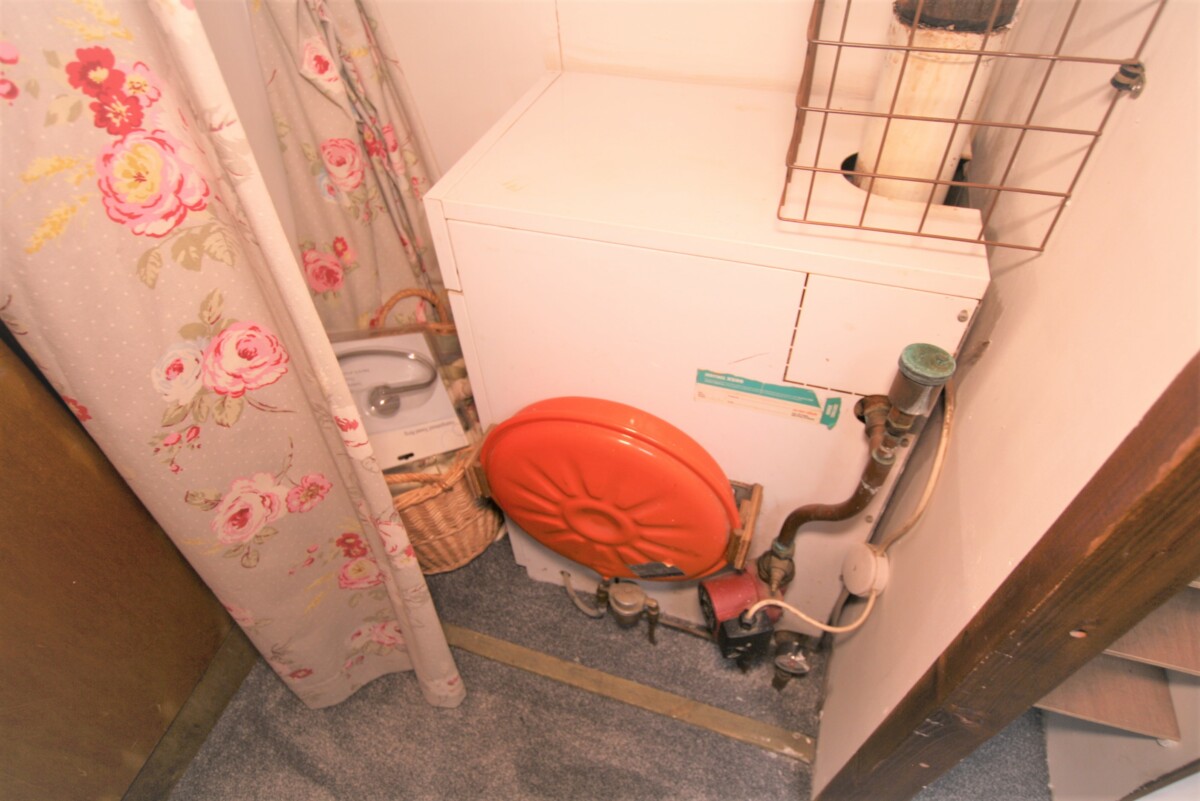

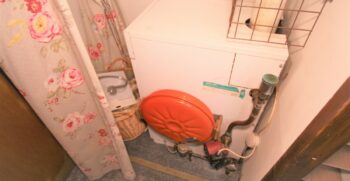

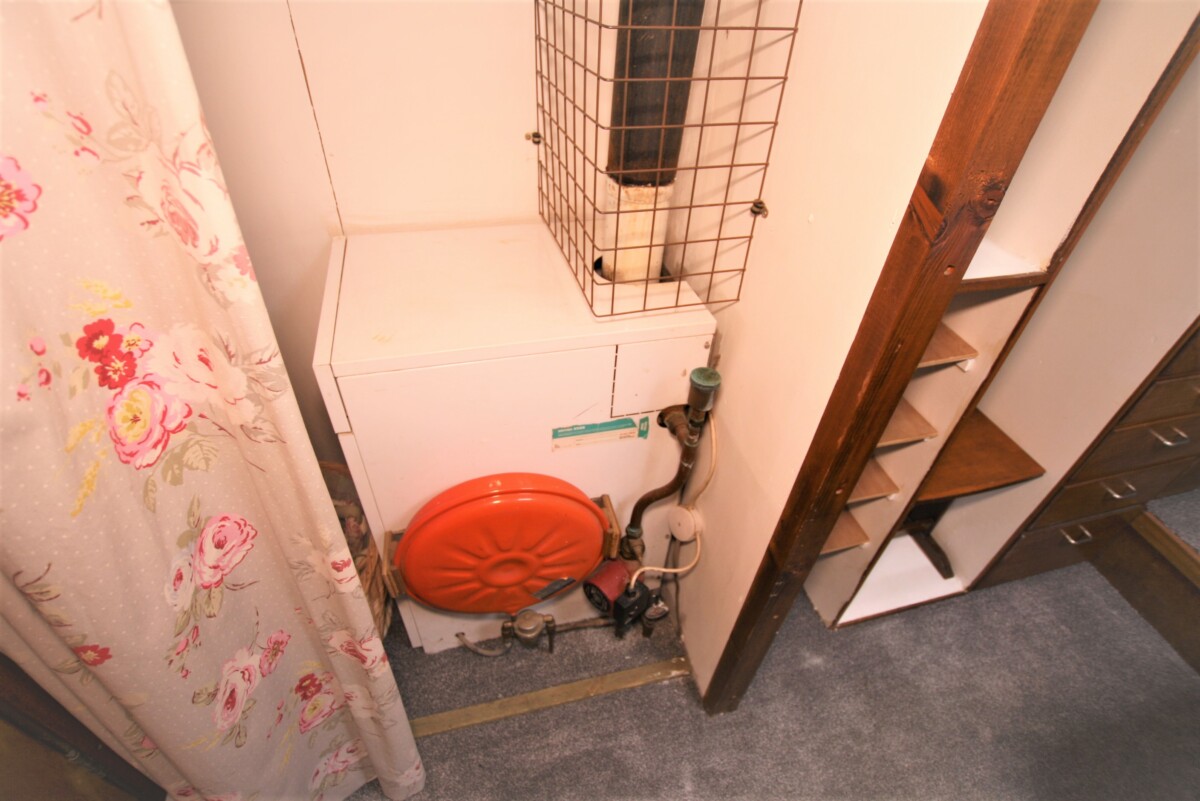

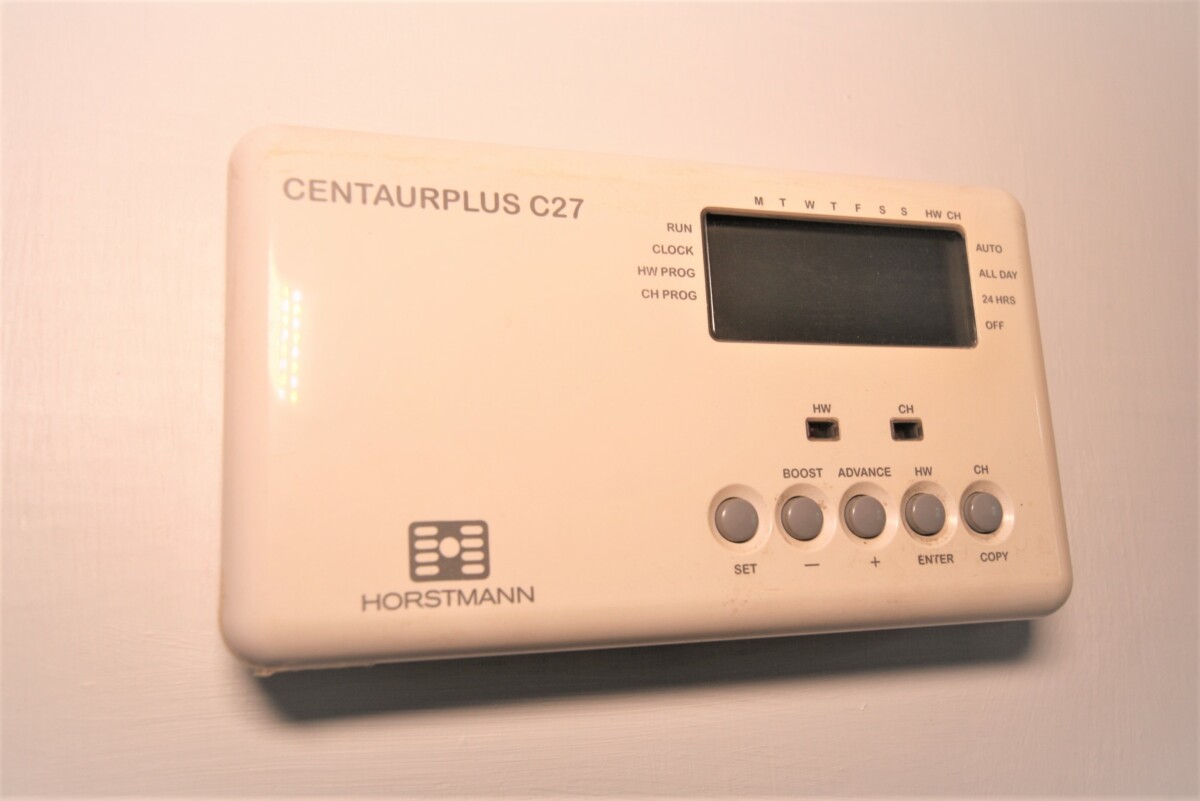

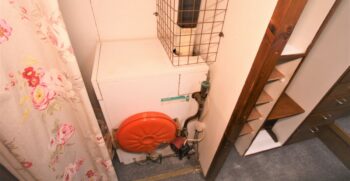

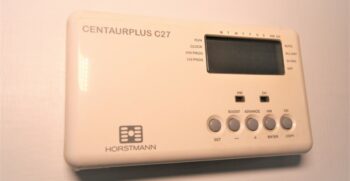

Stand alone Diesel boiler with Horstmann / Centaur plus C27 control unit for Heating & hotwater.

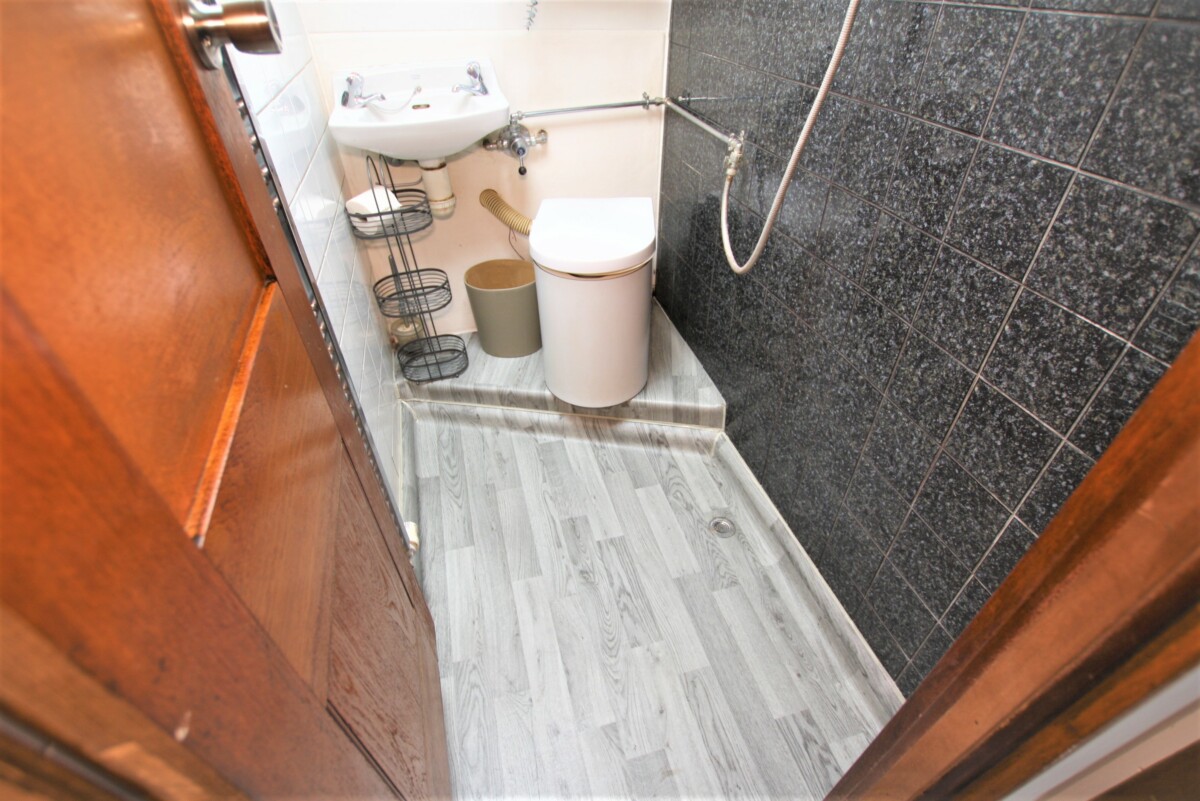

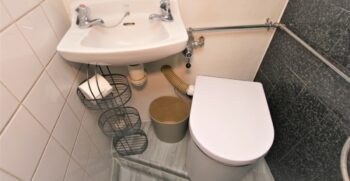

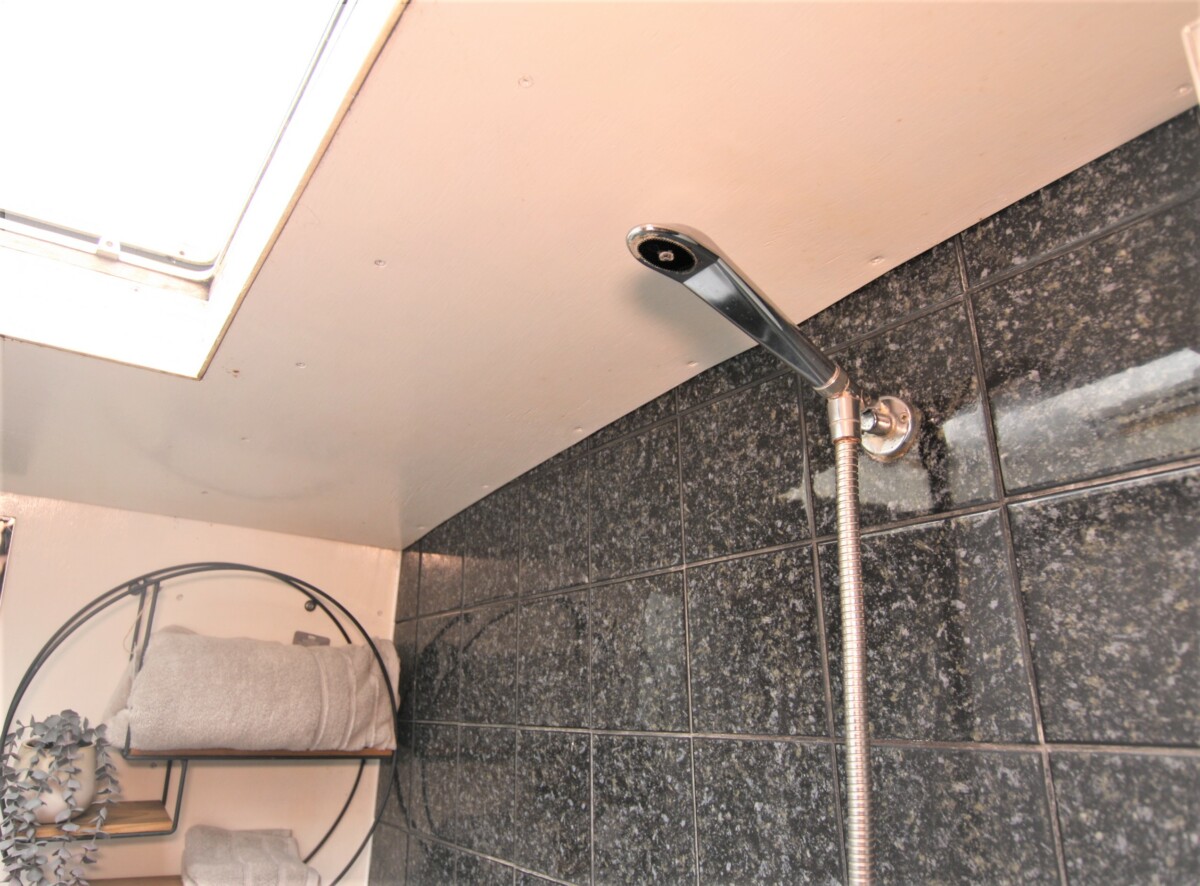

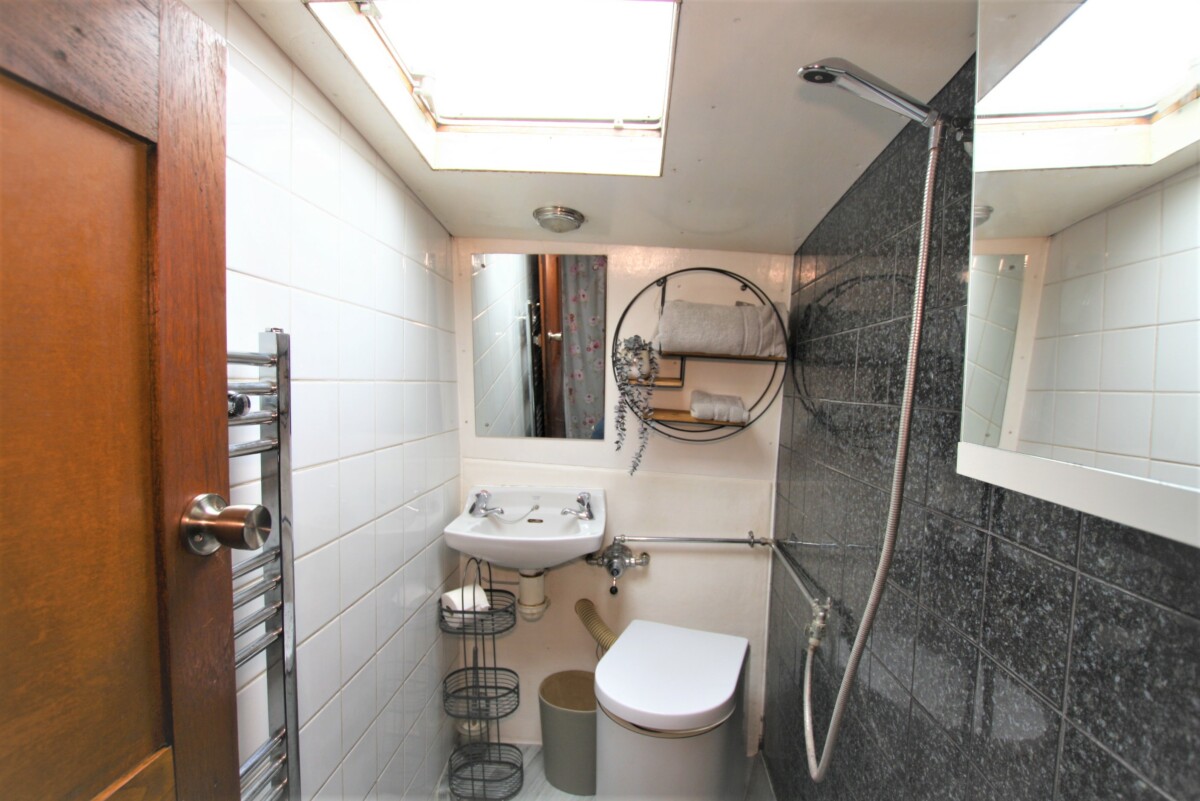

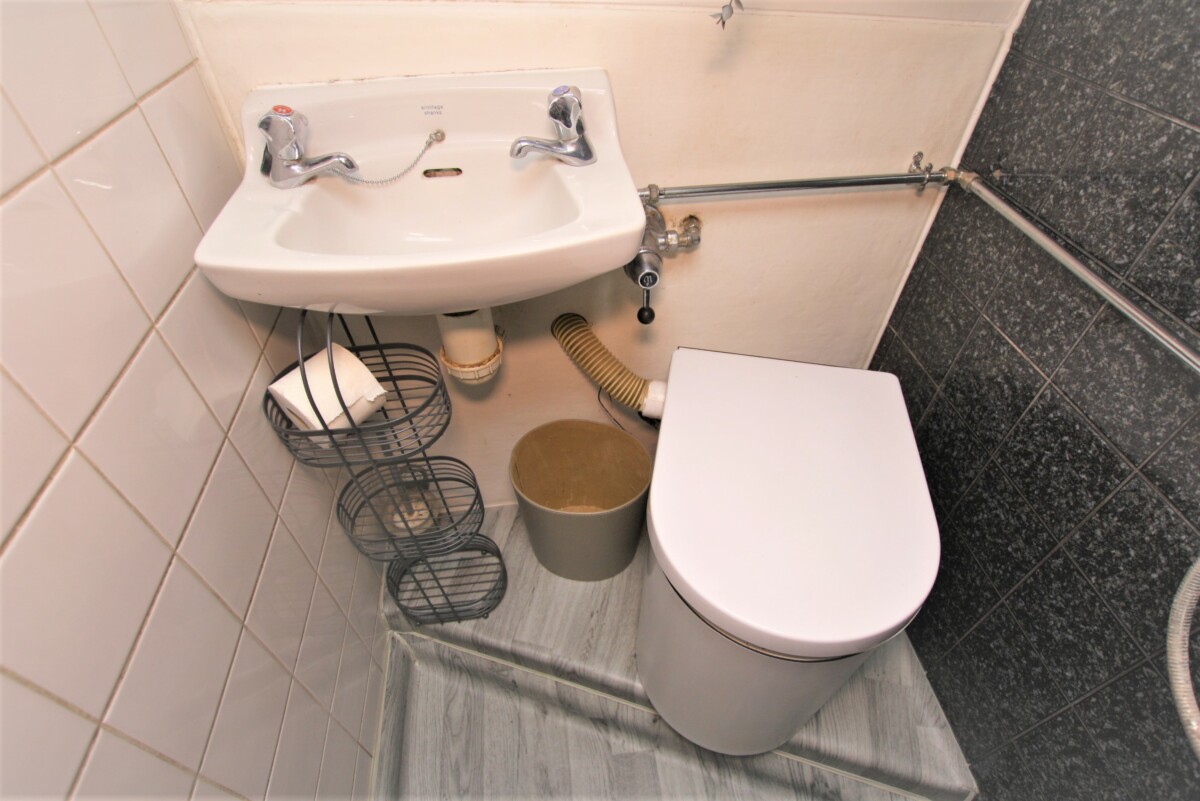

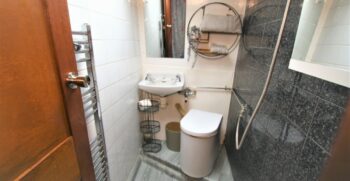

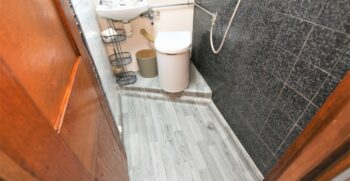

White & grey tiled wet room.
1 x 12v deck head light
Chromium heated towel rail
Wall mounted wash hand basin with H&C, remote shower & hot & cold mixer valve.
Composting loo with natural overboard vent. Model of unit not known.

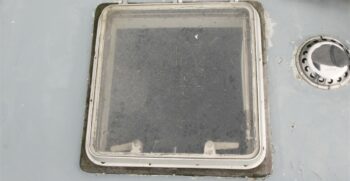

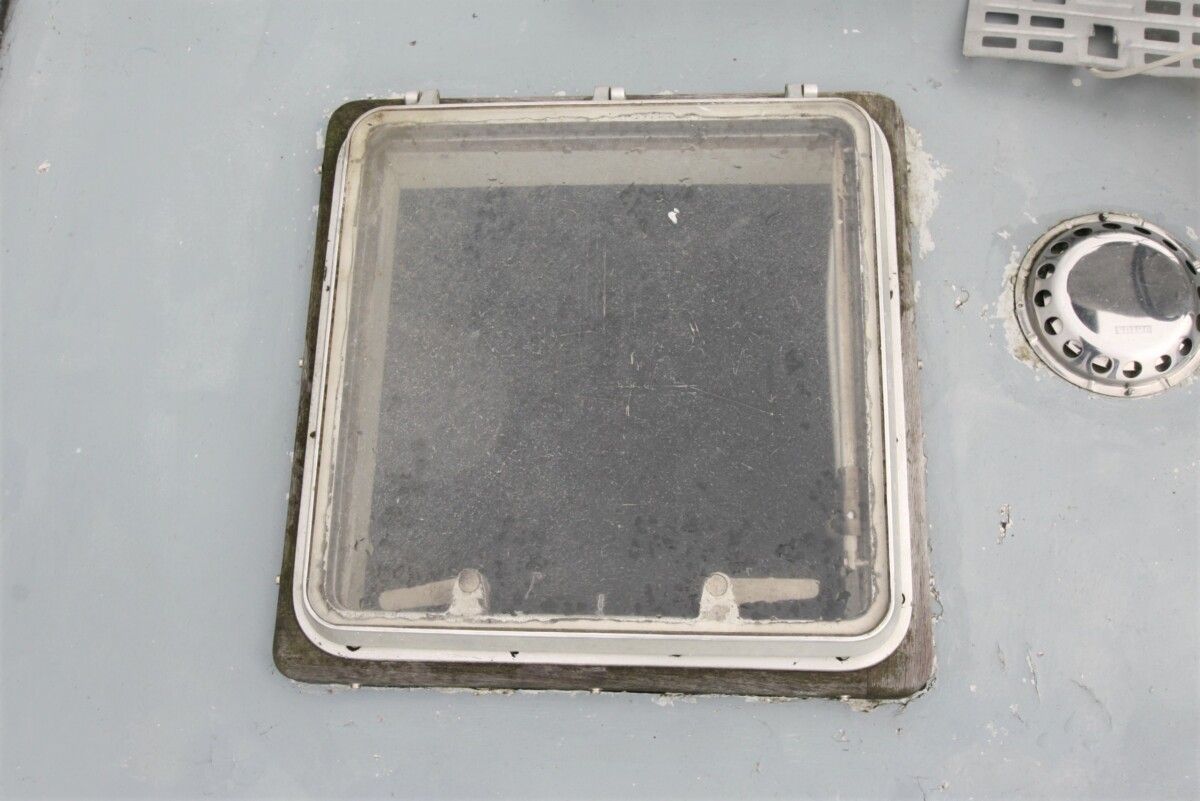

Large hatch to deck head.

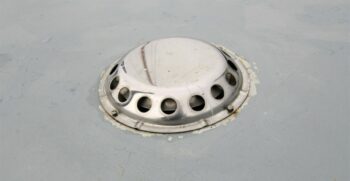

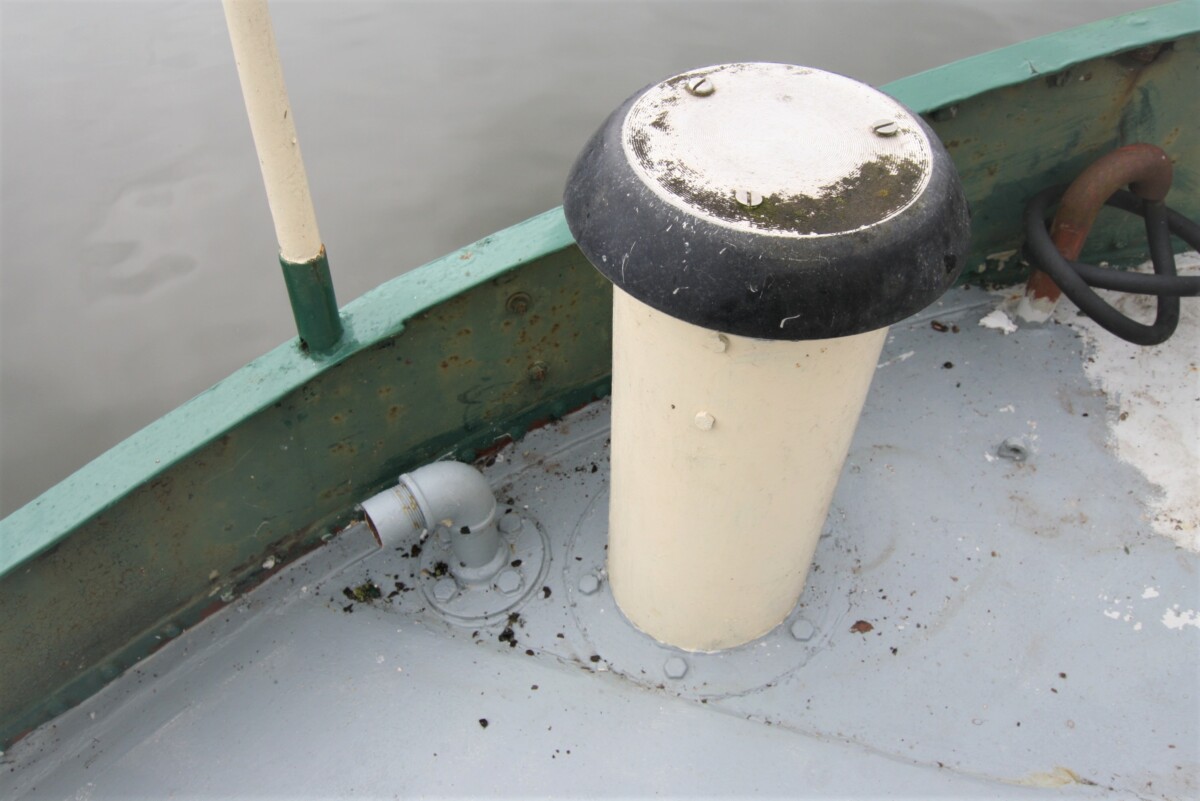

U.F.O style stainless deck ventilator

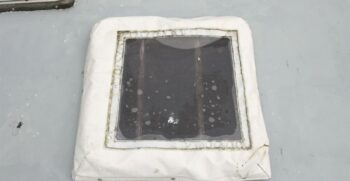

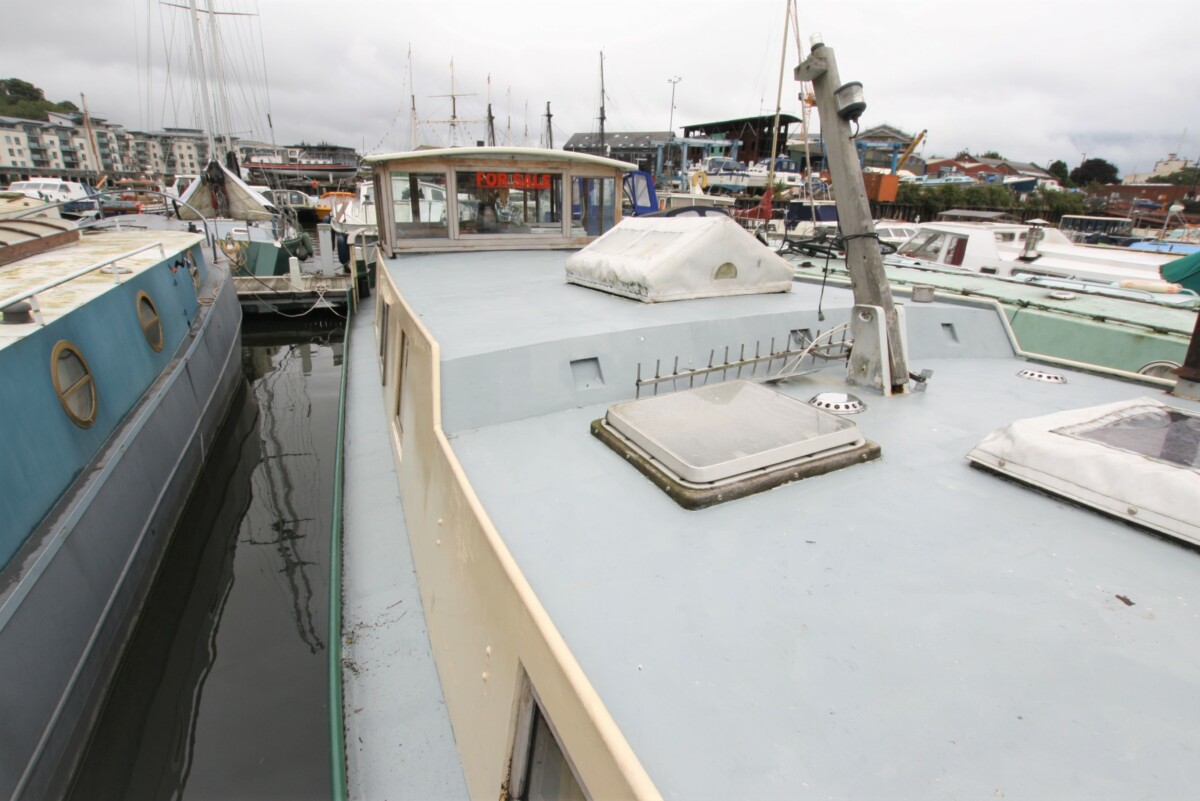

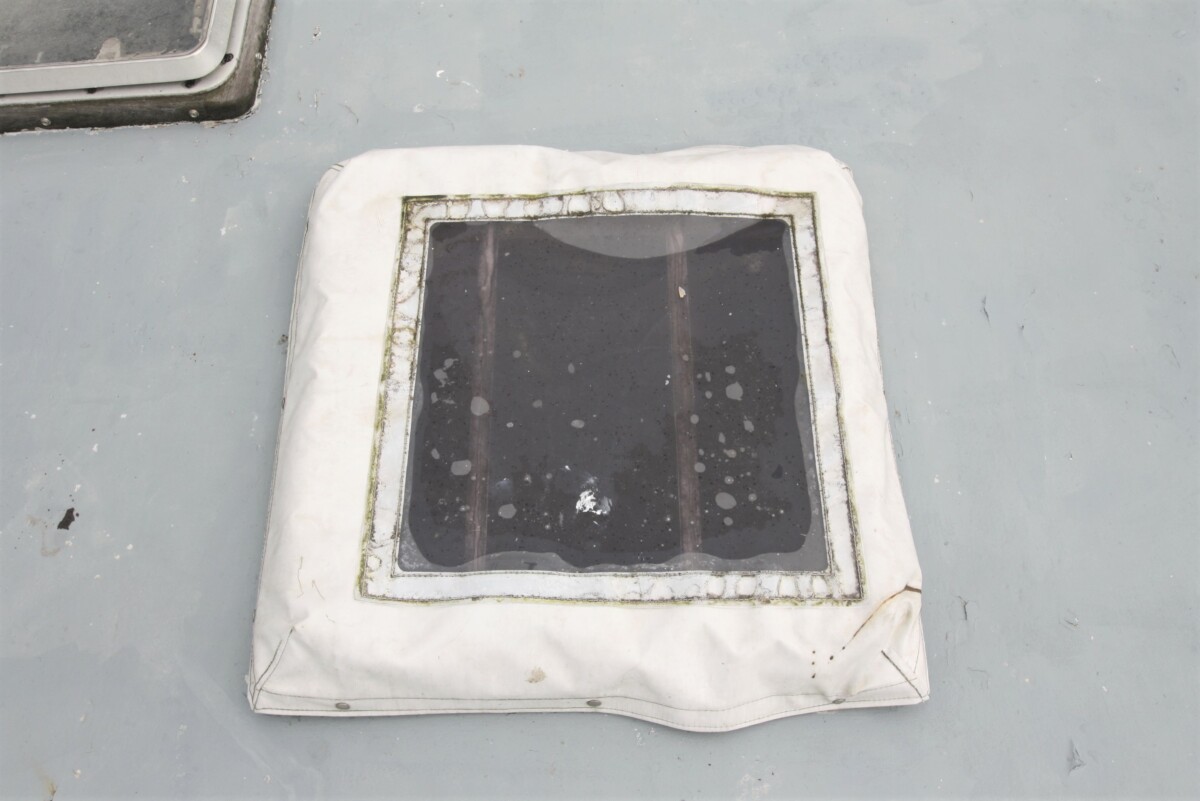

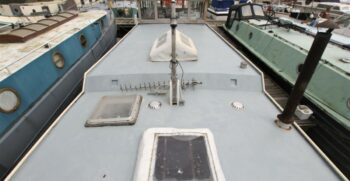

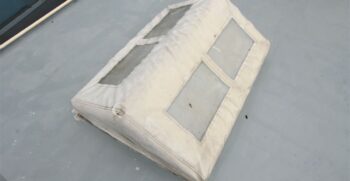

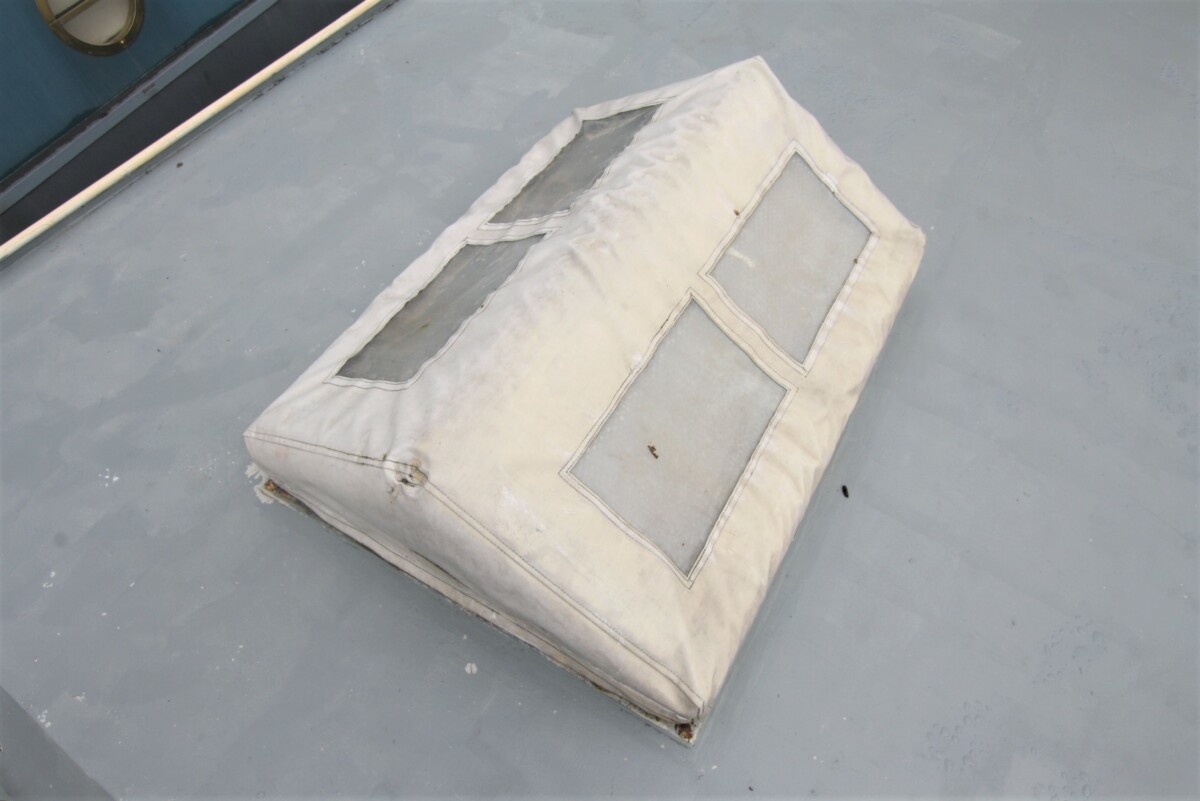

Glazed wooden Hatch to saloon & with white vinyl cover fitted.

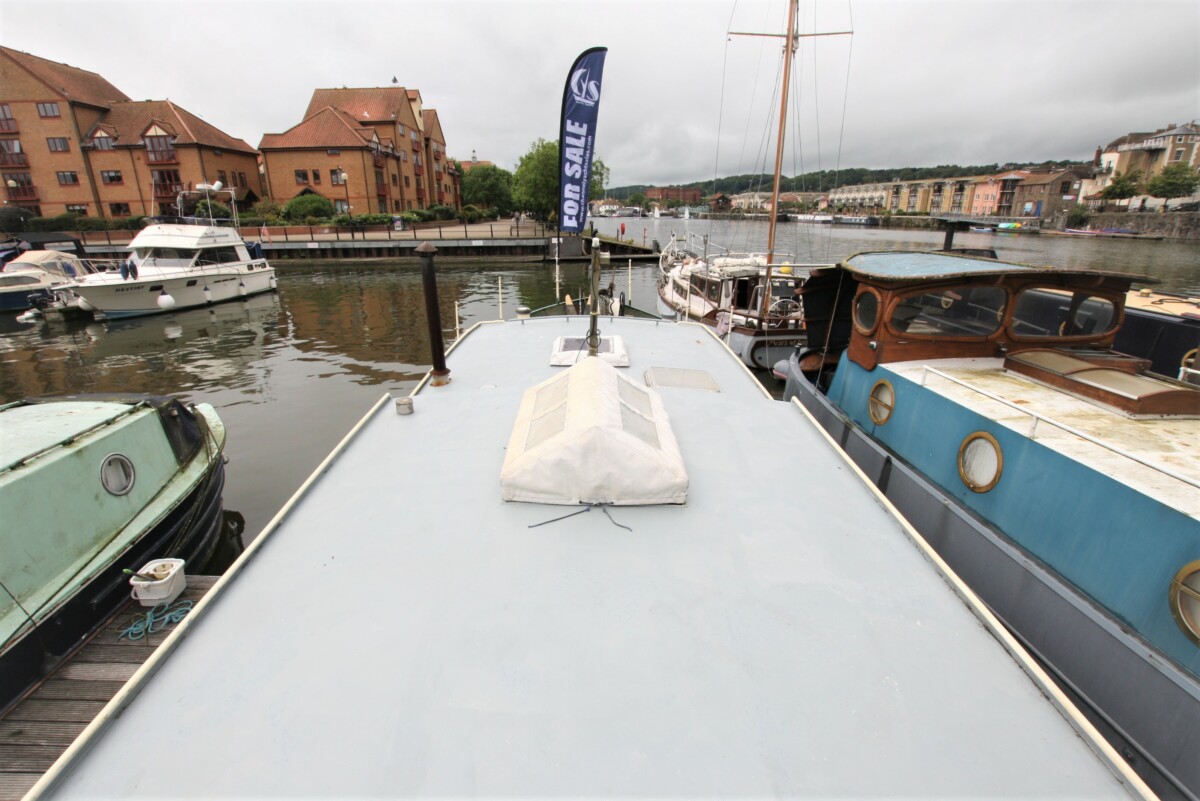

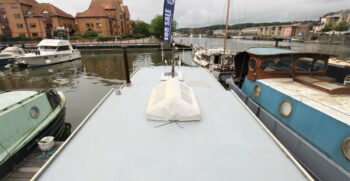

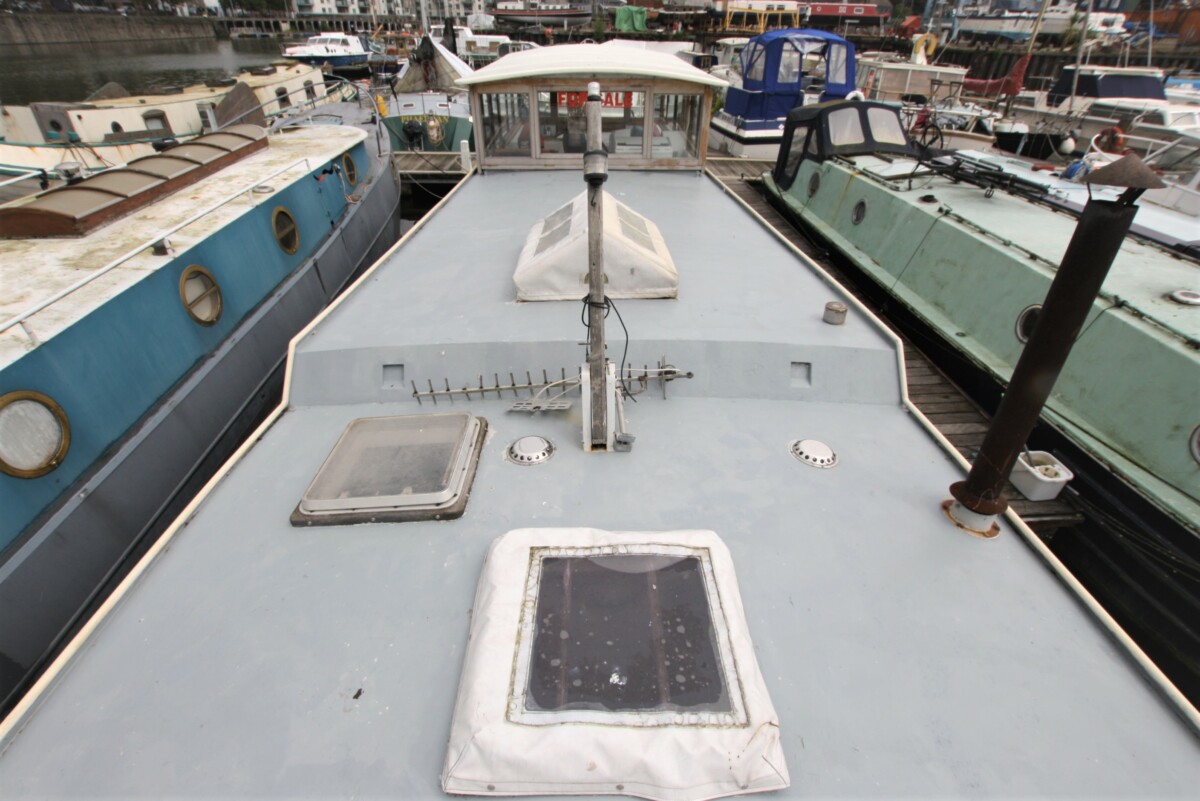

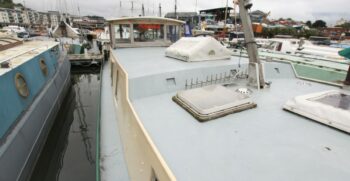

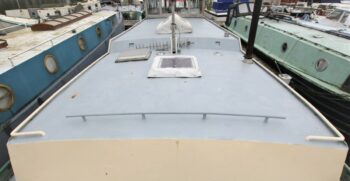

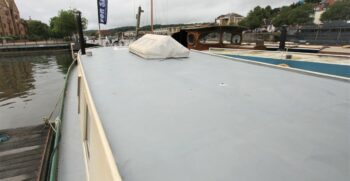

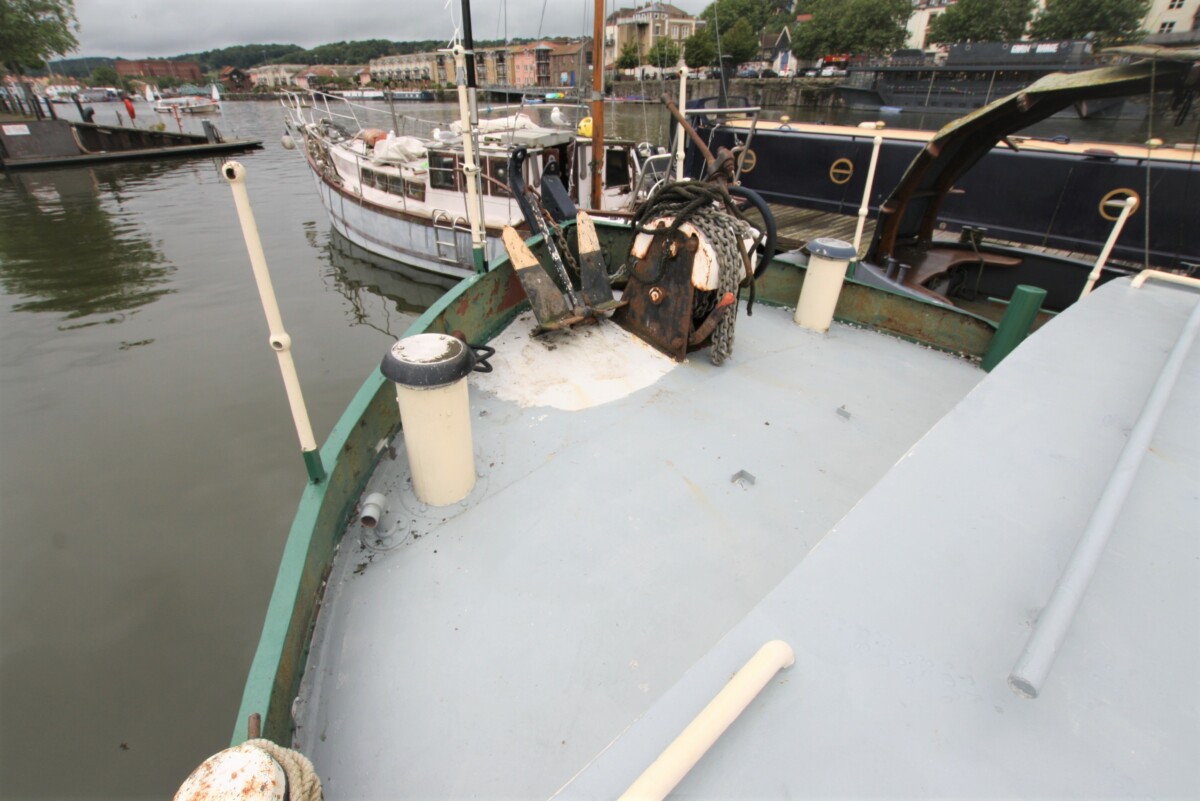

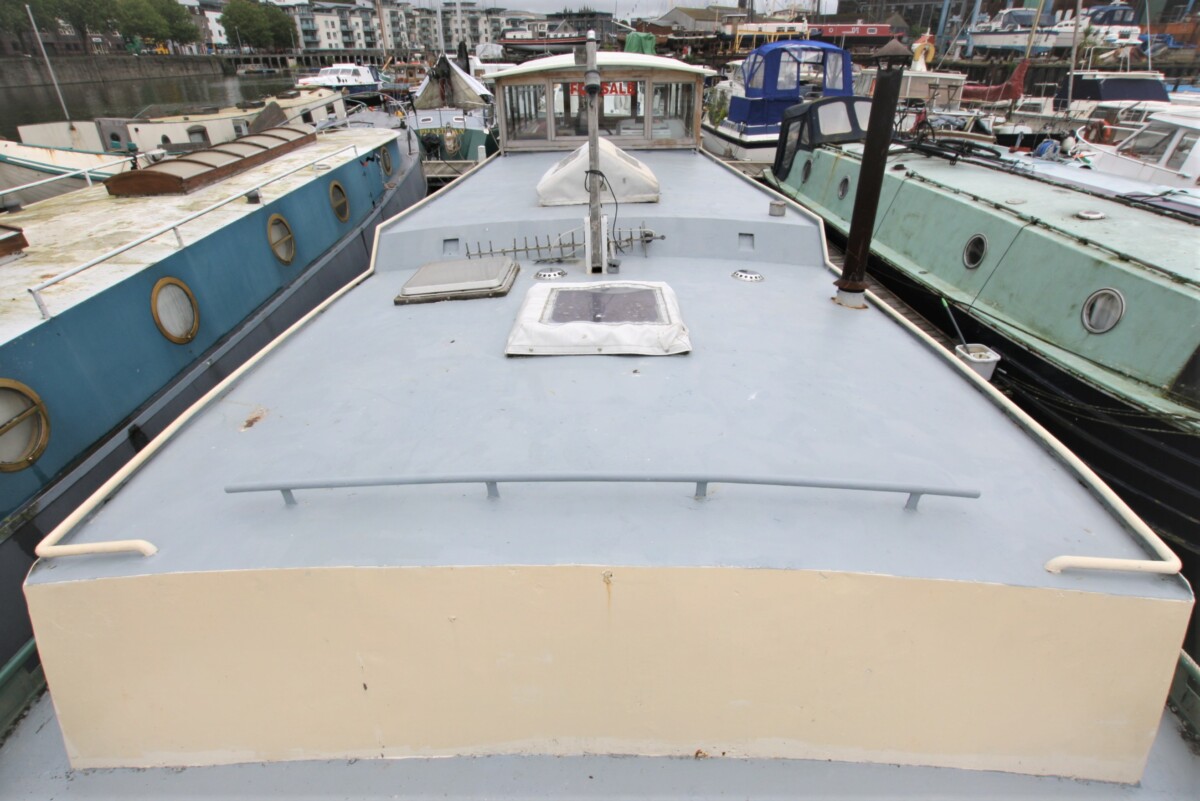

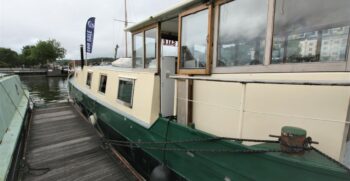

Non-slip grey deck paint to all relevant areas.

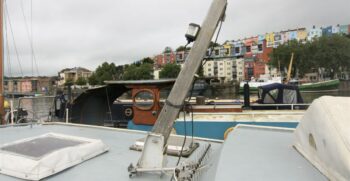

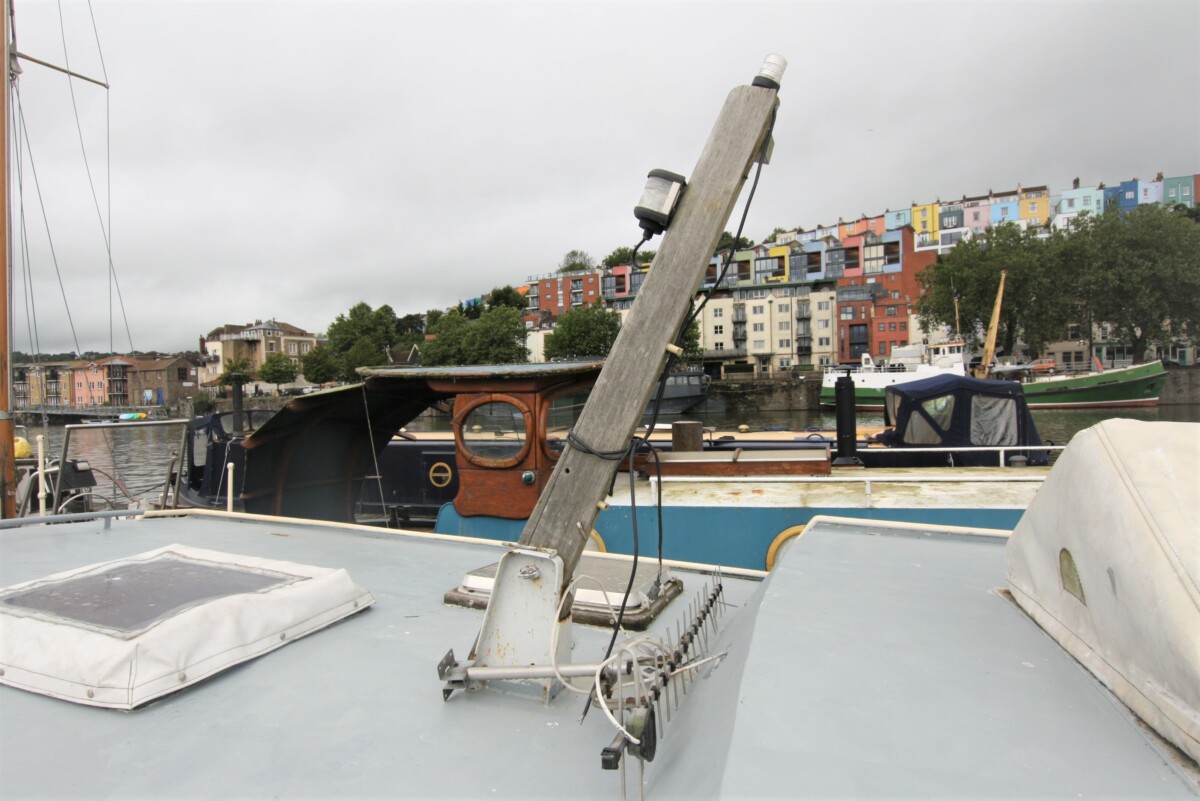

Tabernacle to receive wooden mast with steaming light & anchor light.
Hatch to wet room & master bedroom & again with white vinyl cover to the latter.
Solid staunchions fitted to foredeck raised bulwarks but without safety rail/cable fitted

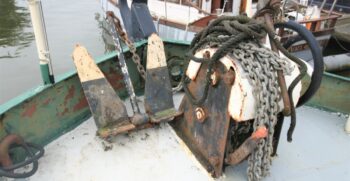

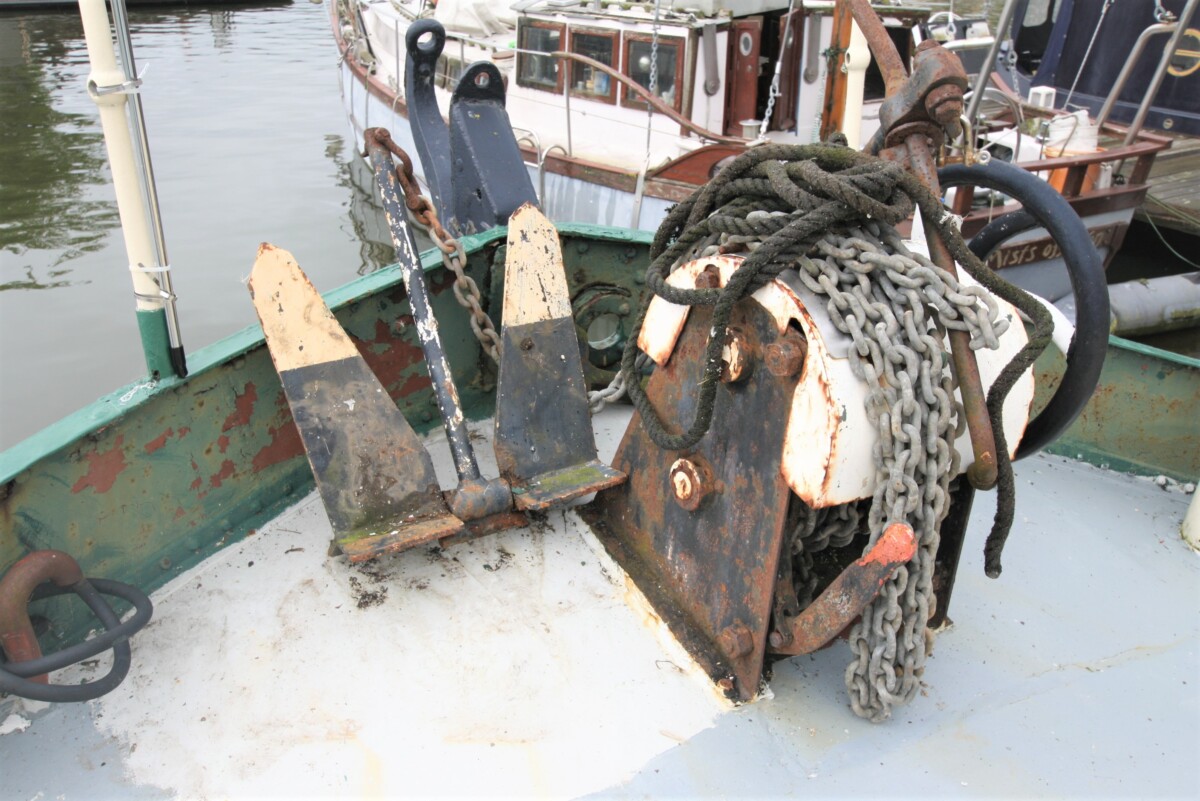

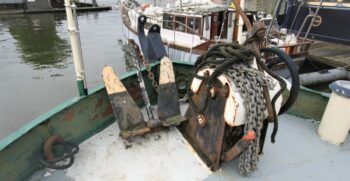

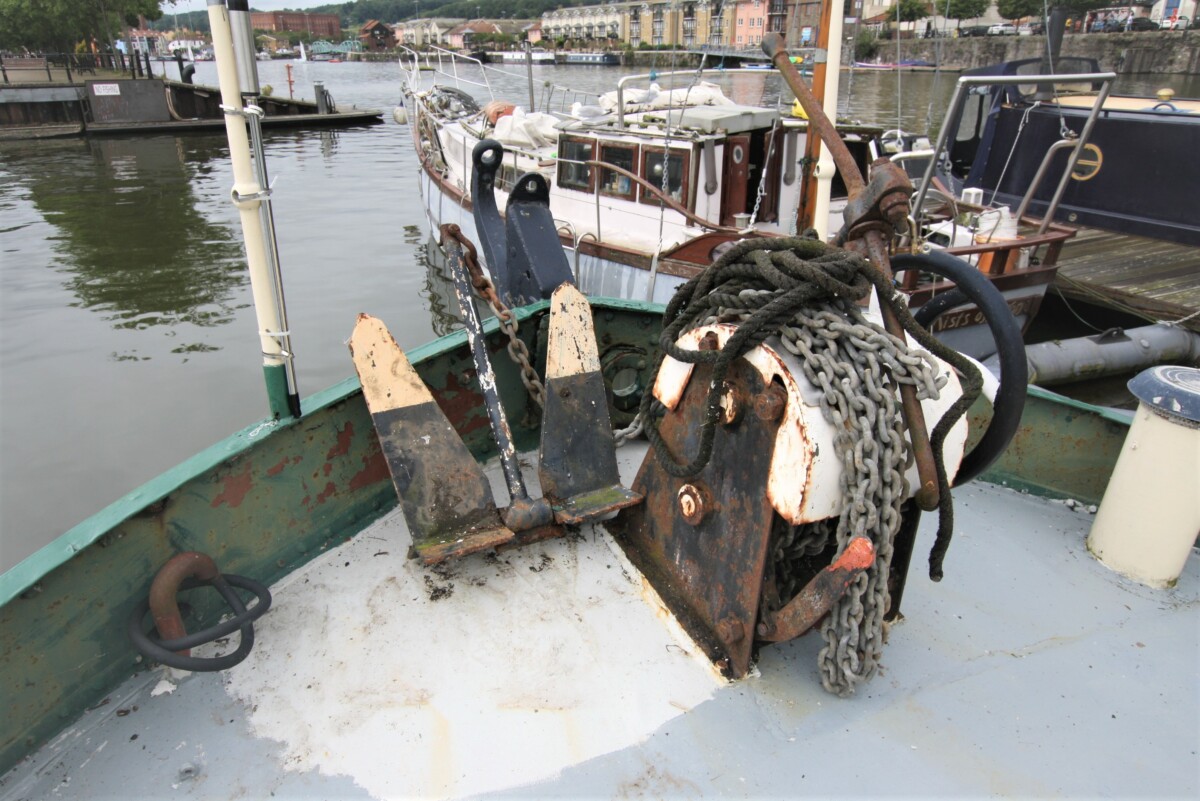

1 x French style “Fob” anchor approx 15kg with approx 10m 3/8 galvanised chain. Please note that we have not verified whether the chain has been seized/ made secure within the chain locker
1 x Fisherman style anchor approx 15kg

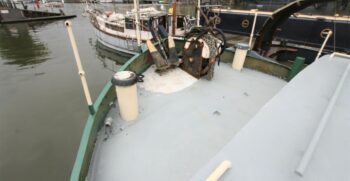

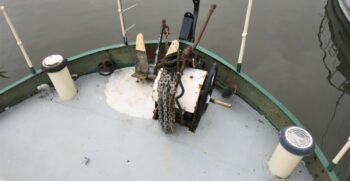

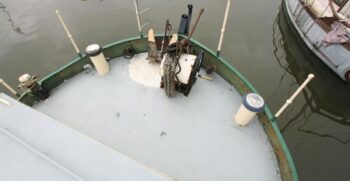

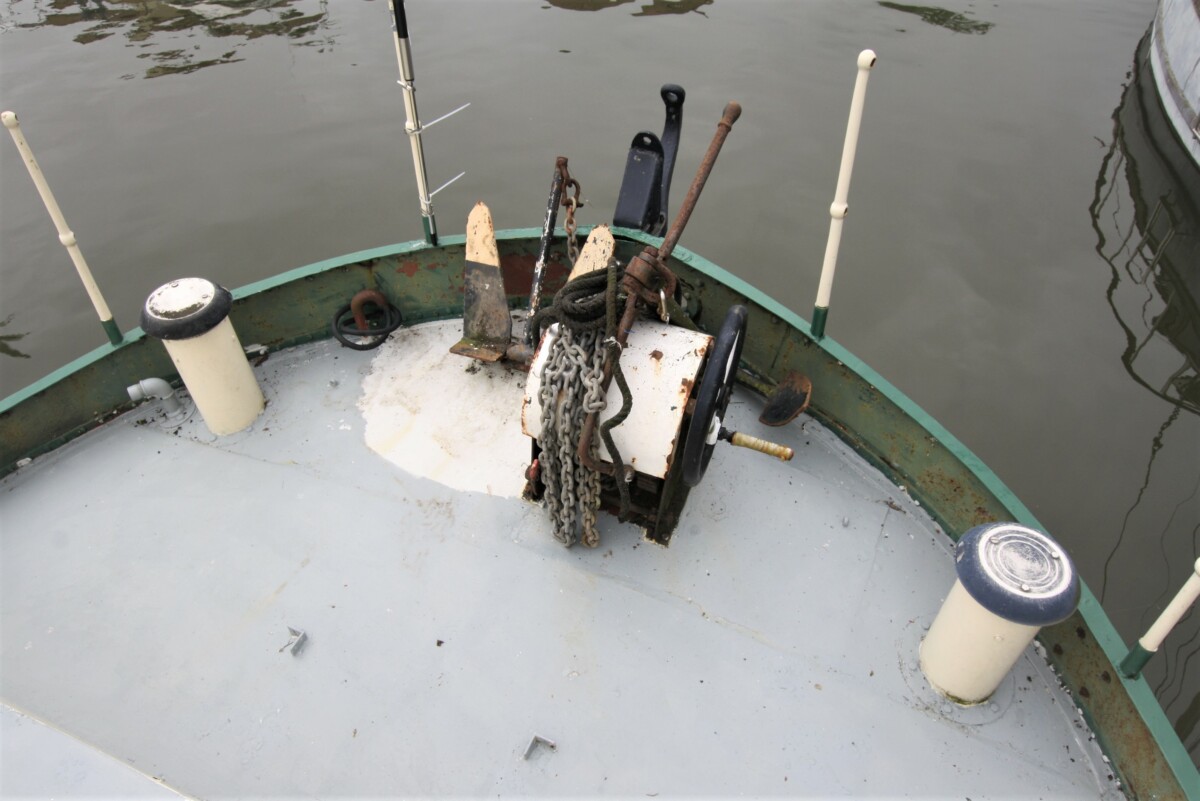

Manual anchor windlass with raising wheel & brake. It is noted that windlass is in need of an overhaul.

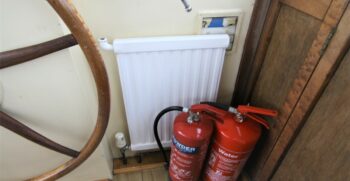

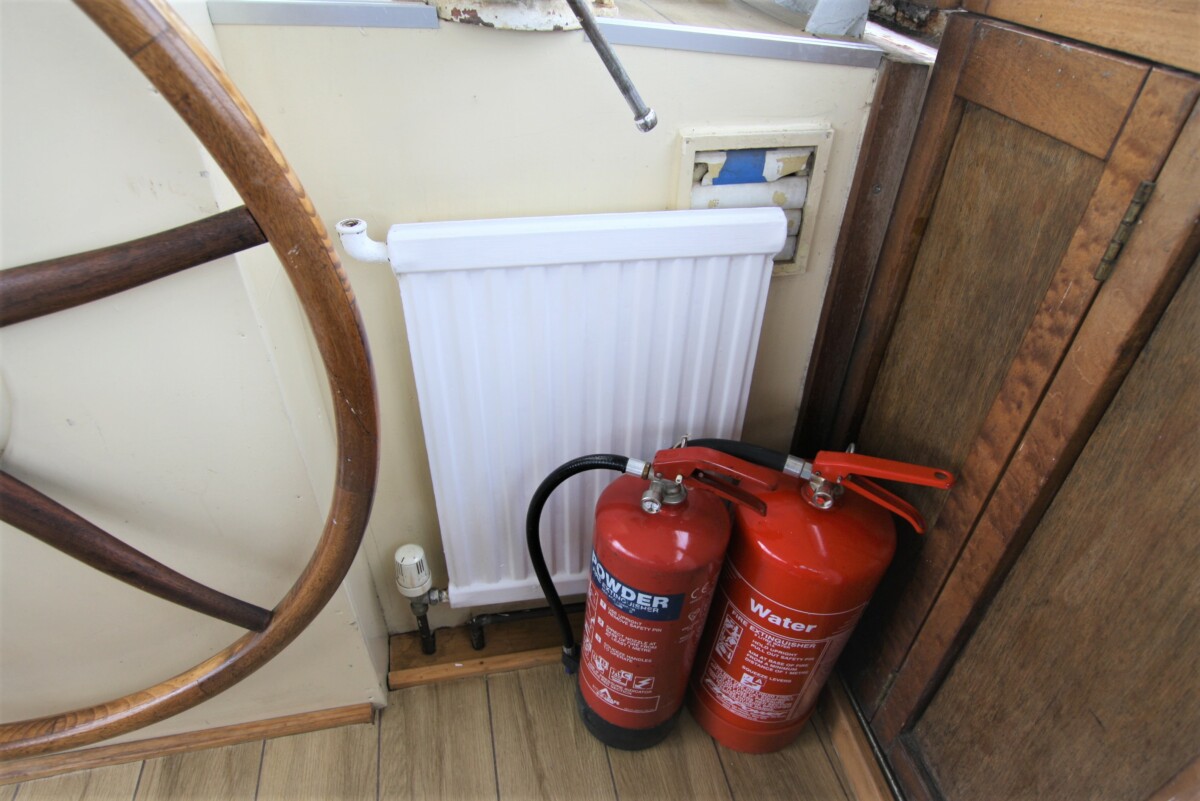

Safety / Fire fighting.
1 x 9litre /21A water fire extinguisher.
1 x 6kg ABC Dry powder.
1 x Nu swift Dry powder
1 x 1kg Powder
1 x fireblanket
“Josette” is a very pretty example of this desirable Barge. Her build offers space both inside & on deck & despite some may feel some modernising would cosmetically beneficial, she presently offers an immediately occupiable proposition. not forgetting she is very central to the vibrant City of Bristol. Possible part exchange considered.
