Yavanna – 40Ft Chas Harden Narrowboat
Dimensions.
Please note that all dimensions / measurements are approximate & no guarantee can be given.
Length: 40′ / 12.19m Length at Waterline:
Beam: 6’10” / 2.08m
Draft: 2’6” / 0.76m
Construction.
Built in approx 1998 by Chas Harden Boats. Originally constructed from mild steel plating to a good standard of build, her hull is a conventional all welded hull method with top sides and upper shell to a good standard of construction. Above her waterline she has a clean lined typical river / narrowboat hull shape that includes radius bow entry which is well fabricated. Aft she has a cruiser counter finish. Her hull under the waterline she is not as typical as she features a double chine to a narrow base plate and a slim swim created from a wedge counter.
- Please note this vessel was indeed recommended for previous plating work and ALL plating work has been carried out. This report can be seen by serious prospective buyers upon viewing the vessel. It can also be confirmed by CYS & a reputable surveyor that these works were carried out to a high standard.
- Engine block realigned and raised, new prop shaft fitted, new rear bearing fitted, stern gland repacked, shaft coupling tightened, exhaust heater hull coupling replaced, rudder re-housed and a full engine service carried out 7/23.
- As per surveyors recommendations weed hatch raised and made easily accessible 7/23.
- Diesel exhaust outlet refitted to be made easily accessible upon future engine servicing 07/22 & 23.
- Inspection hatch fitted to floor 07/22.
- New gas locker constructed 06/22.
- New cockpit steps fabricated 07/22.
- Engine bay cleaned back, Owitrol CIP applied (Two coats) & Red oxide applied (Two coats) 12/22.
- Bow locker cleaned back, Owitrol CIP applied (Two coats) & Red oxide applied (Two coats) 12/22.
- Hurricane diesel heater and radiators serviced 2023.
- Cooker serviced 2022.
- Water heater serviced 2022.
- Hull epoxy coated with Vinyguard Primer (Two Coats), SML CU-Pro Antifoul (Two Coats), Cosmetic pitting filled with epoxy primer 07/22.
- Rubbing strake to waterline Jotamastic grey primer (Two coats), Hardtop AX (Two coats) 07/22.
- Topside paint job, stripped back, filled, Vinyguard silver grey watertight primer (Two coats), SML Jotun Pilot Sage Green top coat (Three coats).
- Dacrocyte polyurethane gloss gunwhales (Black) 7/23.
- Canopy renovated / zip work (Bristol Sails) 08/22.
- All Caldwell window seals replaced 09/22.
BSC Valid until 21/04/2029 – BSSER-502992/25
Engine Bay.
Fitted with a turn key Thorneycroft 4 Cylinder Diesel. This is an extremely accessible, maintainable and well presented engine bay which has been lovingly maintained in the best possible way. Continuation of this by her new owner would be strongly recommended.
- Engine block realigned and raised, new prop shaft fitted, new rear bearing fitted, stern gland repacked, shaft coupling tightened, exhaust heater hull coupling replaced, rudder re-housed and a full engine service carried out 7/23.
- As per surveyors recommendations weed hatch raised and made easily accessible 7/23.
- Diesel exhaust outlet refitted to be made easily accessible upon future engine servicing 07/22 & 23.
- Engine bay cleaned back, Owitrol CIP applied (Two coats) & Red oxide applied (Two coats) 12/22.
12V, Mains Electrics & Heating.
Various 240 / mains double sockets with USB charging throughout, Contra water heater, Heatmiser thermostat, Invertor & Galvanic isolator fitted, 8 gang switch panel located behind stern door, Hurricane heater supplying 1x single radiator to starboard saloon, 2x double radiators to starboard hall & cabin. Charlton & Jenrick wood burner fitted (which is an absolute work of art & complies with all new BSC rules!)
Galley.

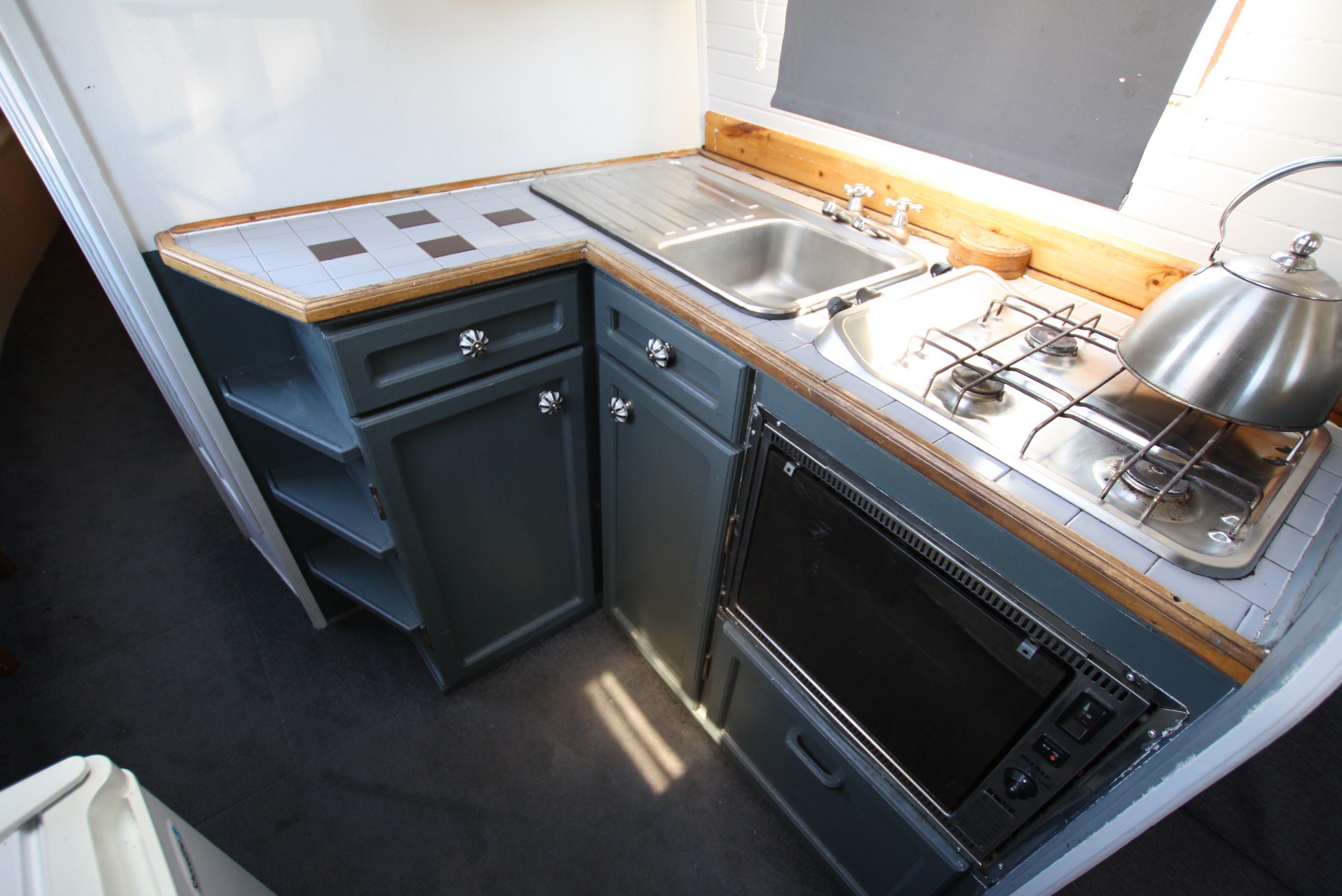

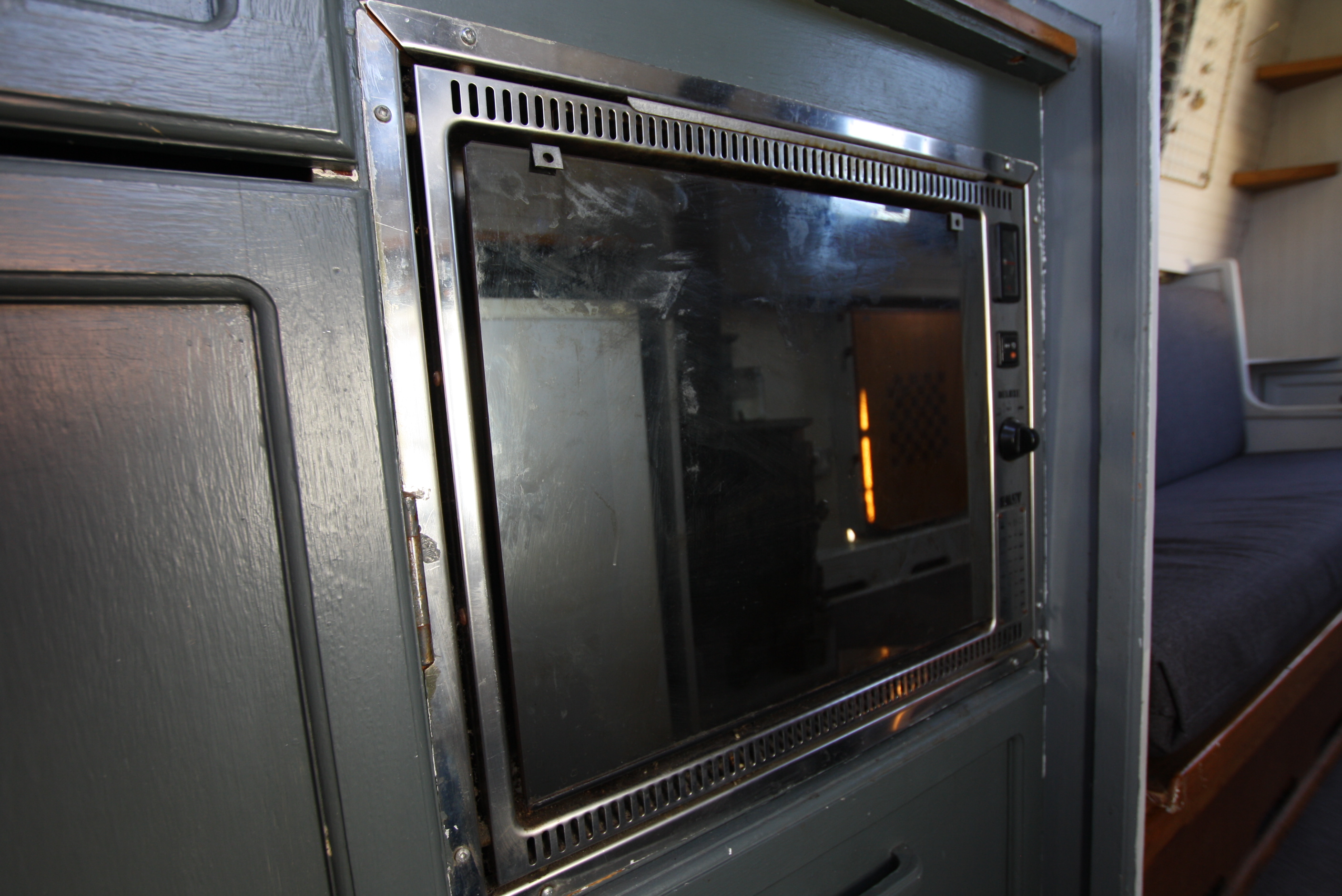

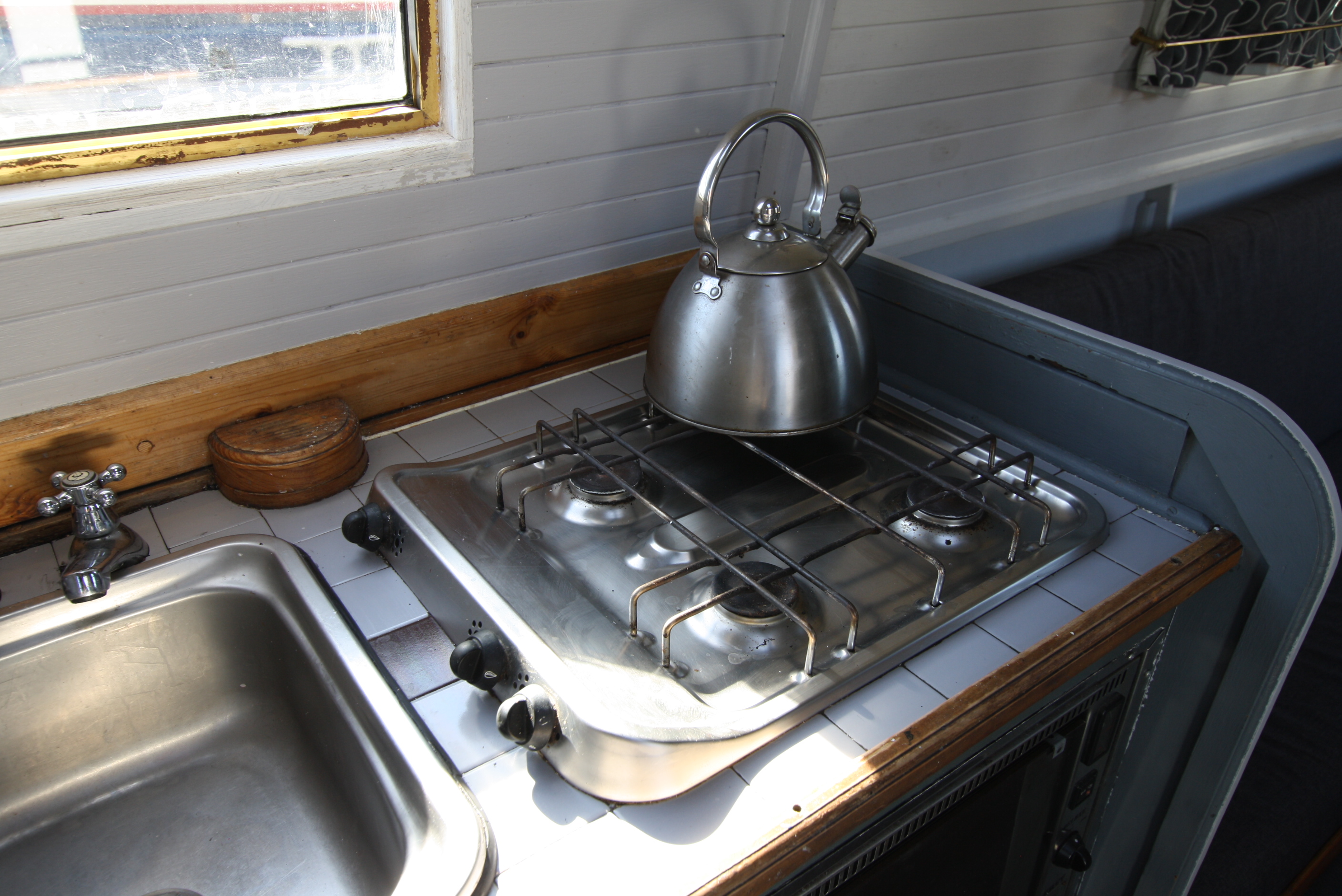

A very thoughtfully laid out Galley sits mainly to her port side. Oak worktop with a belfast sink and brushed stainless steel mixer tap. Various drawers and cupboards to port and a built in (lovely!) pull out extra work surface. Again in line with the fantastic use of space throughout the boat. A continuation of matching tiles from her stove area surround the worktops for added protection and also surround the 4 burner gas hob. Oven & Grill below. Two hanging rails along with shelf storage surround her galley to port also. Fitted to starboard is a very cleverly thought out additional storage & prep area (Which also lines up with her sliding window for a fantastic breakfast spot!) which can be folded down when not in use. As photographed two deep shelves below and additional drawers.
Saloon.

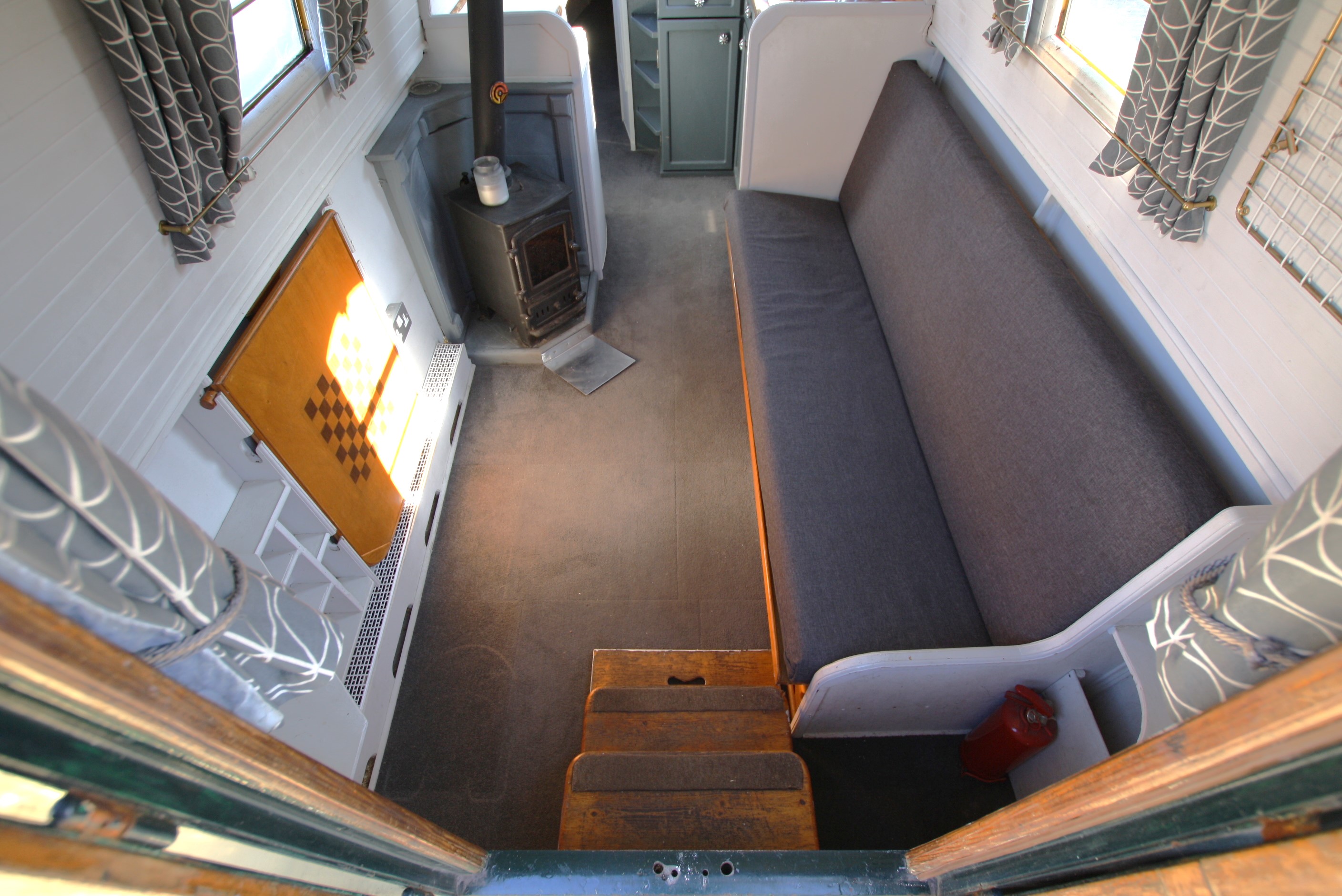

Stepping down into her very bright and airy saloon you are immediately drawn to the beautiful wood burner which really is stunning. To port is a fold out foam based sateen futon in dark green, sateen is the ideal choice for such as it is so long lasting. With the added bonus that it fits perfectly under her gunwhale gaining extra floor space. Charlton & Jenrick wood burner fitted to starboard with decorative yet subtle tiles behind. Various shelving / picture ledges are placed strategically around so as not to minimise space, which is a lovely touch. Heating controls, thermometer, sockets and carbon monoxide alarm fitted to port.
Forward Cabin.
Featuring plenty of storage space throughout and a full size double bed she offers a very comfy nights sleep, with bow doors which open at stable or full height (great for pets) into her bow area also containing more storage space. Two hanging wardrobes (although one does indeed contain her water heater) and several built in shelves offer even more storage. Holding tank located to port under bed. Double rad and various shelving to starboard tucked away neatly under gunwhale.
Heads.
With all matching & high end fittings throughout the heads it only further compliments the rest of the vessel. A round ceramic wash hand basin with antique yet modern brass mixer tap, storage below. Stand in shower tray with a matching antique rainfall shower. Loo to port which gratefully faces the pièce de résistancence of her heads. The radiator! Handmade and beautifully done it finishes the heads off perfectly.
On Deck.
Fitted to her bows is a fantastic black vinyl with grey piping cratch cover which is in good condition. Regular cleaning and maintaining of this will ensure a long lifespan. Fitted to her stern is a foldable ‘wrap around’ matching black vinyl with grey piping canopy, this has the option to be used in full or to retain the enclosed stern for safety (perfect for those with children and pets!). Featuring bow and stern button fenders for those inevitable knocks and bumps along with inflatable fenders to port. Safety ring to roof. Grab rails to roof port & starboard. Flue for wood burner & outlet for water heater to roof. Welded boat hook holders to roof & wooden gang plank in situ.
Foredeck.
Safety / Fire fighting.
BSC Valid until 21/04/2029 – BSSER-502992/25
All relevant extinguishers, blankets and safety equipment is aboard.
Kiddie Carbon monoxide alarm Model:7CO
Brokers Remarks.
Channel Yacht Sales Ltd offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Please note that as the broker/agent, we cannot guarantee or warrant the serviceability of any safety equipment included within the inventory, including but not limited to the condition, operation, or service dates of such equipment. It is the responsibility of the buyer to thoroughly inspect and assess the condition of all safety equipment prior to purchase.
